Headlamp levelling
E00517400031
Headlamp levelling switch (ex-
cept for vehicles with discharge
headlamps)
E00517501677

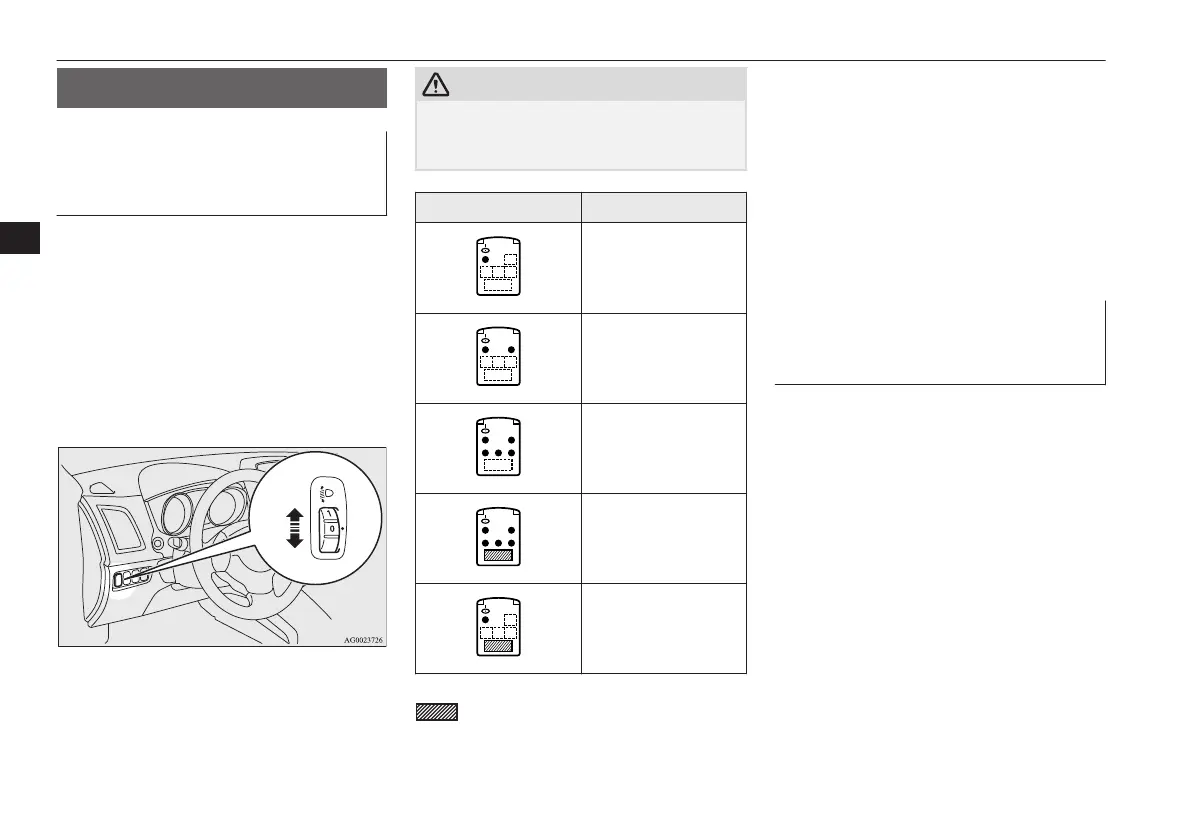

The angle of the headlamp beam varies de-
pending on the load carried by the vehicle.
The headlamp levelling switch can be used to
adjust the headlamp illumination distance
(when the lower beam is illuminated) so that
the headlamps’ glare does not distract other
drivers.
Set the switch according to the following ta-
ble.
CAUTION
l
Always perform adjustments before driving.
Do not attempt to adjust while driving, as it
could cause an accident.
Vehicle condition Switch position
“0”
“0”
“1”
“2”
“3”
●:1 person
:Full luggage loading
Switch position
0-
Driver only/Driver + 1
front passenger
Switch position
1-
5 passengers (including
driver)
Switch position
2-
5 passengers (including
driver) + Full luggage
loading
Switch position
3-
Driver + Full luggage
loading
Automatic headlamp levelling
(vehicles with discharge head-
lamps)
E00517600453
This mechanism automatically adjusts the di-
rection of the headlamps (beam position) de-
pending on changes in the condition of the
vehicle, such as the number of occupants or
luggage weight. When the headlamps are il-
luminated with the ignition switch or the op-
eration mode in ON, the beam position of the
headlamps is automatically adjusted when the
vehicle is stopped.
