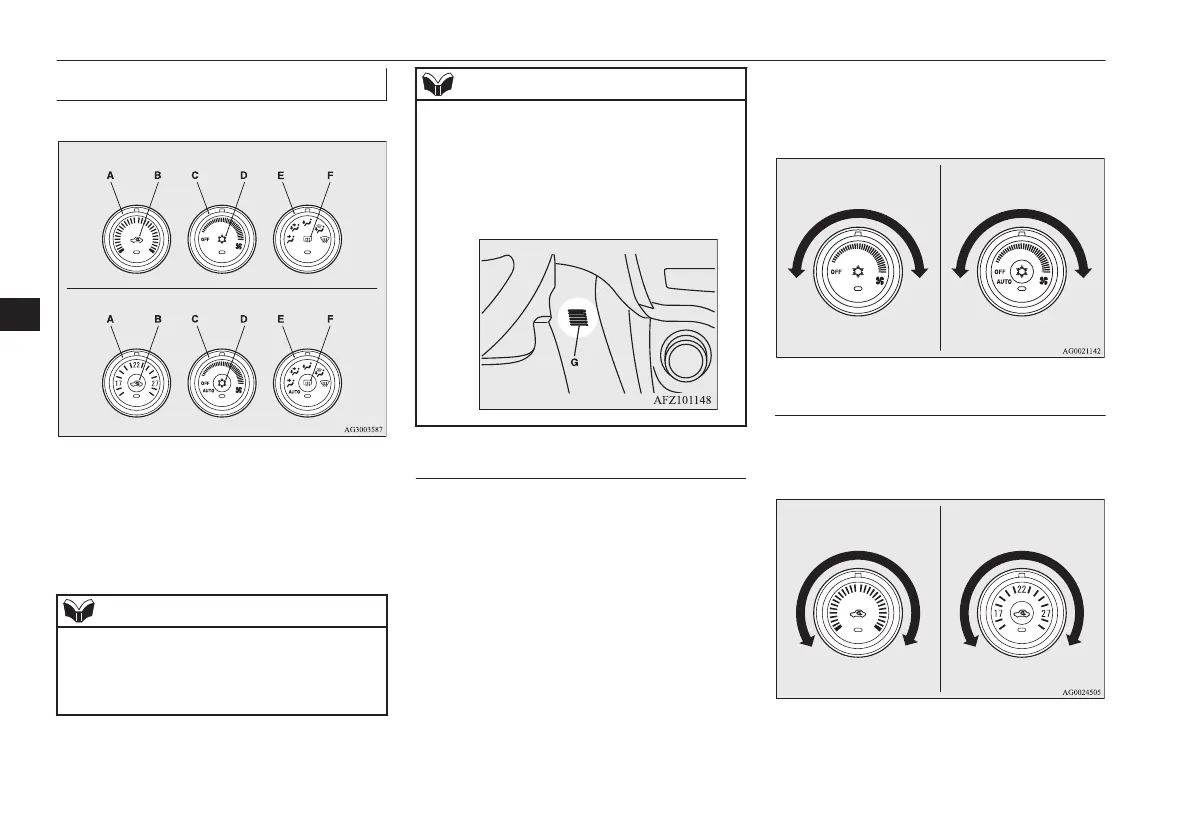

Control panel
E00700601678
Heater/Manual air conditioning
Automatic air conditioning
A- Temperature control dial
B- Air selection switch
C- Blower speed selection dial
D- Air conditioning switch
E- Mode selection dial
F- Rear window demister switch ® p. 5-63
NOTE
l
On vehicles with the heater, button (D) is
not available for use. The indicator below
the button doesn’t come on even if it is
pushed.
NOTE
l
On vehicles with automatic air conditioning,
there is an interior air temperature sensor
(G) in the illustrated position.
Never place anything over the sensor, since
doing so will prevent it from functioning
properly.
Blower speed selection dial
E00700700249
Select the blower speed by turning the blower
speed selection dial clockwise or anticlock-
wise.
Turn the dial clockwise to increase the air
flow and anticlockwise to decrease the air
flow.
Heater/
Manual air conditioning
Automatic air conditioning
Temperature control dial
E00700901453
Turn the temperature control dial clockwise
or anticlockwise.
Heater/
Manual air conditioning
Automatic air conditioning
Heater/Air conditioning
7-04
OGAE15E5
