NOTE
l
If the wiring harness is pulled off the 2 har-
ness guides on the lamp unit while replacing
the bulb, make sure to secure the wiring har-
ness to the harness guides.
l
When installing the lamp unit, first insert the
tab (C) into the groove (D) on the body, and
then push on the lamp unit to fit it into place.

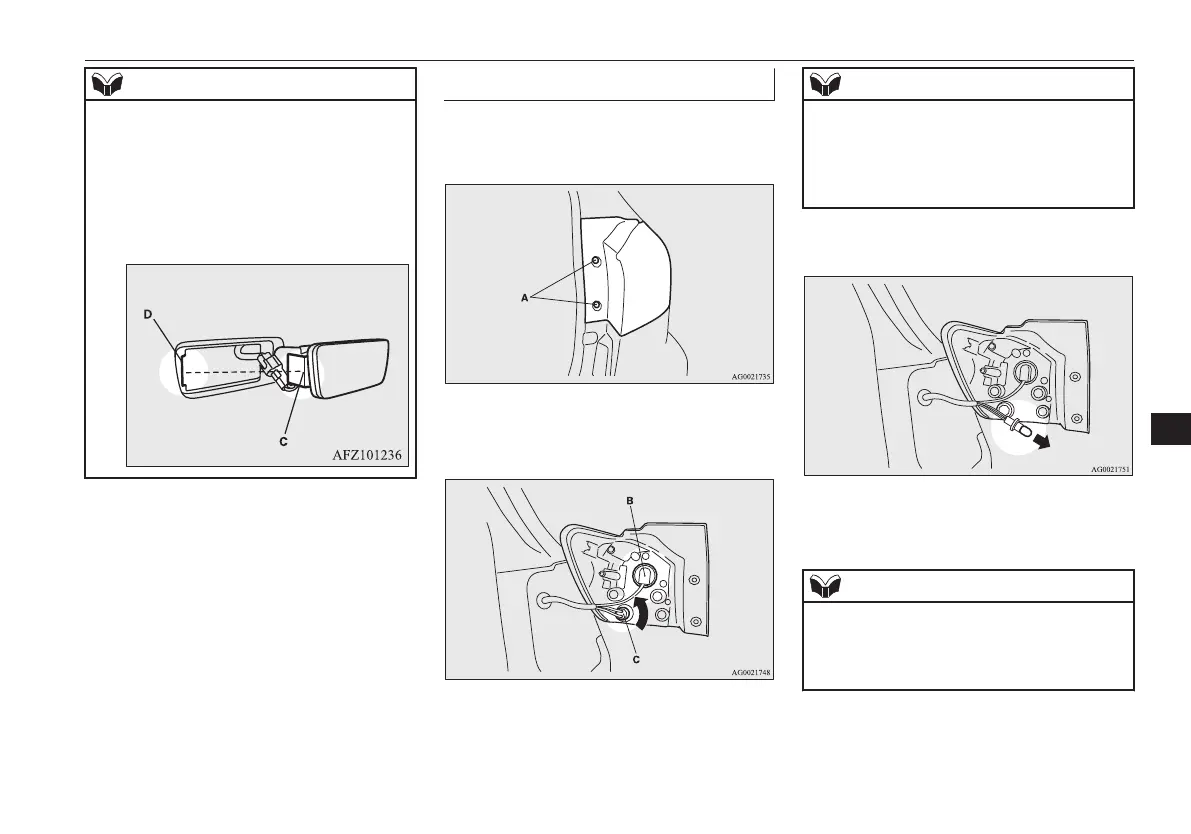

Rear combination lamps
E01004201366
1. Remove the screws (A) that hold the
lamp unit and remove the lamp unit.
2. Turn the socket and bulb assembly anti-
clockwise to remove it.
B- Stop and tail lamp (LED) - cannot be
replaced
C- Rear turn-signal lamp
NOTE
l
An LED, not a bulb, is used in the stop
lamp/tail lamp.
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for
repair or replacement.
3. Pull the bulb out of the socket.
4.
To install the bulb, perform the removal
steps in reverse.
NOTE
l
When mounting the lamp unit, align the
groove (D) on the lamp unit with the clip on
the body and the pin (E) on the unit with the
hole in the body.
Replacement of lamp bulbs
10-35
OGAE15E5
Maintenance
10
