Page #390 background imageLoading...
Page #390 background image
2. Install the upper cover.
For information regarding how to install
the upper cover, refer to “Removing and
installing the upper cover and duct” on
page 10-10.
Side turn-signal lamps (on
fender)*
E01003900516
NOTE
l
For the side turn-signal lamps (on fender), it
is not possible to repair or replace just the
bulb.
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for
repair or replacement.
Side turn-signal lamps (on out-
side rear-view mirror)*
E01003900529
NOTE
l
An LED, not a bulb, is used in the side turn-
signal lamps (on outside rear-view mirror).
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for
repair or replacement.

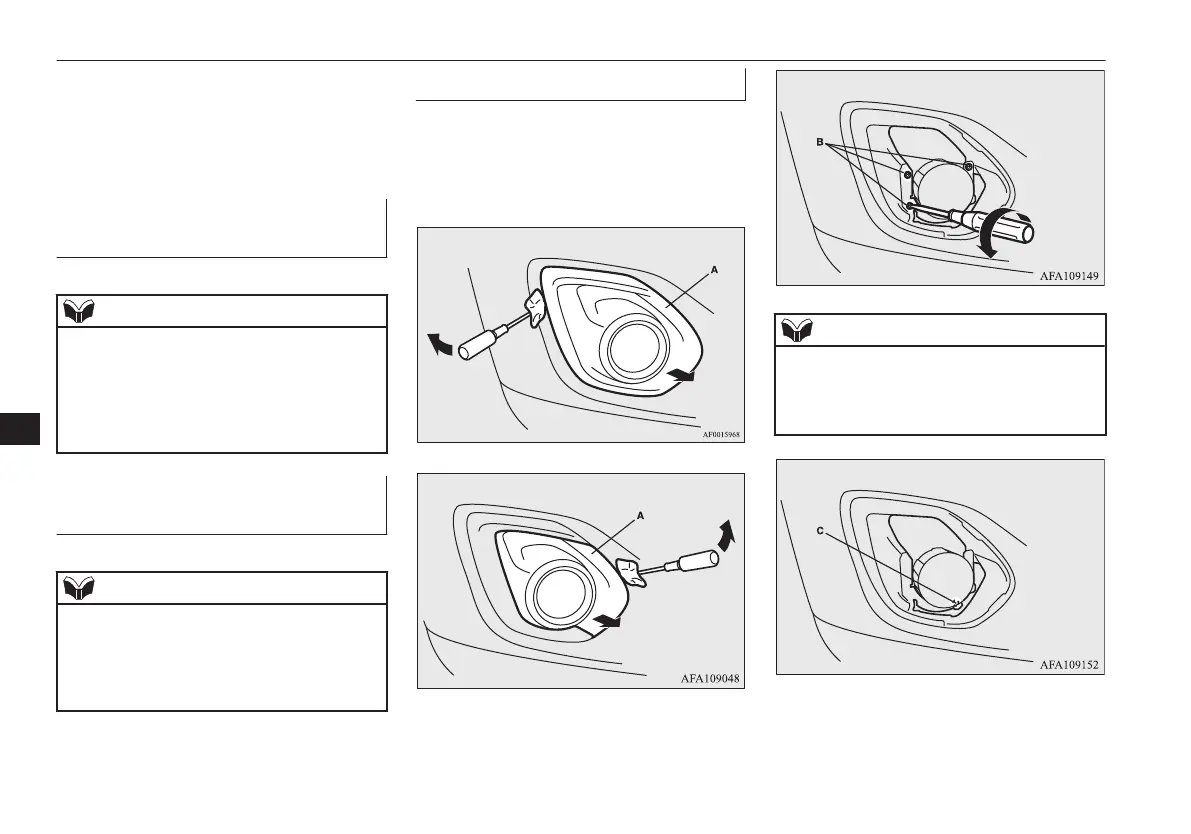

Front fog lamps*
E01004002941
1. Insert a straight blade (or minus) screw-
driver with a cloth over its tip into the
fog lamp cover (A) and pry gently to re-
move it.
Type 1
Type 2
2. Remove the screws (B), and remove the
lamp unit.
NOTE
l
Except for vehicles equipped with daytime
running lamps, when unfastening the screws,
be careful not to move the beam position ad-
justment screw (C).
Replacement of lamp bulbs
10-32
OGAE15E5
Maintenance
10
