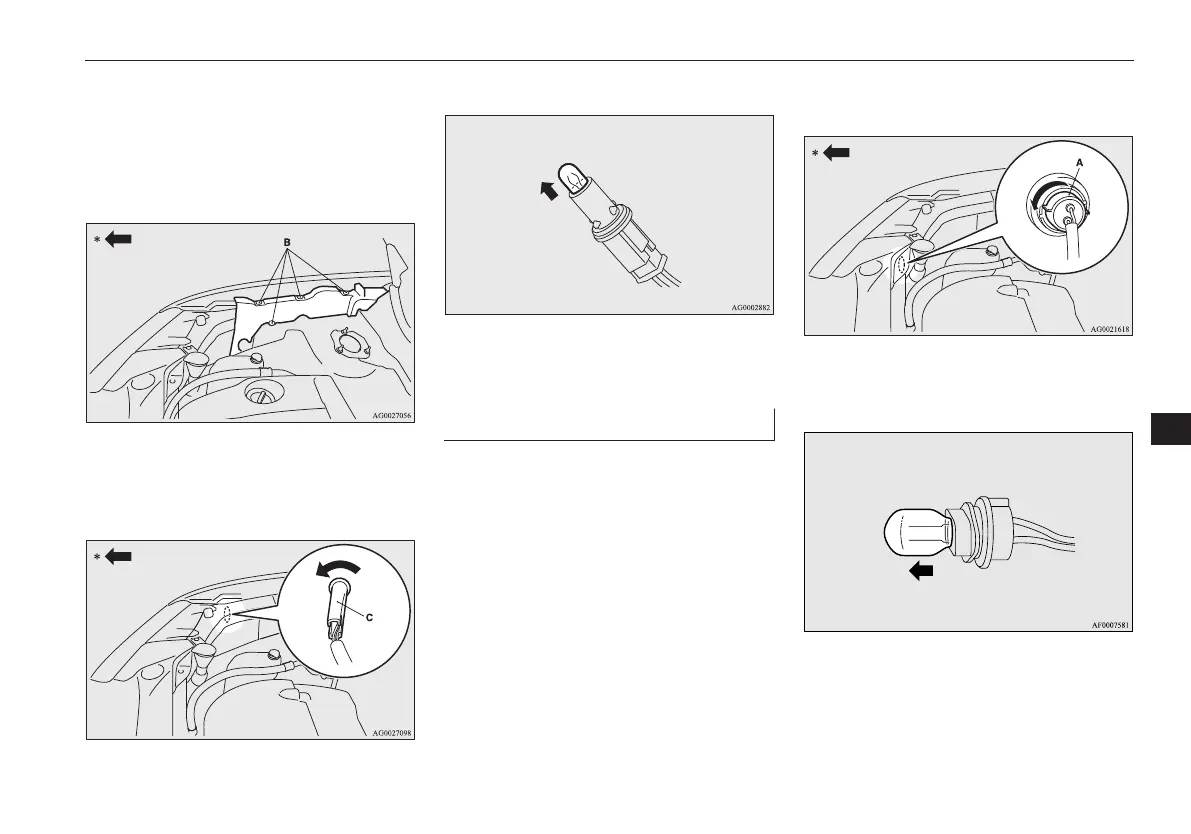

2. When replacing the bulb on the right
side of the vehicle in the case of diesel-
powered vehicles, remove the clips (B)
by prying with a straight blade (or mi-
nus) screwdriver, and remove the side
cover.
*: Front of the vehicle
3. Turn the socket (C) anticlockwise to re-
move it.
*: Front of the vehicle
4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal
steps in reverse.
Front turn-signal lamps
E01003800922
To remove
1. Remove the upper cover.
For information regarding how to re-
move the upper cover, refer to “Remov-
ing and installing the upper cover and
duct” on page 10-10.
2. Remove the entire socket and bulb as-
sembly (A) by turning it anticlockwise.
*: Front of the vehicle
3. Remove the bulb by pulling it out.
To install
1. To install the bulb, perform the removal
steps in reverse.
Replacement of lamp bulbs
10-31
OGAE15E5
Maintenance
10
