Headlamps (low beam, except
for vehicles with high intensity
discharge headlamps)
E01009301522

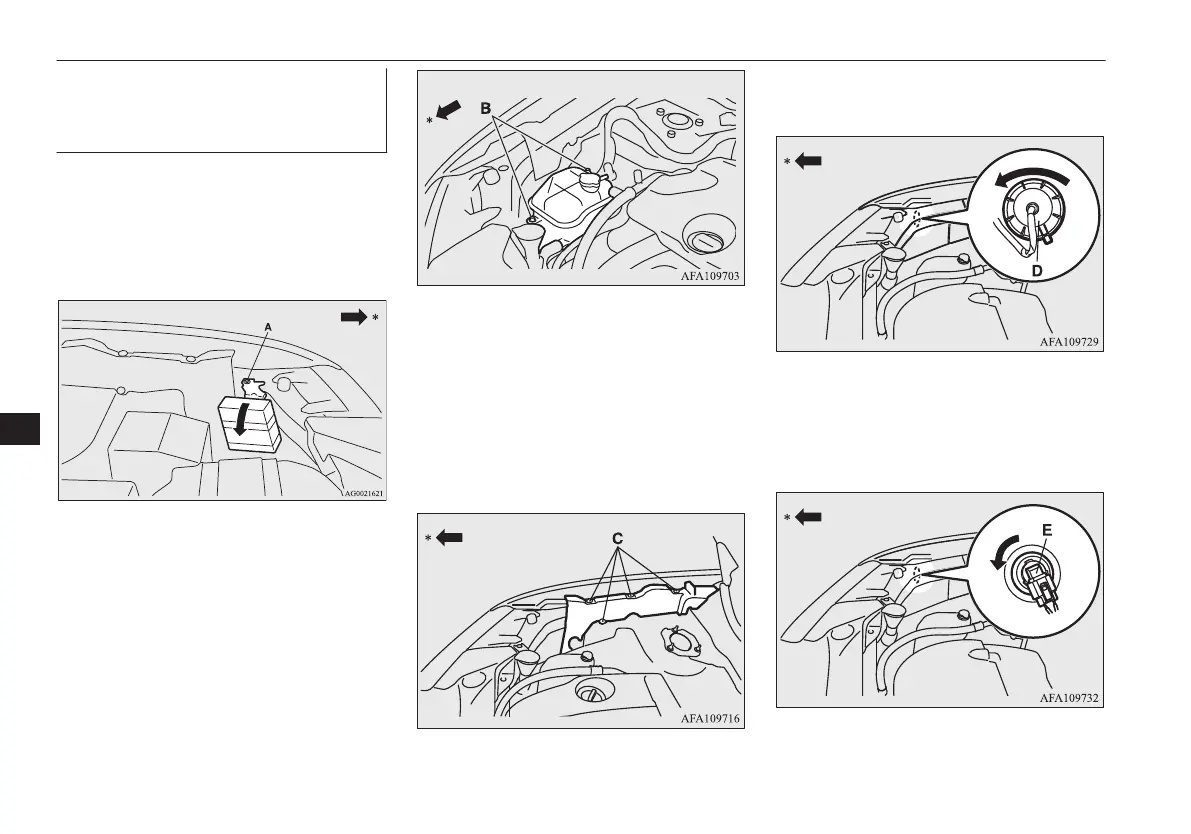

1. When replacing the bulb on the left side
of the vehicle in the case of diesel-pow-
ered vehicles, remove the bolt (A) hold-
ing down the relay box and move the re-
lay box towards the rear of the vehicle.
*: Front of the vehicle
2. When replacing the bulb on the right
side of the vehicle in the case of diesel-
powered vehicles (1600 models only),
remove the bolts (B), and then move the
reserve tank.
*: Front of the vehicle
3. When replacing the bulb on the right
side of the vehicle in the case of diesel-
powered vehicles, remove the clips (C)
by prying with a straight blade (or mi-
nus) screwdriver, and remove the side
cover.
*: Front of the vehicle
4. Turn the cap (D) anticlockwise to re-
move it.
*: Front of the vehicle
5. Turn the bulb (E) anticlockwise to re-
move it.
*: Front of the vehicle
Replacement of lamp bulbs
