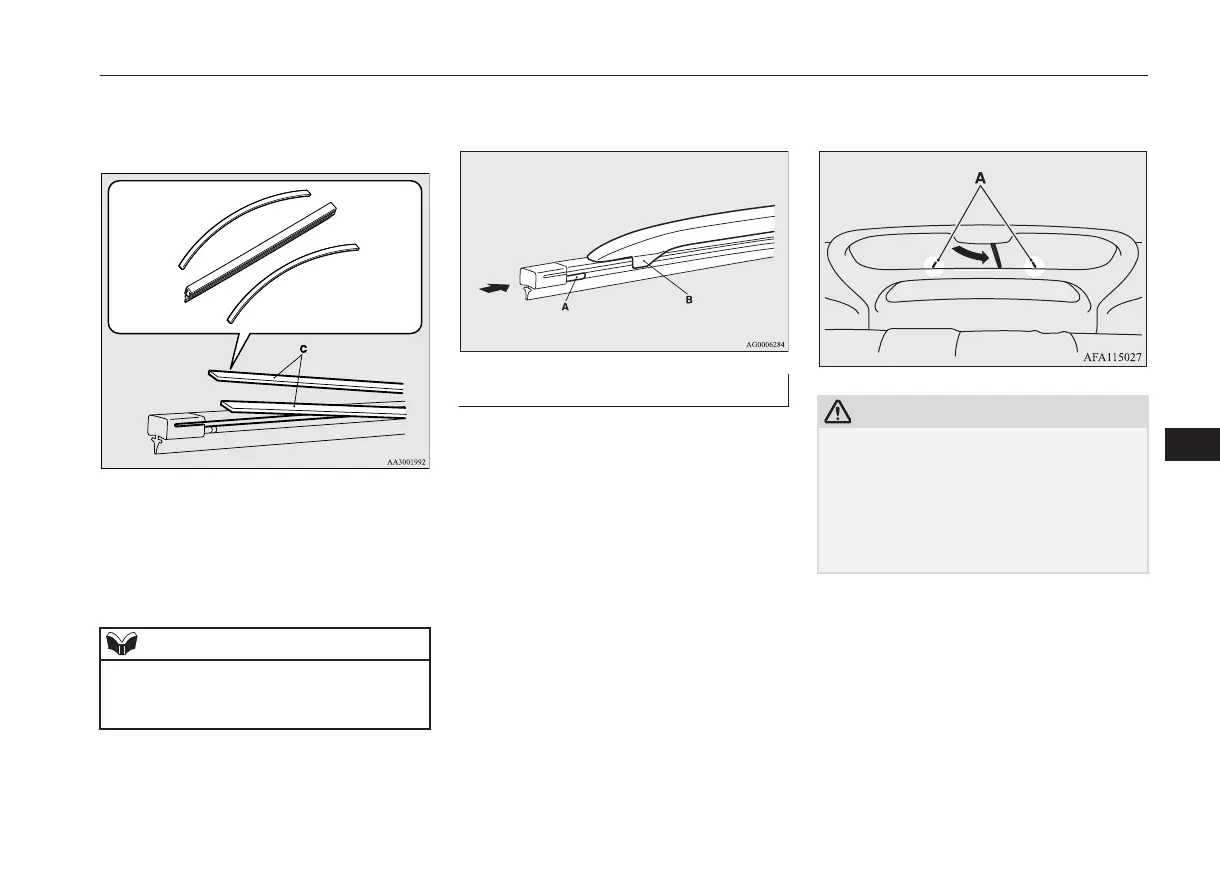

Refer to the illustration to ensure that the
retainers are correctly aligned as you at-
tach them.
4. Insert the wiper blade into the arm, start-
ing with the opposite end of the blade
from the stopper. Make sure the hook
(B) is fitted correctly in the grooves in
the blade.
NOTE
l
If a retainer is not supplied with the new
wiper blade, use the retainer from the old
blade.
5. Push the wiper blade until the hook (B)
engages securely with the stopper (A).
Rear window wiper blade
1. Turn the ignition switch to the “ACC”
position or put the operation mode in
ON.
2. Operate the rear wiper using the rear
window wiper and washer switch, and
when the rear wiper is within the mark
(A) on the rear window, turn the ignition
switch to the “LOCK” position, or put
the operation mode in OFF.
Refer to “Rear window wiper and wash-
er” on page 5-70
CAUTION
l
If the rear wiper is not stopped within the
mark (A), the wiper arm will contact the
roof spoiler and you will not be able to lift
the wiper arm. If you forcefully try to lift the
wiper arm, the wiper arm and roof spoiler
could be damaged or the painted surfaces
could be scratched.
3. Set the rear window wiper and washer
switch to OFF.
4. Lift the wiper arm off the window glass.
5. Pull the wiper blade downward to disen-
gage it from the stopper (B) at the end of
the wiper arm. Pull the wiper blade fur-
ther to remove it.
6. Slide a new wiper blade through the
hook (C) on the wiper arm.
Wiper blade rubber replacement
10-15
OGKE18E1
Maintenance
10
