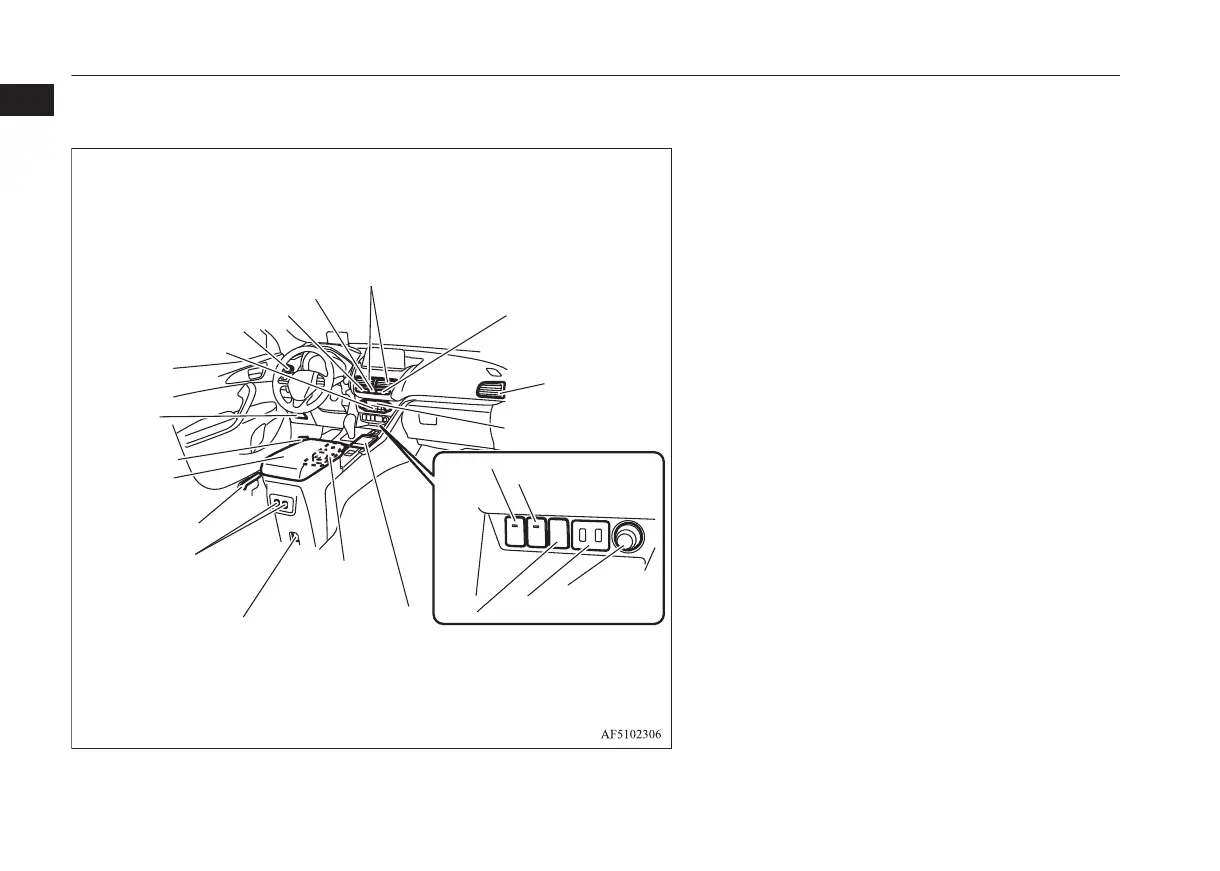

1. Rear window demister switch p. 5-71
2. Side ventilators p. 7-02
3. Seat belt reminder (for the front passenger and rear seat) p. 4-10
4. Hazard warning flasher switch p. 5-64
5. Centre ventilators p. 7-02
6. Front passenger’s airbag indicator p. 4-28
Security alarm indicator p. 3-23
7. Side ventilators p. 7-02
8. Air conditioning p. 7-05, 7-10
9. Heated steering wheel switch* p. 5-73
10. Heated windscreen switch* p. 5-72
11. Accessory socket p. 7-82
12. USB input terminal p. 7-78
13. ECO mode switch p. 5-65
14. Touchpad controller* [refer to the separate owner’s manual.]
15. Front drink holder p. 7-86
Ashtray* p. 7-81
16. Accessory socket p. 7-82
17. Heated seat switches (rear seats)* p. 4-04
18. Fuel tank filler door release lever p. 2-03
19. Floor console box p. 7-86
Armrest* p. 4-03
20. Bonnet release lever p. 10-03
21. Fuse block p. 10-17
