Mitsubishi FX0-14 User Manual

WWW.NNC.IR
3.5
Direct mounting
Direkte Montage
Montaje directo
Montage direct
Montaggio diretto
ENG FRE
GER
ITL
ESP
Unit Unité Unit Unità Unidad
A
FX
0N
-24M
✰
: 120+/-0.2 mm(4.72 +/- 0.008 inches)
FX
0N
-40M
✰
, FX
0N
-40E
✰
: 140+/- 0.2 mm(5.51 +/- 0.008 inches)
FX
0N
-60M
✰
, 40MR-UA1/UL : 175+/- 0.2 mm(6.89 +/- 0.008 inches)
E
FX
0N
-8EX-ES/UL, FX
0N
-8EX-UA1/UL,
FX
0N
-8EYR-ES/UL, FX
0N
-8EYT-ESS/UL, FX
0N
-8ER-ES/UL,
FX
0N
-3A, FX
0N
-16NT,
FX
0N
-232ADP, FX
0N
-485ADP : 39 mm(1.54 inches)
F
FX
0N
-16EX-ES/UL, FX
0N
-16EYR-ES/UL,
FX
0N
-16EYT-ESS/UL : 60+/-0.2 mm(2.36 +/- 0.008 inches)
FX0-14
92.5 (3.75)
122.5 (4.82)
162.5 (6.40)
FX0-
20
FX0-30
mm (inches)
53 (2.09)
M4(0.16)

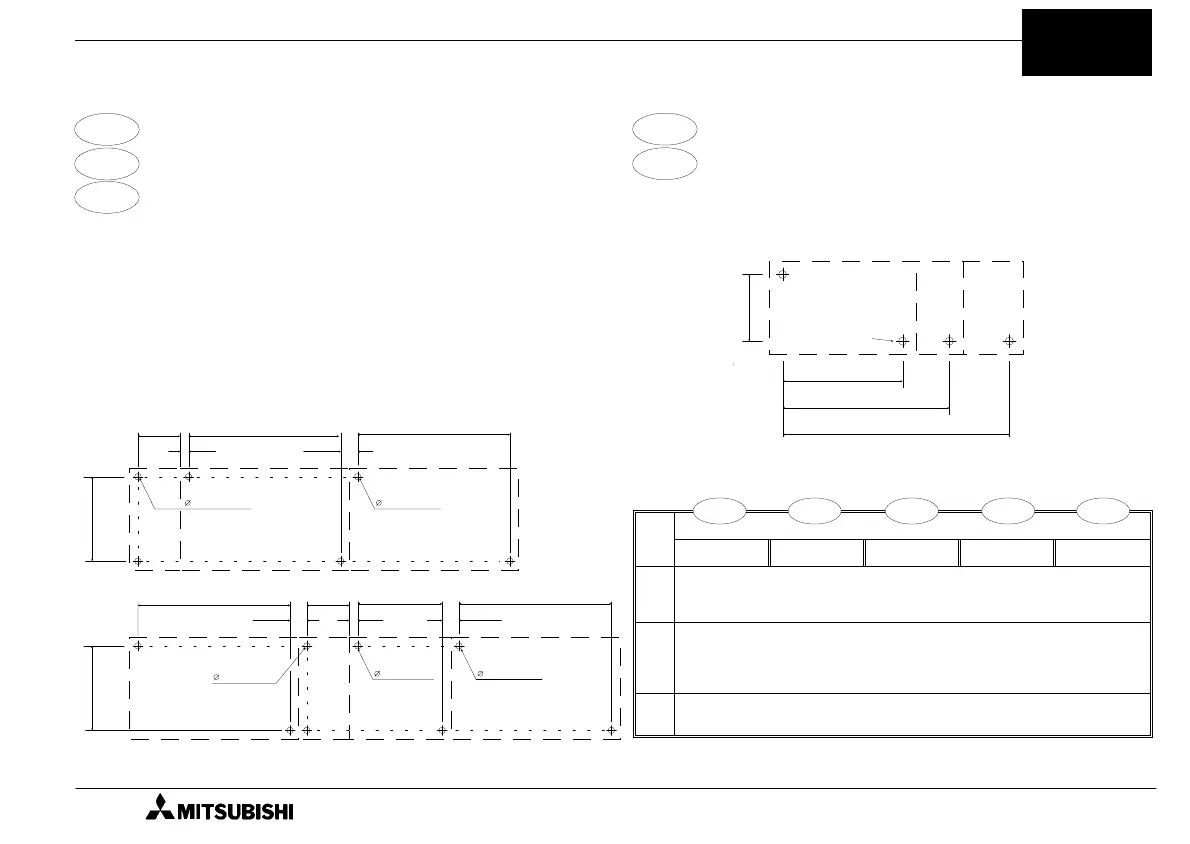

Figure: 3.4
FX
0
80 +/- 0.2
(3.15 +/- 0.008)
80 +/- 0.2
(3.15 +/- 0.008)
E
A
11.0
(0.433)
A
5.0
(0.197)
M4 (0.157) M4 (0.157)
A
A
E
F
11.0
(0.433)
5.0
(0.197)
11.0
(0.433)
M4 (0.157)
M4 (0.157)
M4 (0.157)
mm (inches)
Figure: 3.5
FX
0N
ENG FRE GER
ITL
ESP
3
FX
0
/FX
0N
Series Programmable Controllers Installation notes
3-11
