Mitsubishi FX3U-20SSC-H Quick Start

Mitsubishi Electric Europe B.V. /// FA-European Business Group /// Gothaer Strasse 8 /// D-40880 Ratingen /// Germany
Tel: (02102) 4860 /// Fax: (02102) 486112 /// Email:info@mitsubishi-automation.com /// Web: www.mitsubishi-automation.com
Issue:
February 2007 /// Created by: FA-EBG Marketing Communications Dept
Servo /// Motion /// Servo /// Motion /// Servo /// Motion /// Servo /// Motion /// Servo

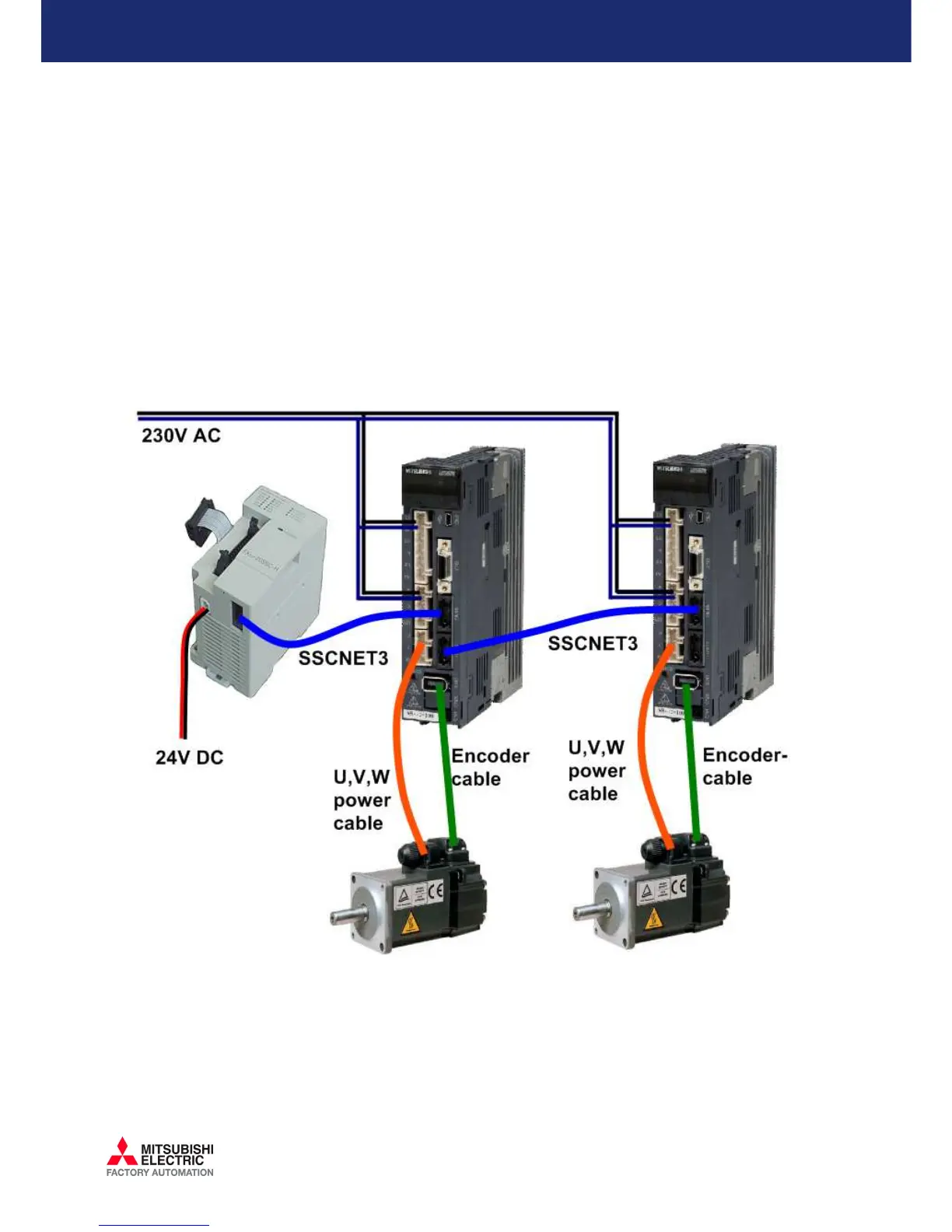

2.1.3 Wiring
 Wiring requirements for MR-J3-B:
200~230V AC to L1, L2, L3 for power circuit
200~230V AC to L11 and L21 for control circuit
Power cable between motor and amplifier (U,V,W terminal)
Encoder cable between motor and amplifier (CN2)
Fiber optic cable SSCNET 3at CN1A and CN1B
 Wiring requirements for FX3U-20SSC-H:
24 V DC to power connector
Fibre optic cable at SSCNET3 connector
Extension cable to FX3U (module takes 100mA from the 5V DC Bus)

Mitsubishi FX3U-20SSC-H Specifications

General

Brand	Mitsubishi
Model	FX3U-20SSC-H
Category	Controller
Language	English
