Mitsubishi HC6800 User Manual

EN-46

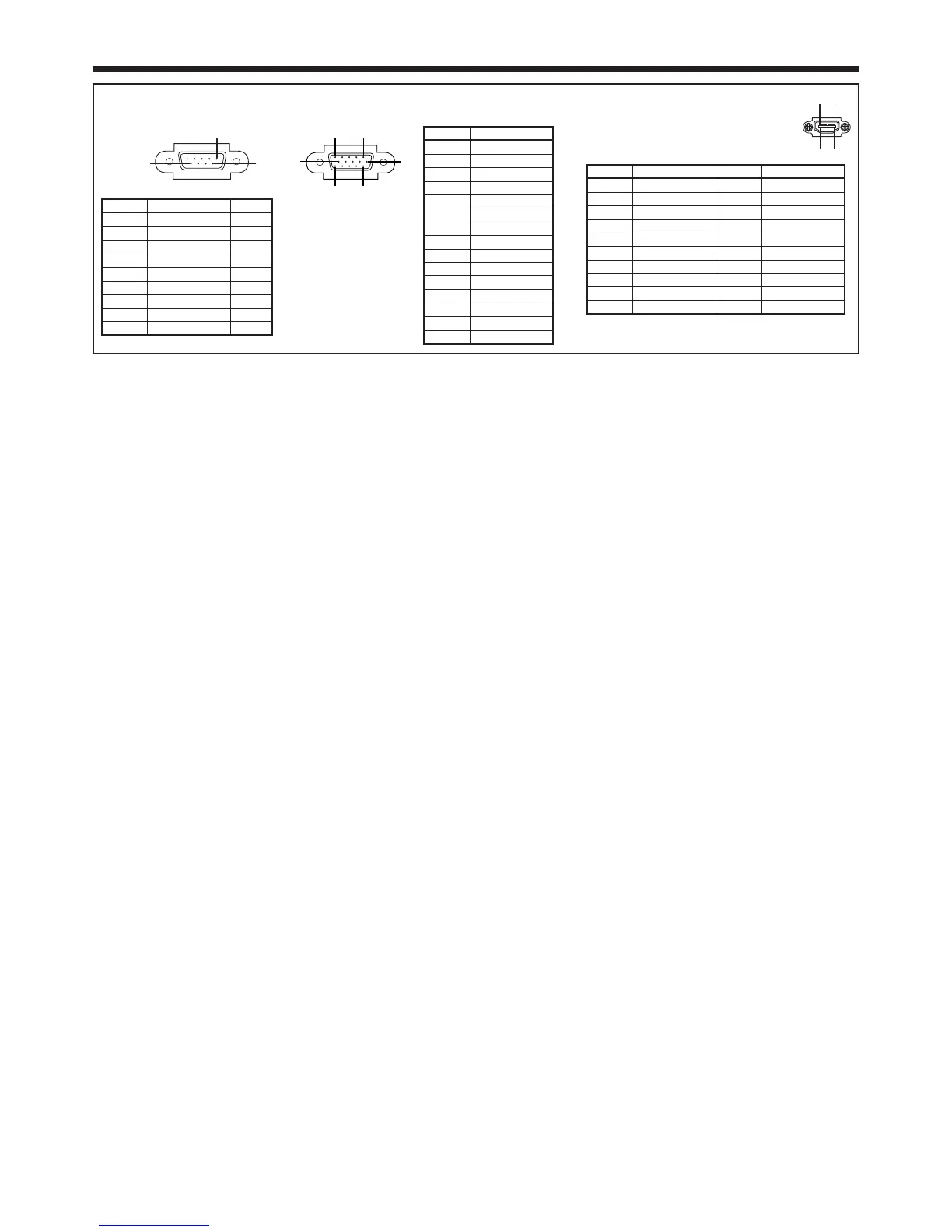

Specifications (continued)
Connectors
SERIAL (D-SUB 9-pin)
1 5
6
9
Pin No. Name I/O
1 – –
2 TXD IN
3 RXD OUT
4 – –
5 GND –
6 – –
7 – –
8 – –
9 – –
COMPUTER IN/COMPONENT VIDEO IN
(Mini D-SUB 15-pin)
Pin No. Spec.
1 R(RED)/P
R
/C
R
2 G(GREEN)/Y
3 B(BLUE)/P
B
/C
B
4 GND
5 GND
6 GND
7 GND
8 GND
9 DDC 5V
10 GND
11 GND
12 DDC Data
13 HD/CS
14 VD
15 DDC Clock
HDMI IN
(HDMI 19-pin)
19
1
2
18
PIN No. Spec. PIN No. Spec.
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Data2 Shield 12 TMDS Clock-
3 TMDS Data2- 13 CEC
4 TMDS Data1+ 14 –
5 TMDS Data1 Shield 15 SCL
6 TMDS Data1- 16 SDA
7 TMDS Data0+ 17 DDC Ground
8
TMDS Data0 Shield 18 +5 V Power
9 TMDS Data0- 19 Hot Plug Detect
10 TMDS Clock+
Replacement part (option/not included in the box)
Spare lamp VLT-HC6800LP
15
11
6
10
15
