2-2
Chapter 2 NAME OF PARTS

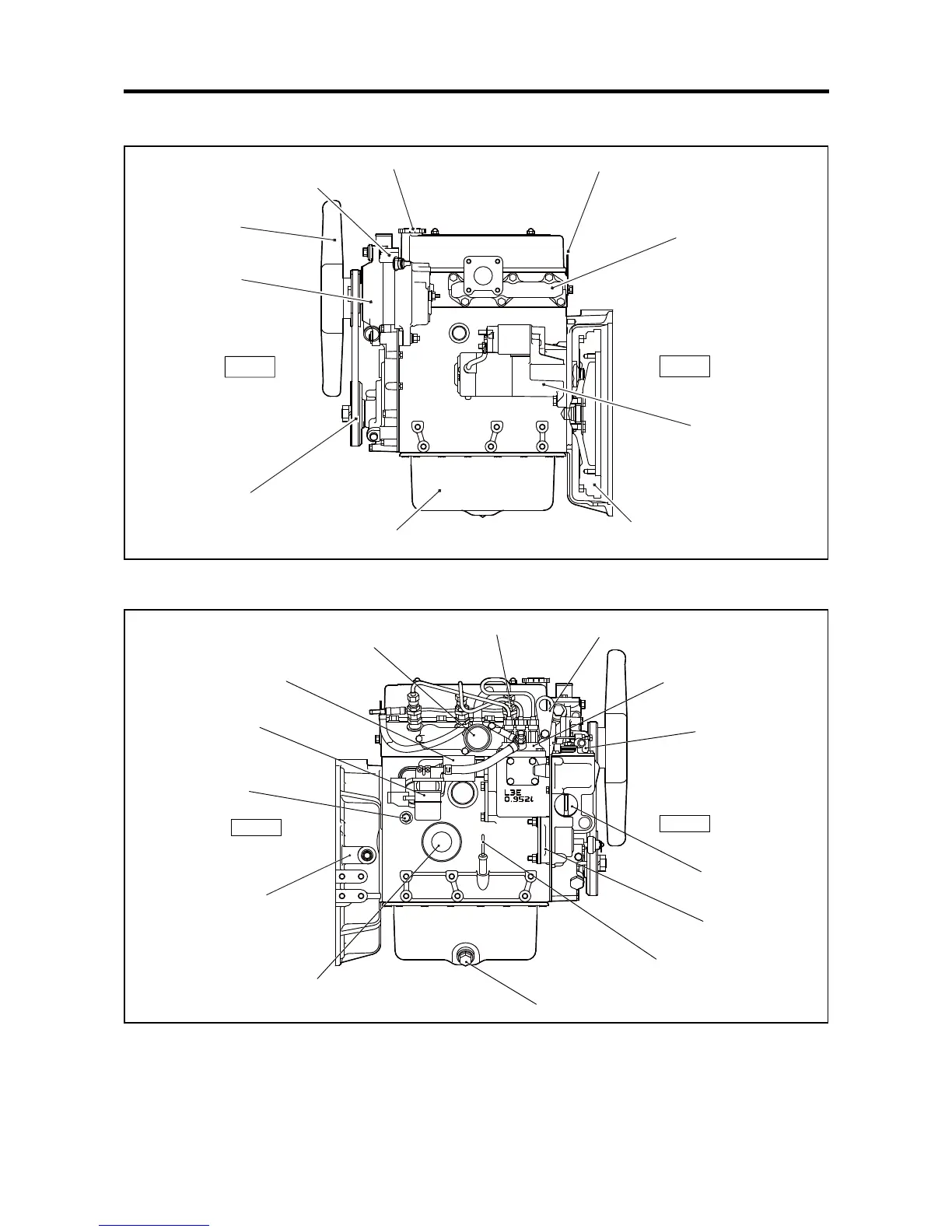

L3E left view
Fig. 2-3 Engine left view
L3E right view
Fig. 2-4 Engine right view
Oil filler
Thermostat
Fan
Alternator
Front
Belt
Oil pan
Flywheel
Starter
Rear
Exhaust manifold
Rear hanger
Stop solenoid
Fuel filter
Coolant drain plug
Rear
Flywheel housing
Oil filter
Oil drain plug
Oil level gauge
PTO
Oil filler
Front
Water pump
Fuel injection pump
Front hanger
Fuel injection nozzle
Inlet cover
