CAMSHAFTS (VALVE AND INJECTION
PUMP)
ENGLISH
ENGINE MAIN PARTS
14.2 Removal of Valve Camshaft
14.2.1 Remove only the valve camshaft
When it is necessary to remove only the valve
camshaft, use the following procedure:
1. Dismount the cylinder head assembly.
2. Pull out the pushrods.
3. Pull out the tappets.
4. Remove the gear case assembly.
5. Remove the camshaft stopper bolt.
6. Draw out the camshaft assembly.
14.2.2 Removal of the injection pump
camshaft
1. Disconnect the injection pipes.
2. Remove the injection pump assembly.
3. Remove the gear case assembly.
4. Remove the shaft rear cover.
5. Remove the stopper bolt.
6. Pull out the shaft to the front side.

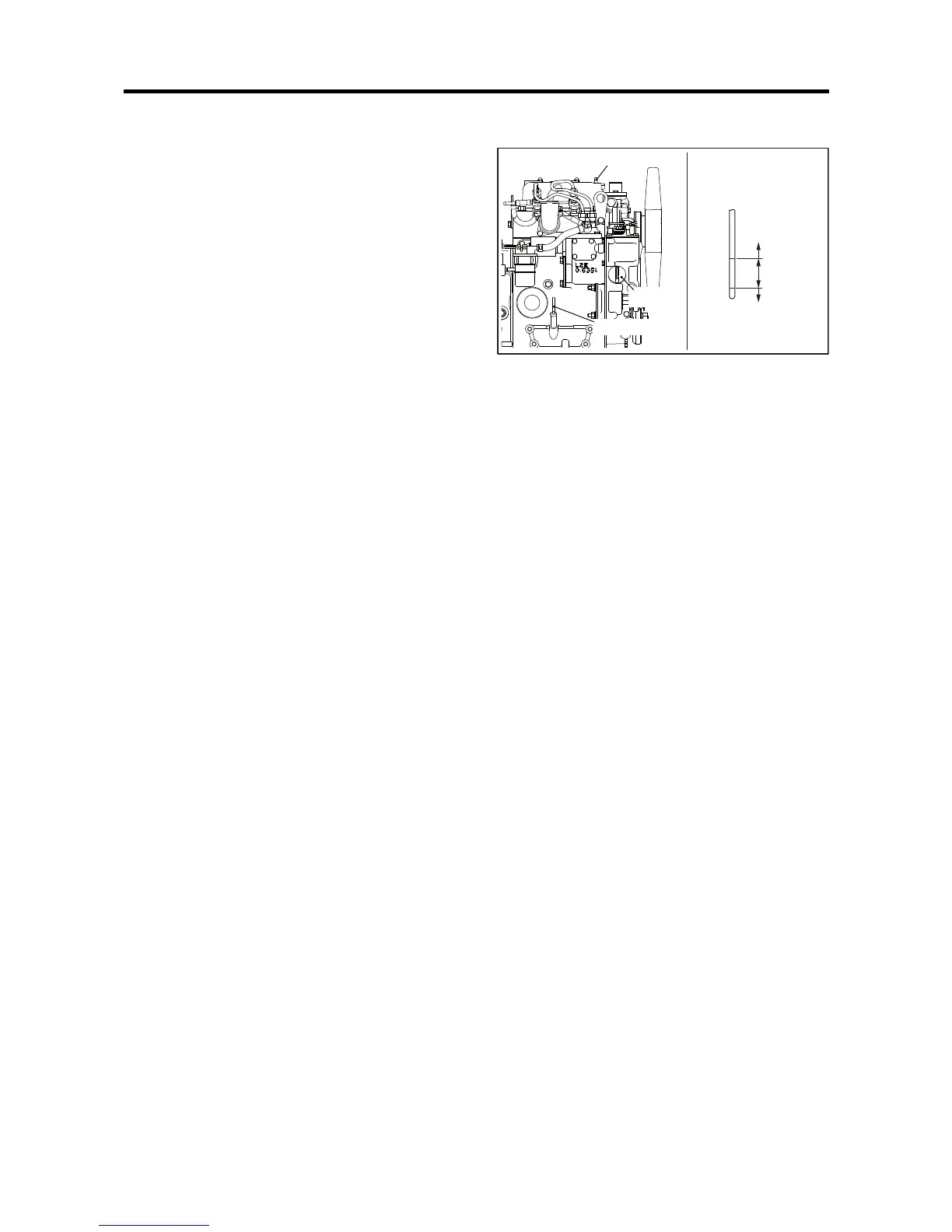

Figure 63 Removing injection pump camshaft
