Chapter 2 NAME OF PARTS
Equipment and instrument
The installed equipment and shapes differ on the engine type.
Starter switch
The starter switch is used to start the engine.
HEAT
When the key is turned to this position, the glow plugs
become hot and allow easy startup of a cold engine.
OFF
When the key is turned to this position, power supply
to the electric circuits is cut off, and the key can be
removed and inserted at this position. To sotp engine,
turn the key to this position.
ON
When the key is at this position, power is supplied to
the electric circuits. After the engine starts, the key is
set to this position.
START
When the key is turned to this position, the starter
cranks the engine and the engine starts. When the
key is released, ti automatically returns to the "ON"
position.

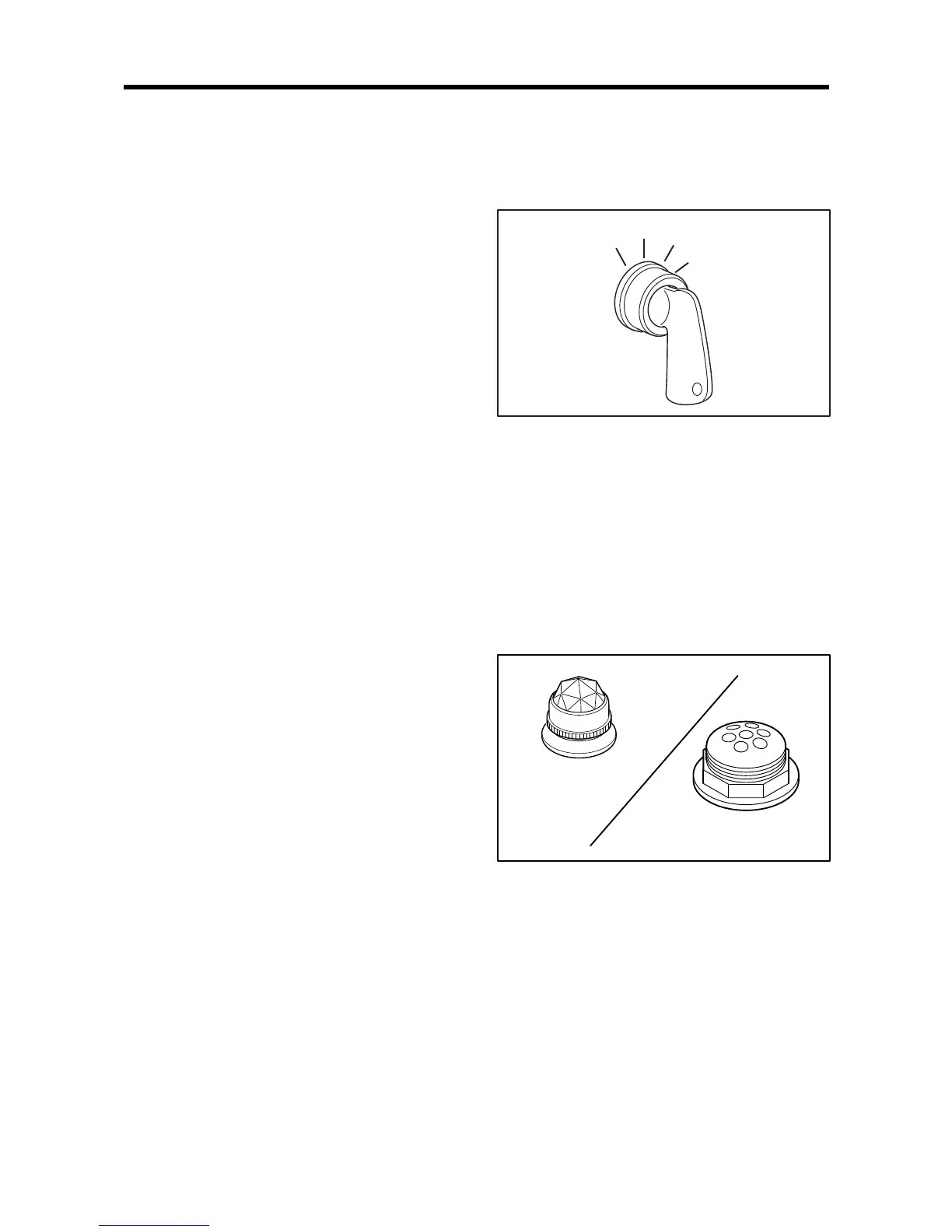

Fig. 2-5 Starter switch
Preheat indicator
The preheat indicator shows the condition of the glow
plugs.
Automatic glow type
The preheat lamp is on during the set periods of the
glow timer, and off when the preheating is completed.
Manual glow type
The glow signal turns red to indicate the preheating
condition as the glow plug is heated.
Fig. 2-6 Preheat indicator
