Service Manual Mitsubishi L-Series diesel engines

Version 08/2004

OIL FILTER AND OIL PRESSURE SWITCH

ENGLISH

LUBRICATION SYSTEM

19 OIL FILTER AND OIL

PRESSURE SWITCH

19.1 Disassembly

Disassembly sequence

1. Oil filter

2. Oil pressure switch

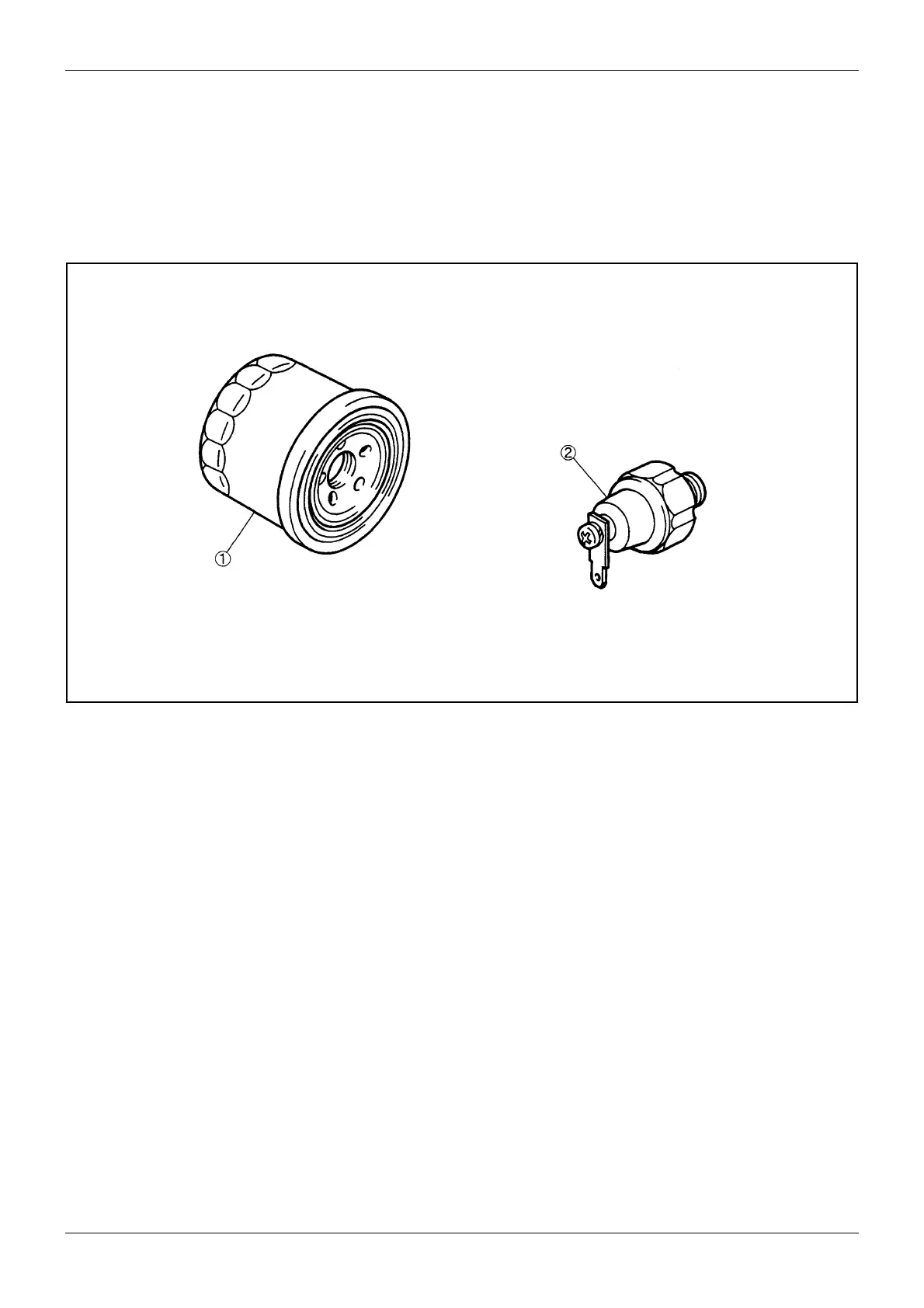

Figure 87 Oil filter and pressure switch
