Mitsubishi LT2-250 Technical Information

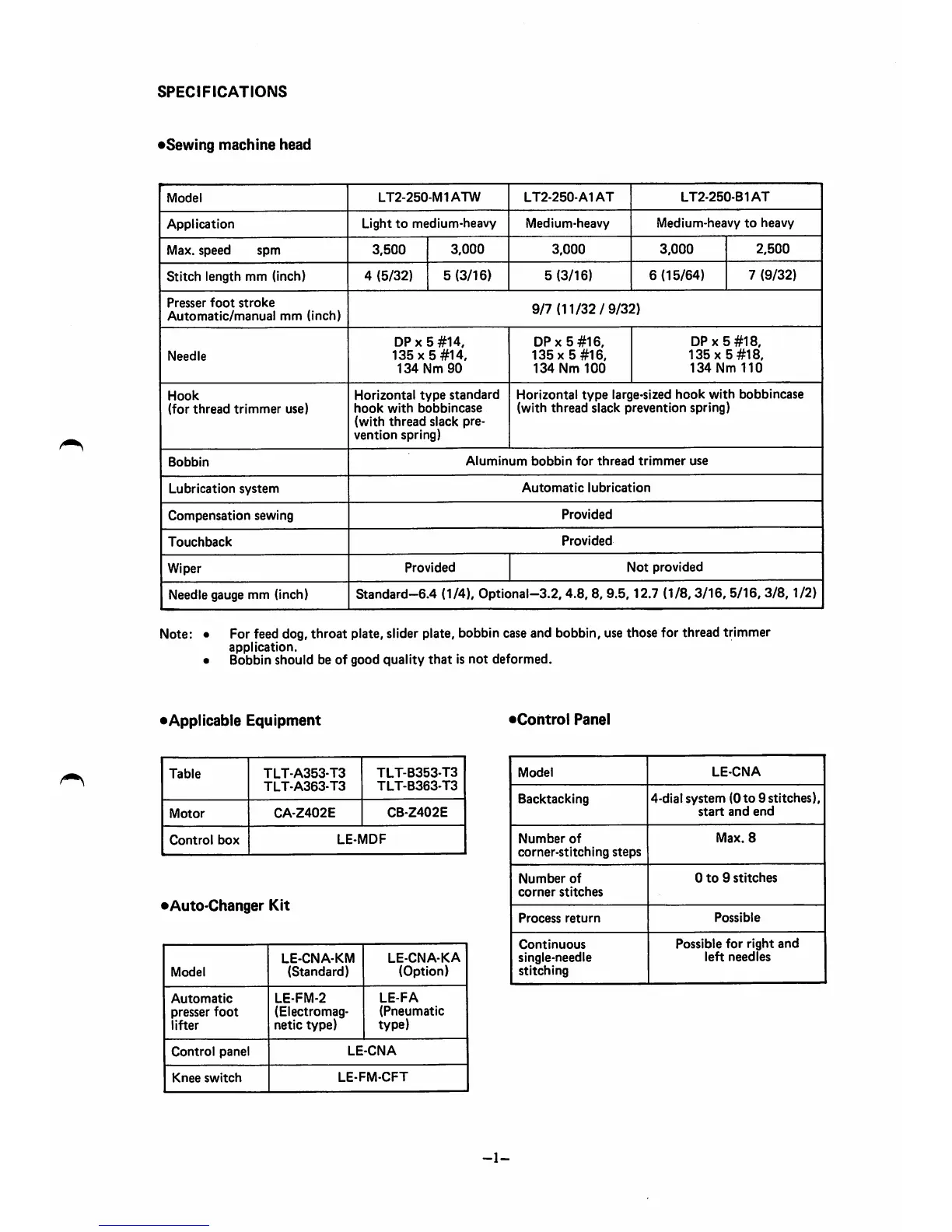

SPECIFICATIONS
•Sewing machine head
Model
LT2-250-M1ATW
LT2-250-A1AT LT2-250-B1AT
Application
Light to medium-heavy
Medium-heavy
Medium-heavy
to heavy
Max. speed spm
3,500
3,000
3,000
3,000
2,500
Stitch length mm (inch)
4 (5/32)
5 (3/16) 5 (3/16) 6 (15/64)
7 (9/32)
Presser foot stroke
Automatic/manual mm (inch)
9/7 (11/32 / 9/32)
Needle
DP X 5 #14,
135 X 5 #14,
134 Nm 90
DP X 5 #16,
135 X5 #16,
134 Nm 100
DP X 5 #18,
135 X 5 #18,
134 Nm 110
Hook
(for thread trimmer use)
Horizontal type standard
hook with bobbincase
(with thread slack pre
vention spring)
Horizontal
type large-sized hook with bobbincase
(with thread slack prevention spring)
Bobbin
Aluminum bobbin for thread trimmer use
Lubrication system
Automatic lubrication
Compensation sewing
Provided
Touchback
Provided
Wiper
Provided Not provided
Needle gauge mm (inch)
Standard-6.4 (1/4), Optional-3.2.4.8, 8, 9.5,12.7 (1/8,3/16, 5/16, 3/8,1/2)
Note: • For feed dog, throat plate, slider plate, bobbin case and bobbin, use those for thread trimmer
application.
• Bobbin should be of good quality that is not deformed.
•Applicable Equipment
Table
TLT-A353-T3
TLT-A363-T3
TLT-B353-T3
TLT-B363-T3
Motor
CA-Z402E
CB-Z402E
Control box
LE-MDF
•Auto-Changer Kit
Model
LE-CNA-KM
(Standard)
LE-CNA-KA
(Option)
Automatic
presser foot
lifter
LE-FM-2
(Electromag
netic type)
LE-FA
(Pneumatic
type)
Control panel
LE-CNA
Knee switch
LE-FM-CFT
•Control Panel
Model
LE-CNA
Backtacking
4-dial system (Oto 9 stitches),
start and end
Number of
corner-stitching steps
Max. 8
Number of
corner stitches
0 to 9 stitches
Process return
Possible
Continuous
single-needle
stitching
Possible for right and
left needles
-1-
