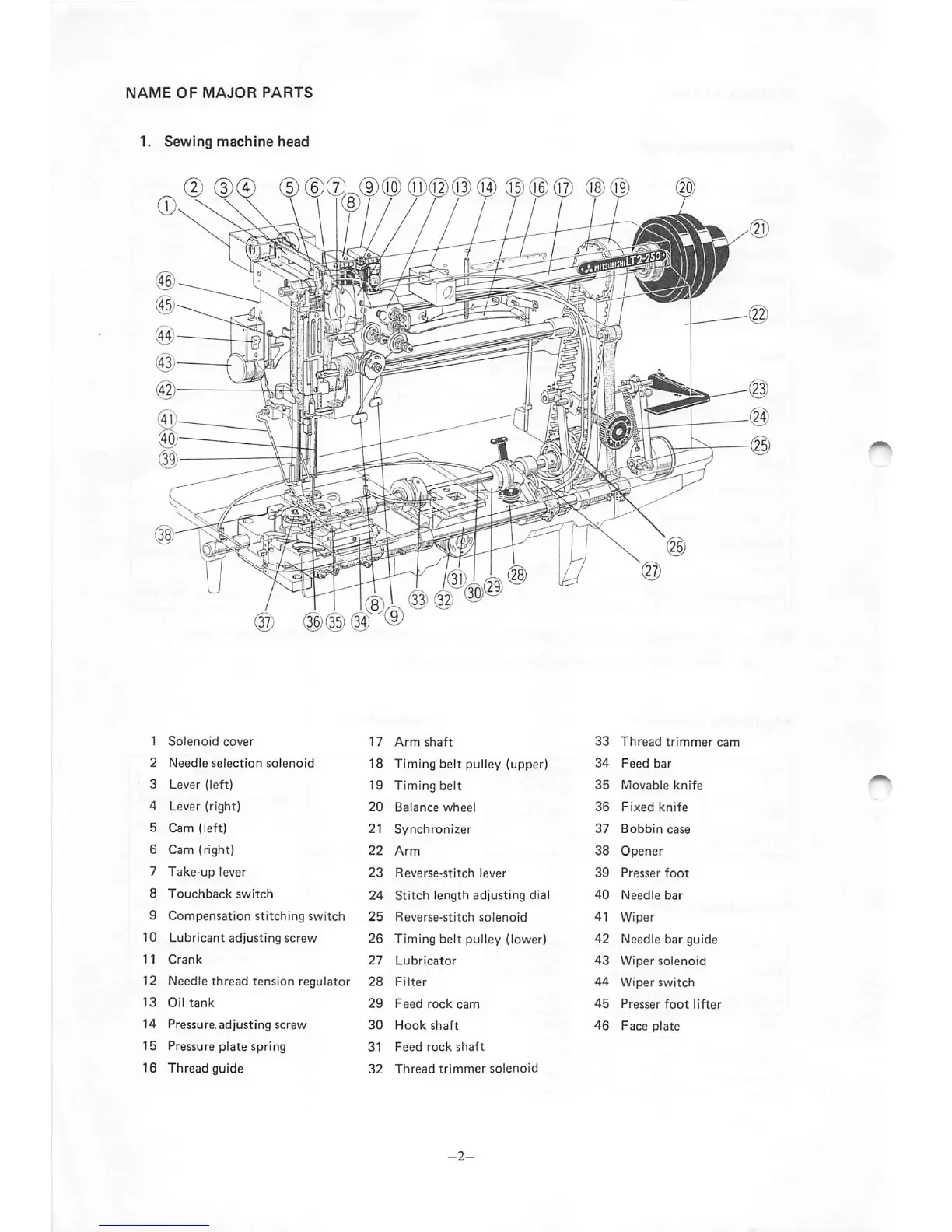

NAME OF MAJOR PARTS
1. Sewing machine head
(D d)® (D)®®® ®(!l)® ®® @
17 Arm shaft
18 Timing belt pulley (upper)
19 Timing belt
20 Balance wheel
21 Synchronizer
22 Arm
23 Reverse-stitch lever
24 Stitch length adjusting dial
25 Reverse-stitch solenoid
26 Timing belt pulley (lower)
27 Lubricator
1 Solenoid cover 17 Arm si
2 Needle selection solenoid 18 Timini
3 Lever (left) 19 Timing
4 Lever (right)
20 Balanc
5 Cam (left) 21 Synch
6 Cam (right) 22 Arm
7 Take-up lever 23 Revers
8
Touchback switch 24 Stitch
9 Compensation stitching switch 25 Rever;
10 Lubricant adjusting screw 26 Timini
11 Crank 27 Lubrk
12 Needle thread tension regulator 28 Filter
13 Oil tank
14 Pressure.adjusting screw
15 Pressure
plate spring
16
Thread guide
29 Feed rock cam
30 Hook shaft
31 Feed rock shaft
32 Thread trimmer solenoid
33 Thread trimmer cam
34 Feed bar
35 Movable knife
36 Fixed knife
37 Bobbin case
38 Opener
39 Presser foot
40 Needle bar
41 Wiper
42 Needle bar guide
43 Wiper solenoid
44 Wiper switch
45 Presser foot lifter
46 Face plate
