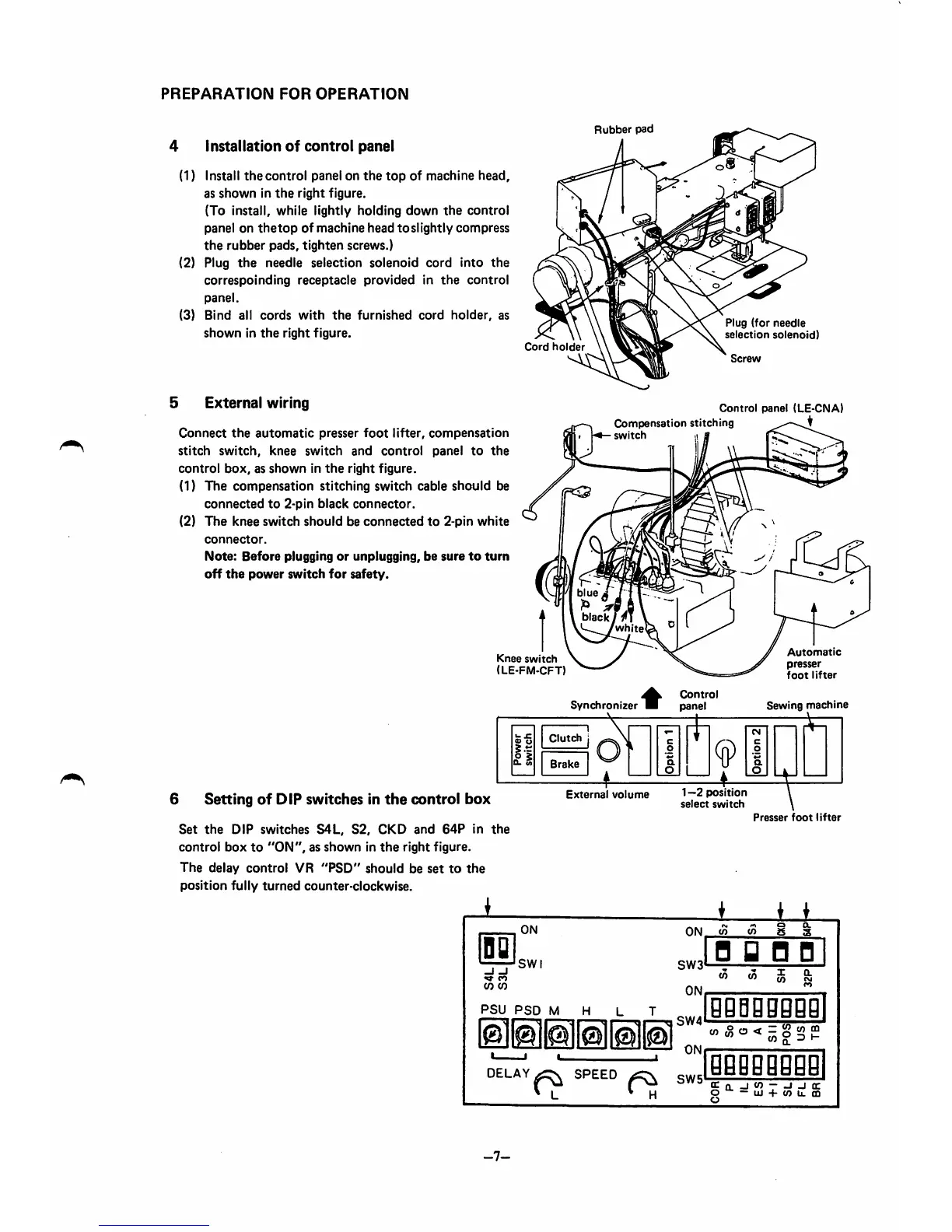

PREPARATION FOR OPERATION
4 Installation of control panel
(1) Install the control panel on the top of machine head,
as shown in the right figure.
(To install, while lightly holding down the control
panel on thetop of machine head toslightly compress
the rubber pads, tighten screws.)
(2) Plug
the needle selection solenoid cord into the
correspoinding receptacle provided in the control
panel.
(3) Bind all cords with the furnished cord holder, as
shown in the right figure.
Cord holder
Rubber pad
Plug (for needle
selection solenoid)
Screw
5 External wiring
Connect the automatic presser foot lifter, compensation
stitch switch, knee switch and control panel to the
control box, as shown in the right figure.
(1) The compensation stitching switch cable should be
connected to 2-pin black connector.
(2) The knee switch should be connected to 2-pin white
connector.
Note: Before plugging or unplugging, be sure to turn
off the power switch for safety.
Control panel
Compensation stitching
(LE-CNA)
f
Knee switch
(LE-FM-CFT)
white
Automatic
presser
foot lifter
Synchronizer
Control
H panel Sewing machine
6 Setting of DIP switches in the control box
Set the DIP switches S4L, 82, CKD and 64P in the
control box to "ON", as shown in the right figure.
The delay control VR "PSD" should be set to the
position fully turned counter-clockwise.
DO
-I -I
CO
CO CO
Clutch i
Brake
External volume
ON
SWI
PSU PSD M H
DELAY
SPEED
-7-
1—2 position
select switch
Presser foot lifter
JL_i
ON in (O
SW3
ON
t|SW4
ON
SW5
Q y • D
CO (o
I 0.
CO
ggggggBQ
CO (S o <
Z 55 CO CD
CO g 3 H
gggggggg
9Cq._JC0--_I_IQC
O — UI + C011.CD
