Mitsubishi LT2-250 Technical Information

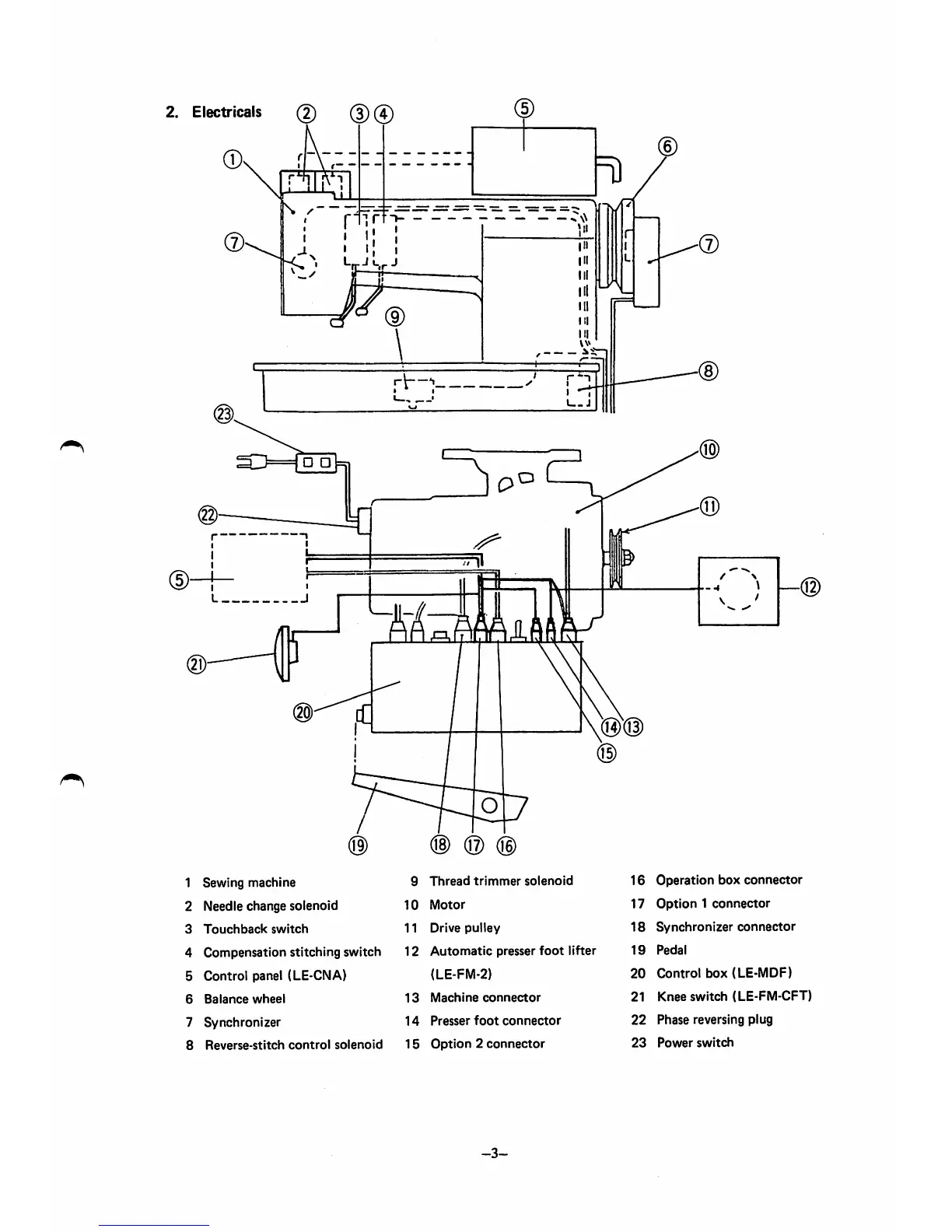

2. Electricals
(iD
1 Sewing machine
2 Needle change solenoid
3 Touchback switch
4 Compensation stitching switch
5 Control panel (LE-CNA)
6 Balance wheel
7 Synchronizer
8 Reverse-stitch control solenoid
® ® ®
9 Thread trimmer solenoid
10 Motor
11 Drive pulley
12 Automatic presser foot lifter
(LE-FM-2)
13 Machine connector
14 Presser foot connector
15 Option 2 connector
-3-
©
B>
16 Operation box connector
17 Option 1 connector
18 Synchronizer connector
19 Pedal
20 Control box (LE-MDF)
21 Knee switch (LE-FM-CFT)
22 Phase reversing plug
23 Power switch
