III. Appearance
˚F˚C
˚F˚C
ERROR CODE
AFTER
TIMER
TIME SUN MON TUE WED THU FRI SAT
ON
OFF
Hr
AFTER
FILTER
FUNCTION
ONLY1Hr.
WEEKLY
SIMPLE
AUTO OFF
Identifi es the current op er a tion
Shows the operating mode, etc.
* Multilanguage display is sup-
port ed.
“Centrally Controlled” in di ca tor
Indicates that operation of the re-
mote controller has been pro hib it ed
by a master controller.
“Timer is Off” indicator
Indicates that the timer is off.
Temperature setting
Shows the target temperature.
Day-of-Week
Shows the current day of the week.
Time/Timer Display
Shows the current time, unless the simple or Auto Off
timer is set.
If the simple or Auto Off timer is set, shows the time re-
maining.
“Sensor” indication
Displayed when the remote con trol ler
sensor is used.
“Locked” indicator
Indicates that remote controller but-
tons have been locked.
“Clean The Filter” indicator
Comes on when it is time to clean
the fi lter.
Timer indicators
The indicator comes on if the cor-
re spond ing timer is set.
Up/Down Air Direction in di -
ca tor
The indicator shows the di-
rec tion of the outcoming airfl ow.
“One Hour Only” indicator
Displayed if the airfl ow is set to
low and downward during COOL
or DRY mode. (Operation varies
according to model.)
The indicator goes off after one
hour, at which time the airfl ow di-
rec tion also changes.
Louver display
Indicates the action of the swing
louver. Does not appear if the
louver is stationary.
(Power On indicator)
Indicates that the power is on.
Fan Speed indicator
Shows the selected fan speed.
Ventilation indicator
Appears when the unit is running
in Ventilation mode.
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
Set Temperature buttons
Down
Up
Timer Menu button
(Monitor/Set but ton)
Mode button (Return but-
ton)
Set Time but tons
Back
Ahead
Timer On/Off but ton
(Set Day button)
Opening the
door.
ON/OFF but ton
Fan Speed button
Filter button
(<Enter> but ton)
Test Run button
Check button (Clear but ton)
Airfl ow Up/Down button
Louver button
(
Operation button)
To preceding op er a tion
number.
Ventilation button
(
Op er a tion button)
To next operation number.
Note:
●
If you press a button for a feature that is not installed at the indoor unit, the remote controller will display the “Not Available”
message.
If you are using the remote controller to drive multiple indoor units, this message will appear only if the feature is not present
at every unit connected.
Room Temperature dis play
Shows the room temperature.

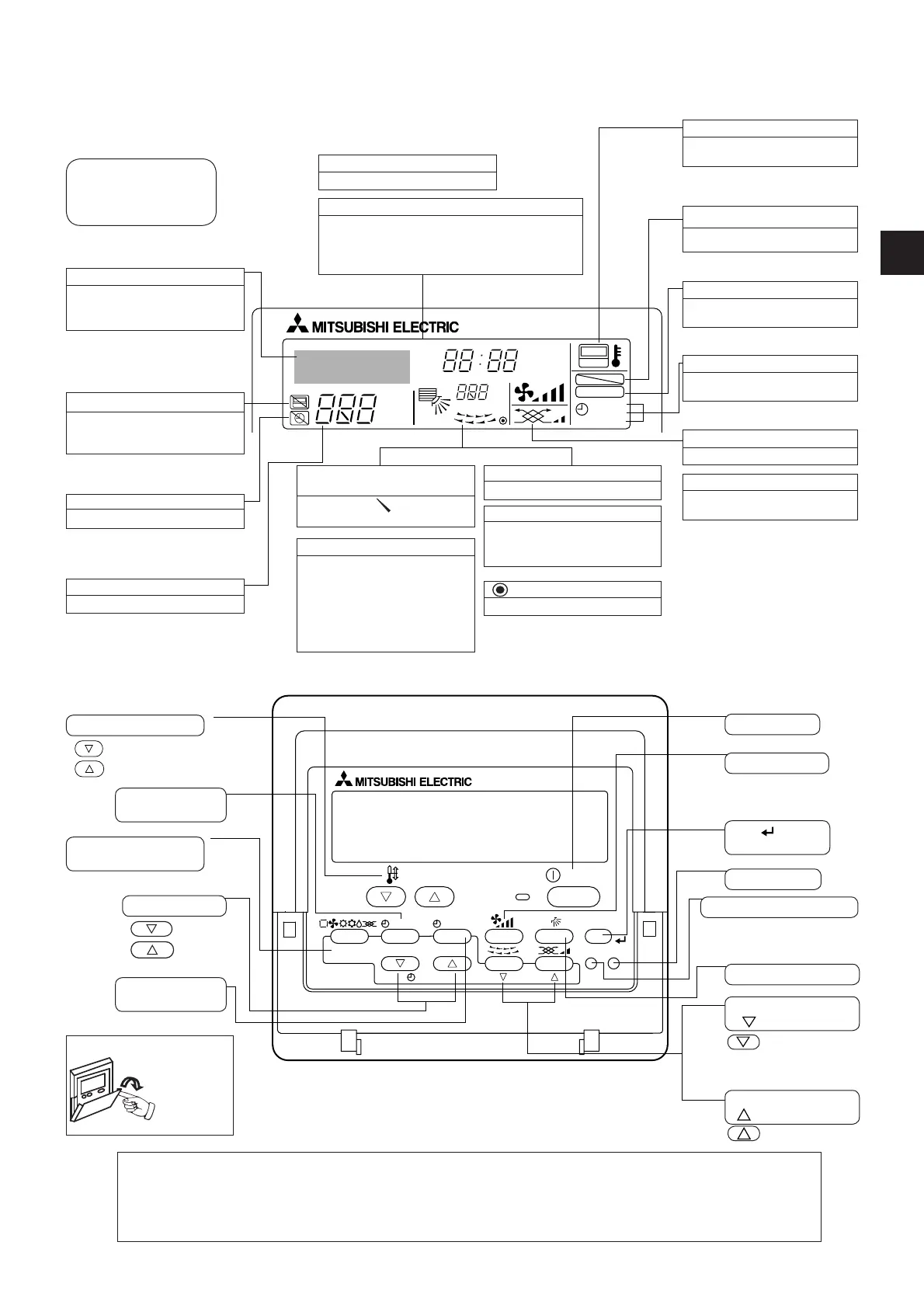

III. Appearance
1. Display Section
2. Operation Section
For purposes of this ex pla na tion,
all parts of the display are shown
as lit. During actual op er a tion, only
the rel e vant items will be lit.
To Next Page
