3-63 Teaching pendant (T/B)
3 Controller

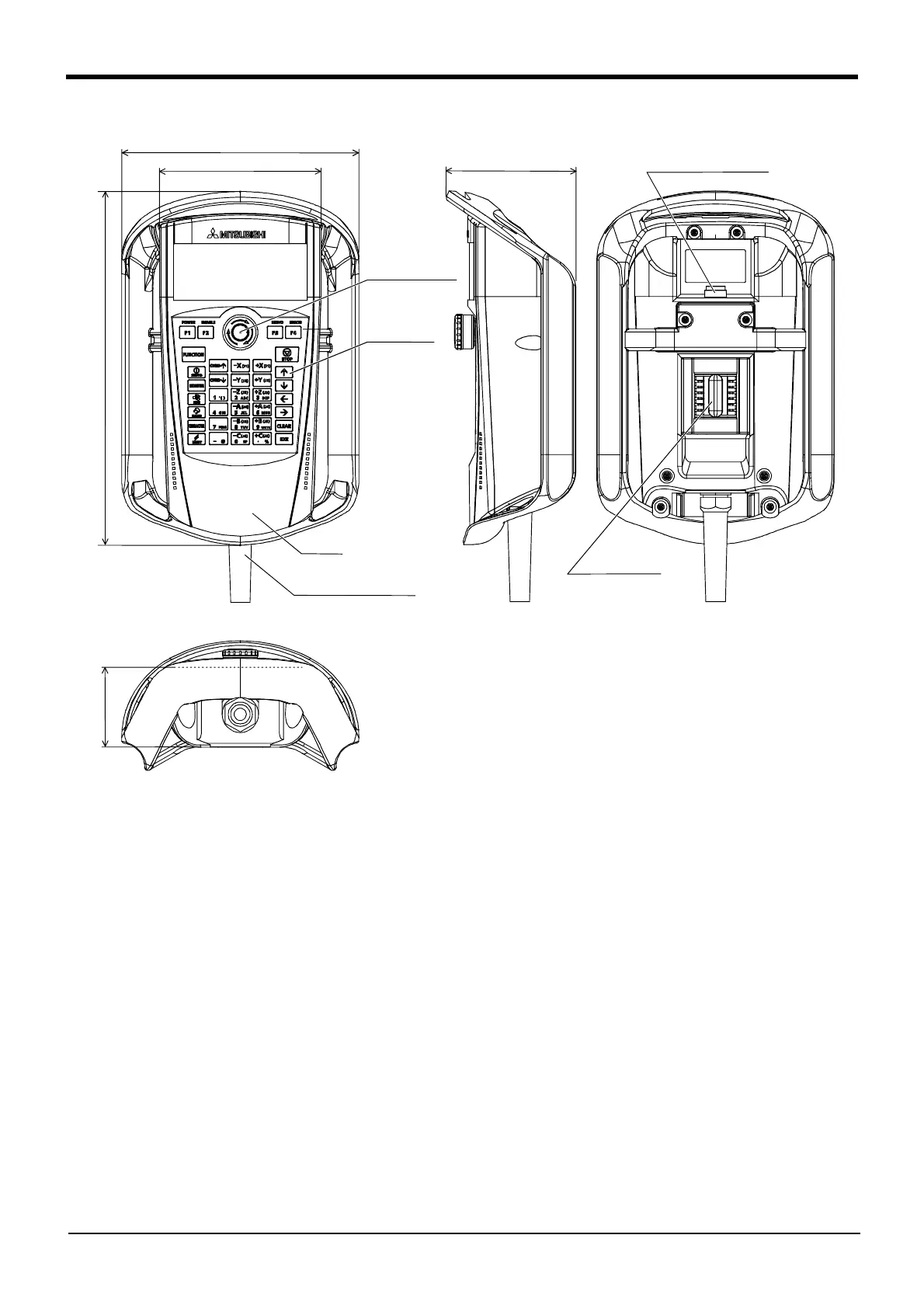

Fig.3-20 Outside dimensions of teaching pendant
Installation method
The teaching pendant is connected to the T/B connector on the front of the controller.
Note) The connector may be felt hard if installation and removal of the teaching pendant or the dummy plug is
repeated to the frequent.
Enable/Disable switch
Emergency stop
Enable switch
Operetion key
Body
Cable (with connector)
<Back>
<Bottom>
63.5
<Front>
LCD
291.9
195.2
133
<side>
105.5
