4. OPERATION AND FUNCTIONS
[Method for always making home position return to the same position]
(a) Move the linear servo motor to the position where the stroke end signal on the side opposite to the
home position return direction turns on.
(b) Perform the power-on reset of the servo amplifier or reset the controller.
(c) Switch on the servo and make a home position return.

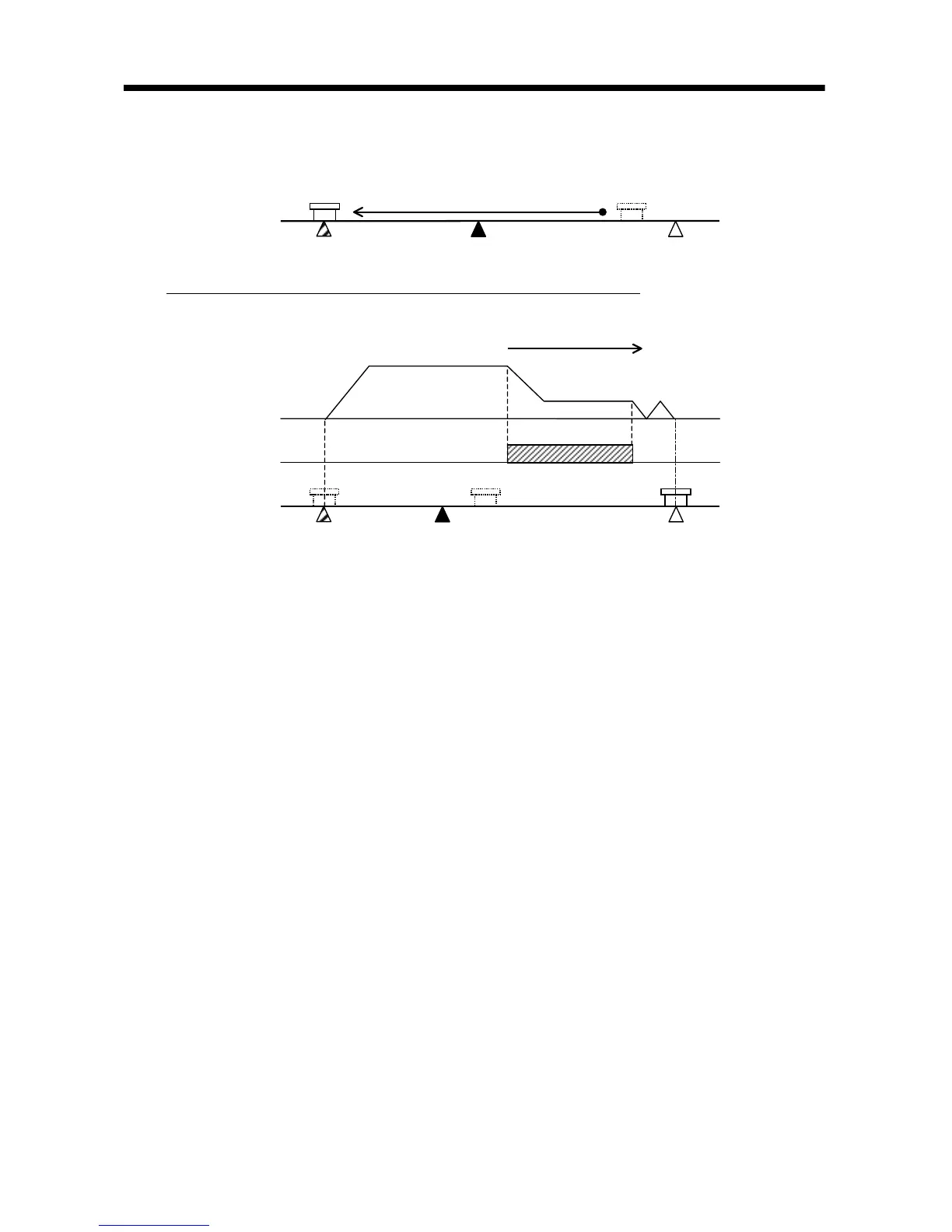

Machine position
Stroke end
Scale home position Home position
Stroke end
Home position return speed
Creep speed
Home position return direction
Scale home position
Home position return operation
Proximity dog
signal
Machine position
Home position
ON
OFF
