11. OPTIONS AND AUXILIARY EQUIPMENT
11 - 83

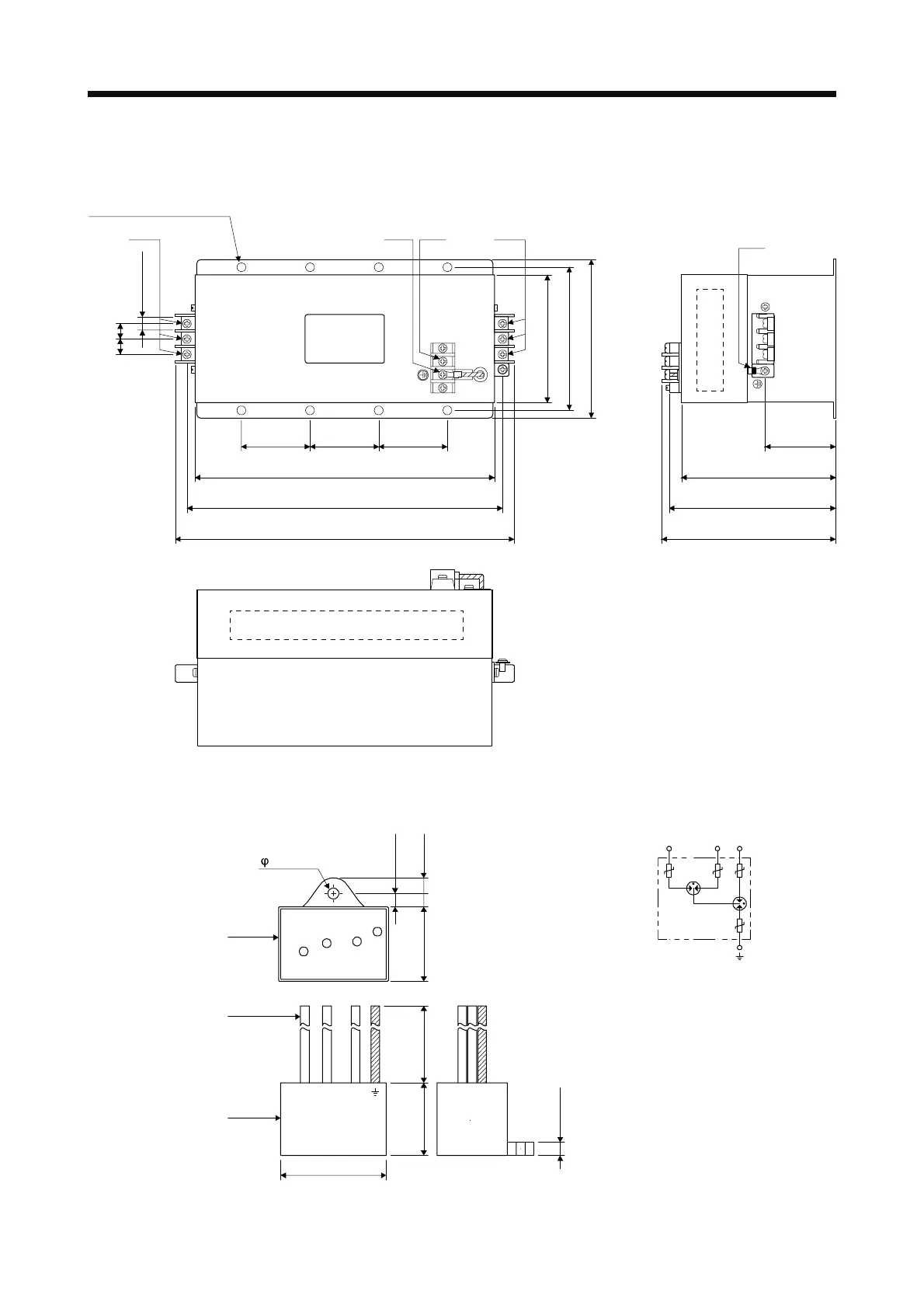

TF3040C-TX/TF3060C-TX
[Unit: mm]
180 ± 2
Approx.
91.5
Approx. 190
200 ± 5
M6
390 ± 2
100 ± 1
412 ± 5
438 ± 5
Approx. 17
3-M6
22 22
8-R3.25 Length 8 (for M6)
M4 M4
145 ± 2
3-M6
160 ± 1 175 ± 2
IN
100 ± 1 100 ± 1
(b) Surge protector
RSPD-250-U4
41 ± 1
28.5 ± 1 28 ± 1
4.2 ± 0.5
5.5 ± 1 11 ± 1
+30 0
200
4.5 ± 0.5
132
Lead
Case
Resin
[Unit: mm]
123
