13.1.6 Maintenance
This servo amplifier has alarms and warnings for maintenance that supports the Mitsubishi drive safety
function. (Refer to chapter 8.)

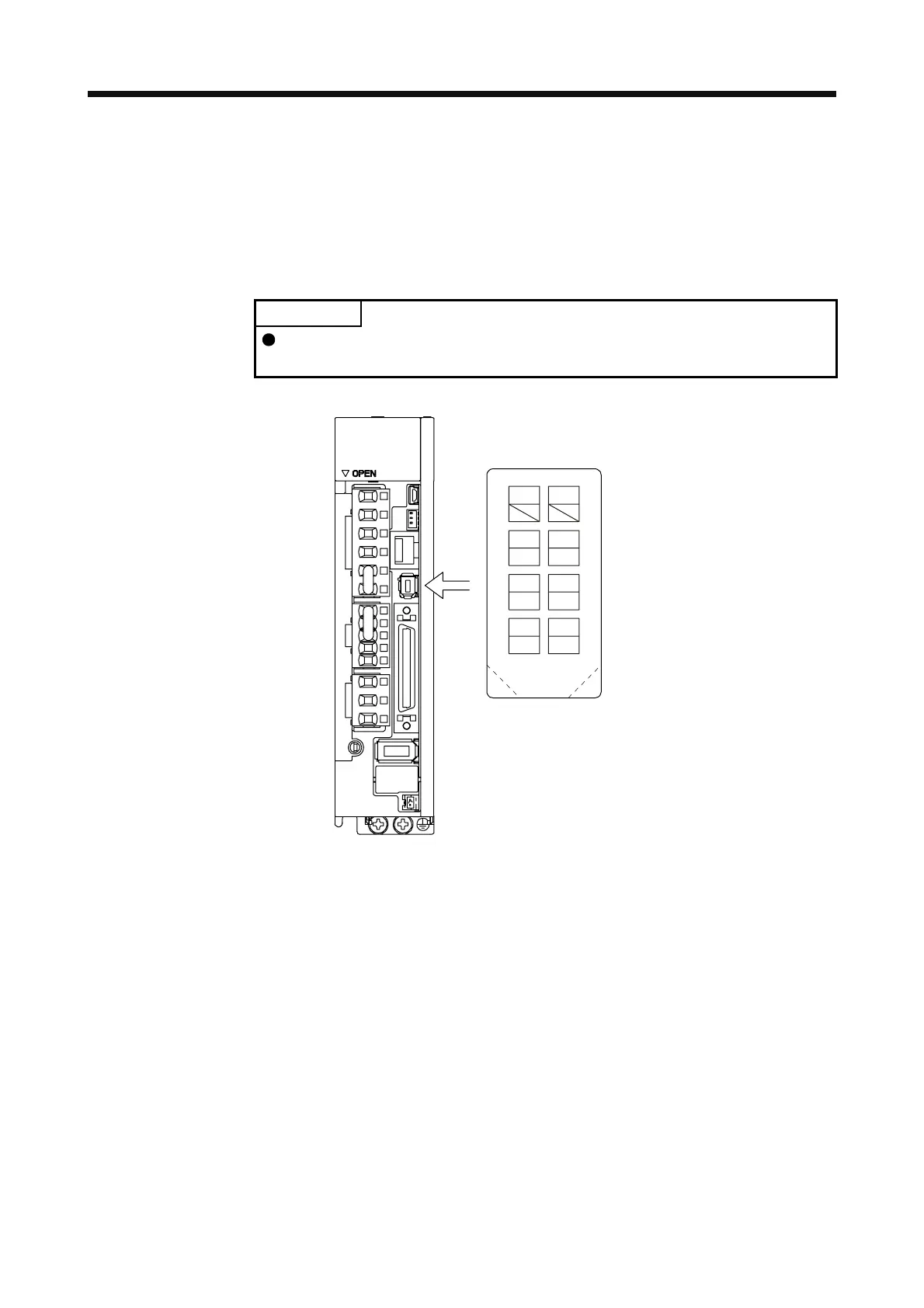

13.2 STO I/O signal connector (CN8) and signal layouts
13.2.1 Signal layouts
POINT
The pin configurations of the connectors are as viewed from the cable connector
wiring section.
TOFB2
STO2TOFB1
STO1
STOCOM
2
CN8
STO I/O signal connector
Servo amplifie
r
1
43
65
87
TOFCOM
