11. OPTIONS AND AUXILIARY EQUIPMENT
11 - 93

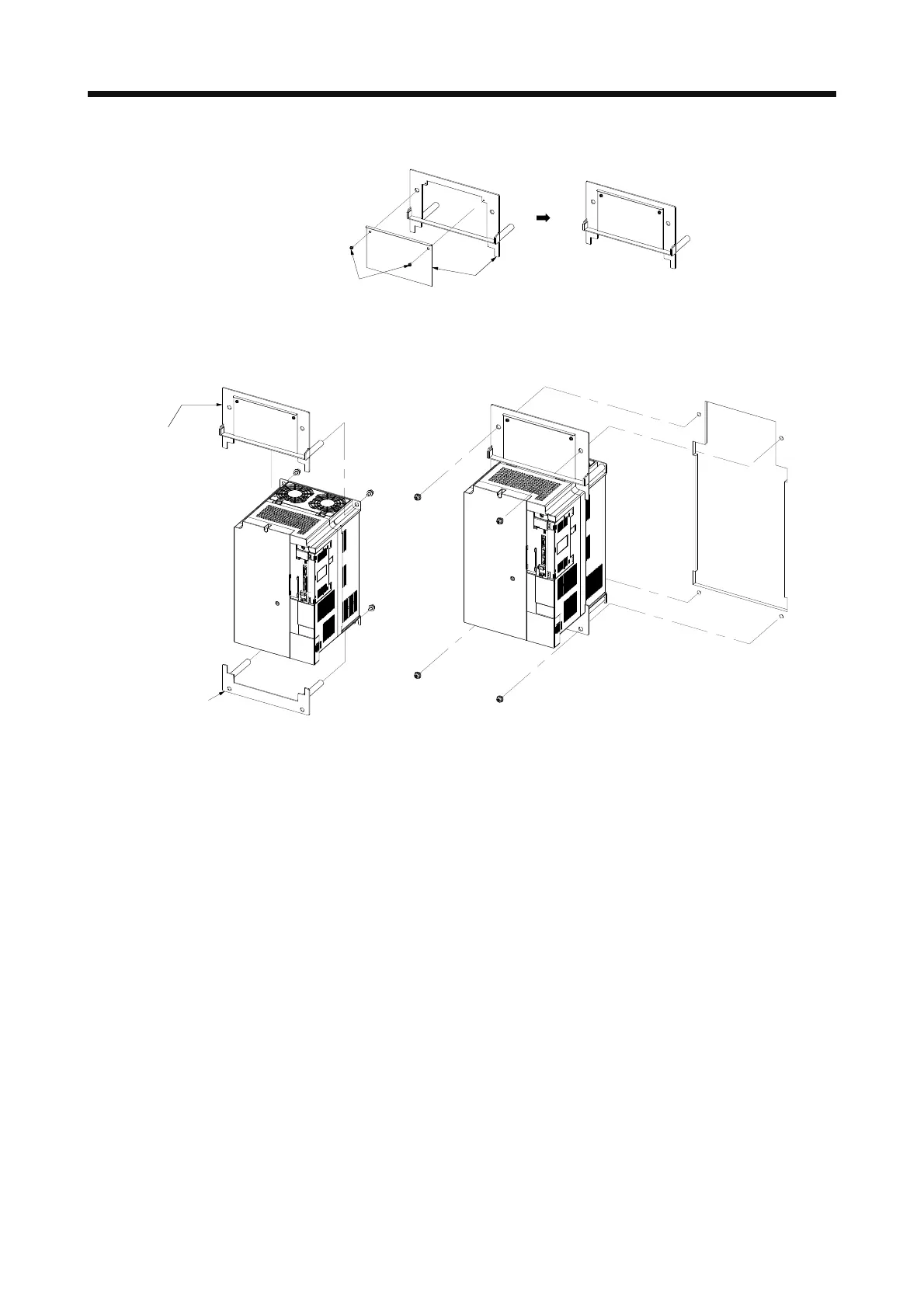

(b) How to assemble the attachment for heat sink outside mounting attachment
Screw
(2 places)
Attachment
(c) Mounting method
Fit using the
assembling
screws.
Attachment
Servo
amplifier
Attachment
Servo
amplifier
Punched
hole
Cabine
t
a. Assembling the heat sink outside mounting
attachment
b. Mounting it to inside cabinet
