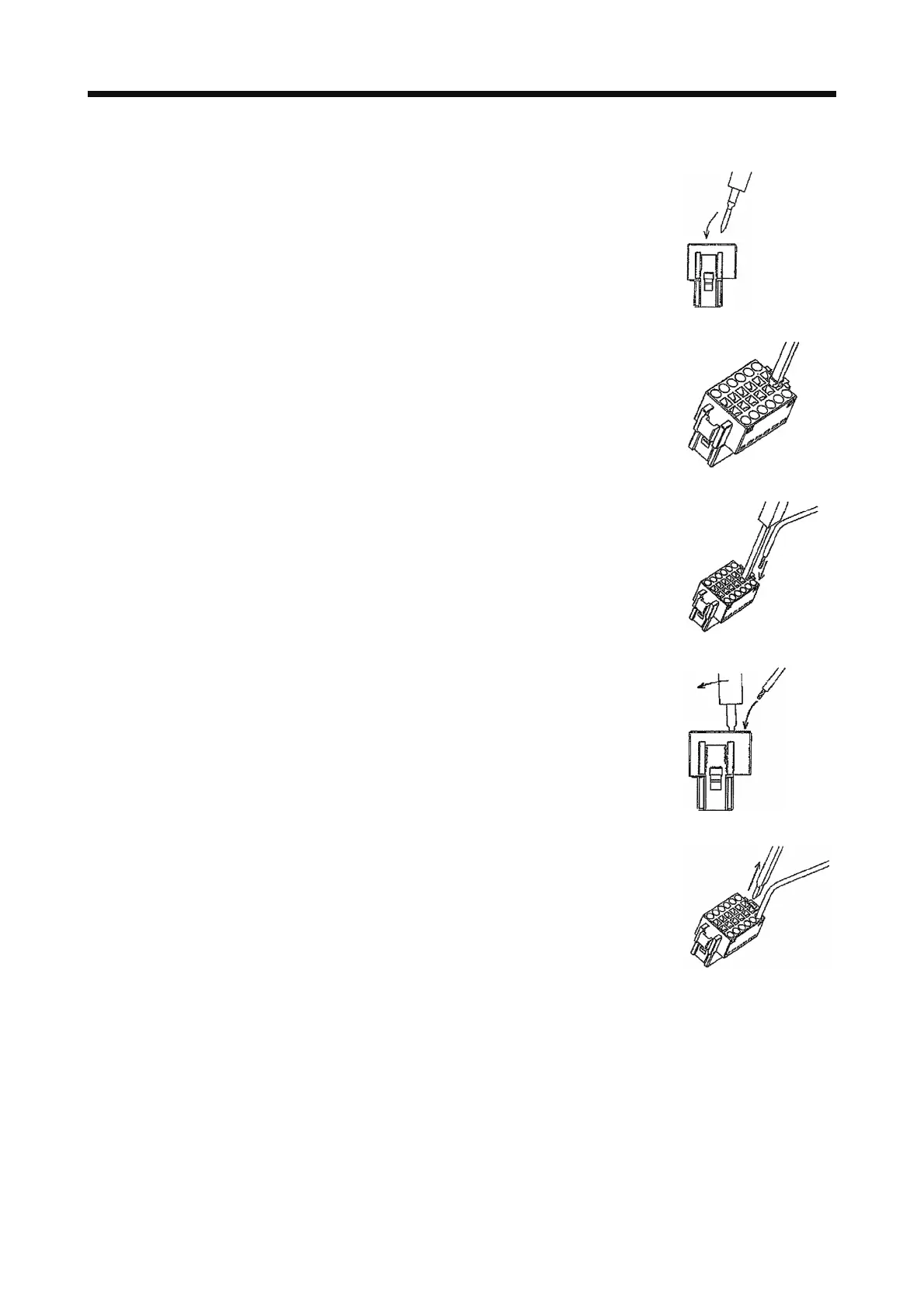

2) Connecting wires
a) Confirm the model number of the housing, contact and tool to be used.
b) Insert the tool diagonally into the receptacle assembly.
c) Insert the tool until it hits the surface of the receptacle assembly. At this
stage, the tool is vertical to the receptacle assembly.
d) Insert wires in the wiring hole till the end. The wires should be slightly
twisted in advance to prevent it from being feazed.
It is easy to insert the wire if the wire is inserted diagonally while twisting
the tool.
e) Remove the tool.
