6. NORMAL GAIN ADJUSTMENT
6 - 11

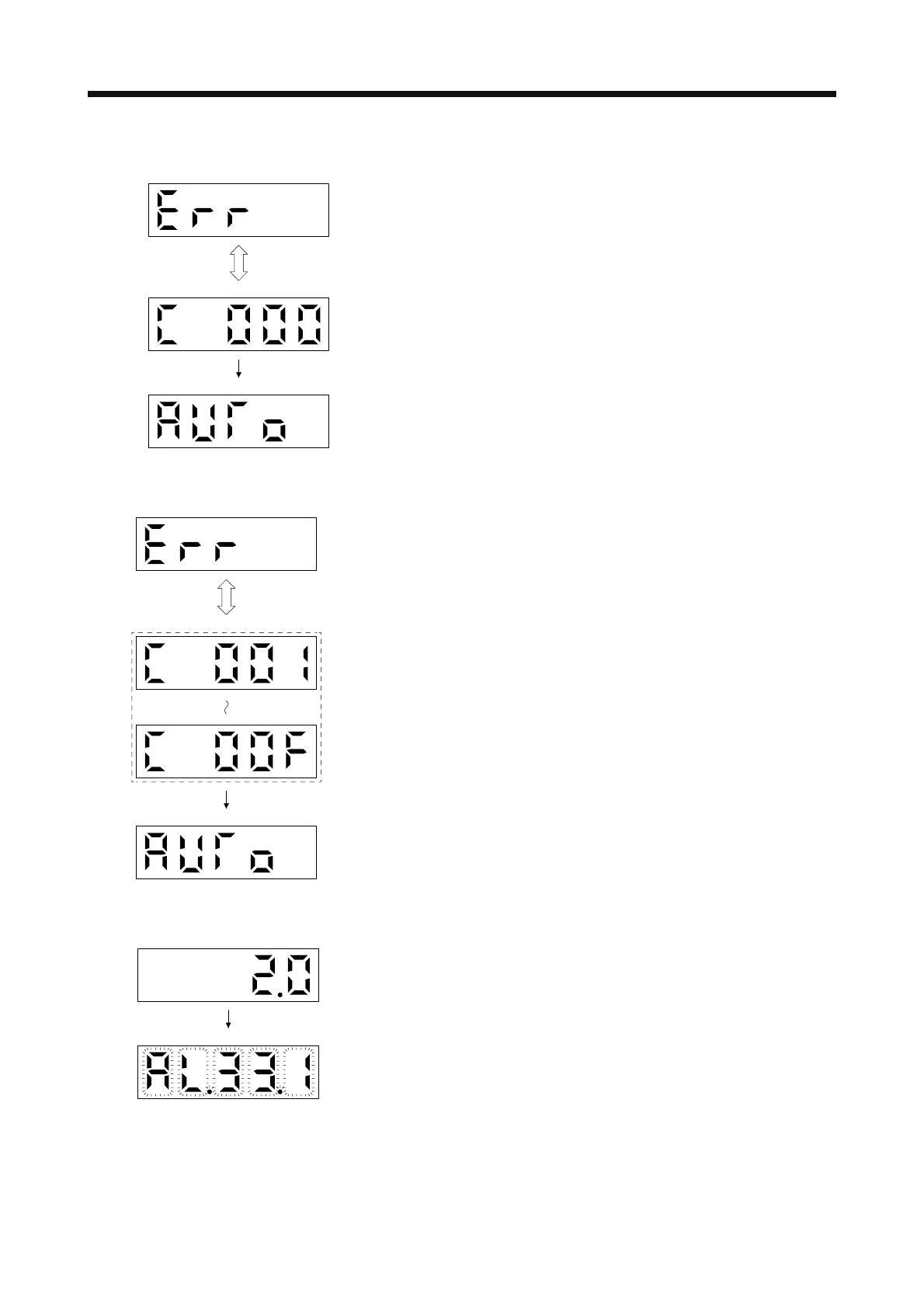

(c) One-touch tuning execution
The stop symbol and error code "C 000" (cancel during tuning) will be displayed by turns
with 2 s interval.
2 s interval
Error code
The one-touch tuning mode can be stopped by pushing the "SET" button regardless of
displayed item.
Stop symbol
Initial screen
Pushing the "SET" button will switch to the initial screen.
(d) If an error occur
Check the error cause referring table 6.2 of (1) (d) of this section.
2 s interval
Error code
If an error occurs during the one-touch tuning, the tuning will be forcibly terminated and the
stop symbol and error code from "C 001" to "C 00F" will be displayed by turns with 2 s
interval.
Stop symbol
Initial screen
Pushing the "SET" button will switch to the initial screen.
(e) If an alarm occur
If an alarm occurs during tuning, one-touch tuning will be forcibly terminated and the alarm
No. will be displayed.
One-touch tuning in progress
Alarm display
