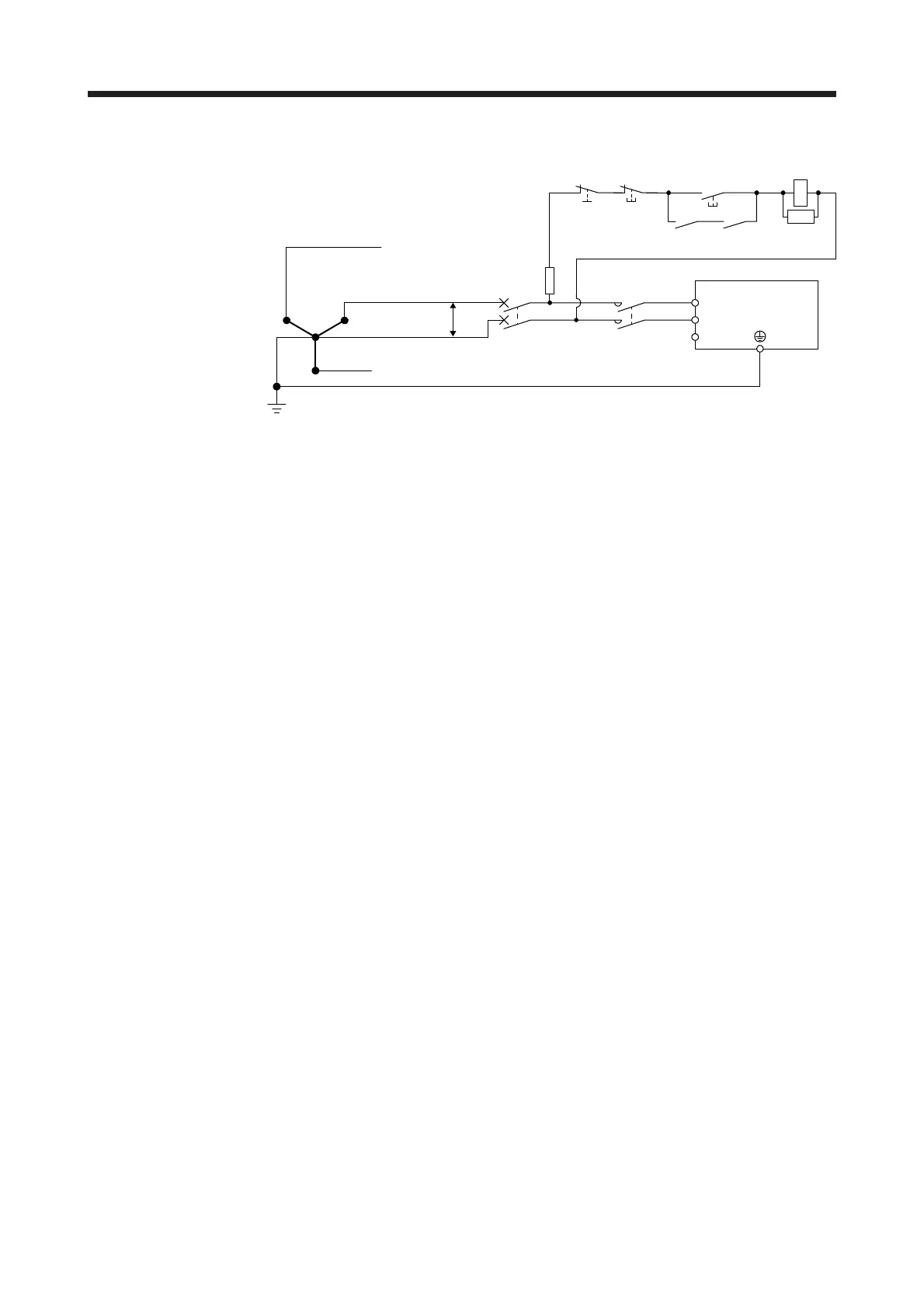

(2) For MR-JE-200B
Of
f
Emergency
stop switch
MC
SK
MC
Servo amplifier
MCCB CNP1 (Note 2)
L1
L2
L3
3-phase
400 V AC class
Do not connect anything.
Do not connect anything.
200 V AC to 240 V AC (Note 1)
Neutral
point
Alarm
MC
On
Note 1. If necessary, use a step-down transformer to decrease the power supply voltage to 200 V AC
to 240 V AC.
2. Connect the 1-phase 200 V AC to 240 V AC power supply to L1 and L2. One of the connecting
destinations is different from MR-JE-100B or less servo amplifier's.
