Features and controls
3-119
3
S-AWC operation display
N00542500022
The S-AWC operation status can be displayed on the informa-
tion screen in the multi-information display.
To display the status, press the multi-information meter switch
to change the information screen.
Refer to “Information screen (With ignition switch in the “ON”
position)” on page 3-168.

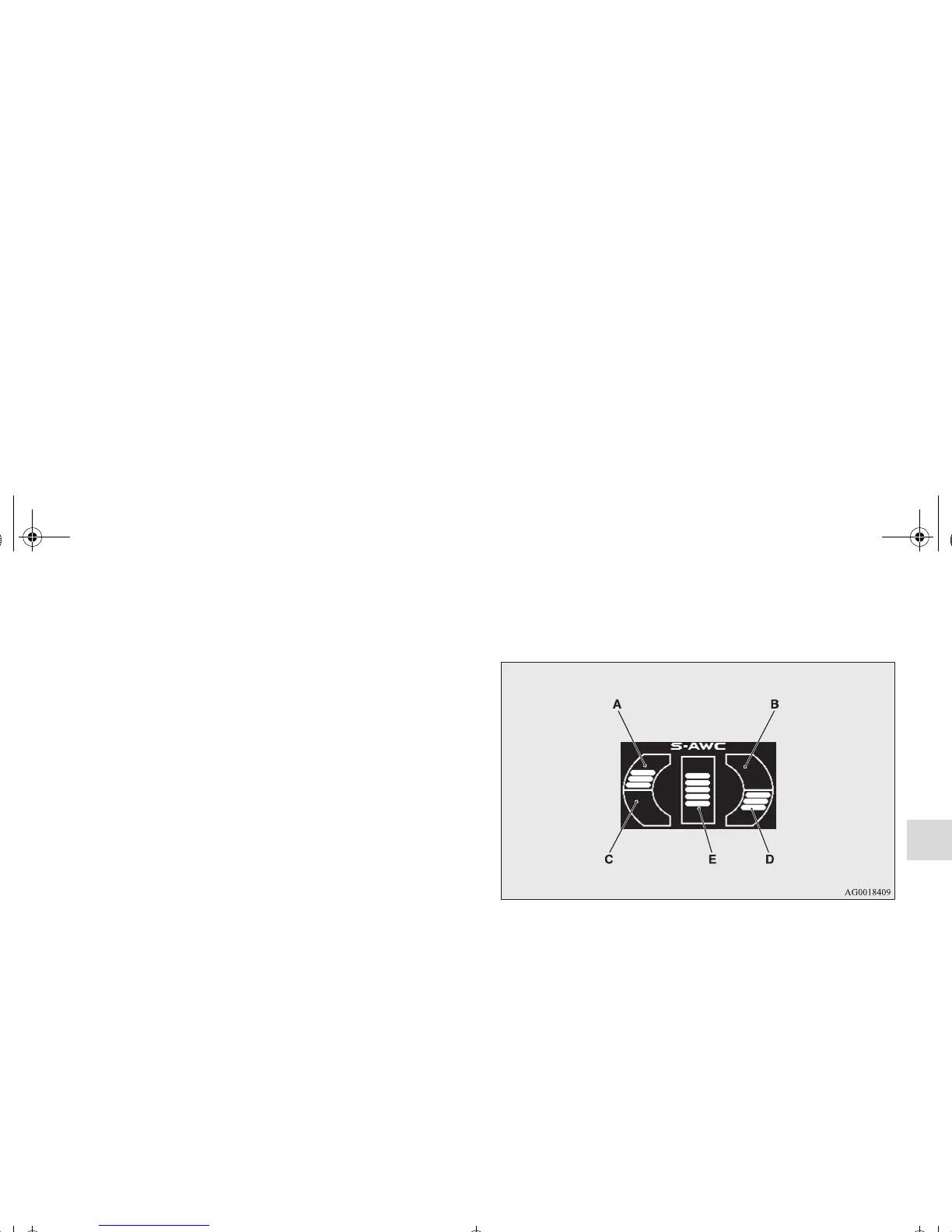

Display example
The S-AWC operation status is displayed.
Right-left torque control display
The status of control over driving torque to the right and left front
wheels will be displayed as a bar graph.
A, D- The status of control over clockwise turning
B, C- The status of control over counterclockwise turning
Front-rear torque control display
The status of control over driving torque to the front and rear
wheels will be displayed in section (E) of the meter as a bar
graph.
