7-14
Vehicle care and maintenance
7
Air cleaner filter
N00937900367
The air cleaner filter will get dirty and dusty from use and not
filter properly. Replace it with a new filter using the schedule
in the “WARRANTY AND MAINTENANCE MANUAL”.

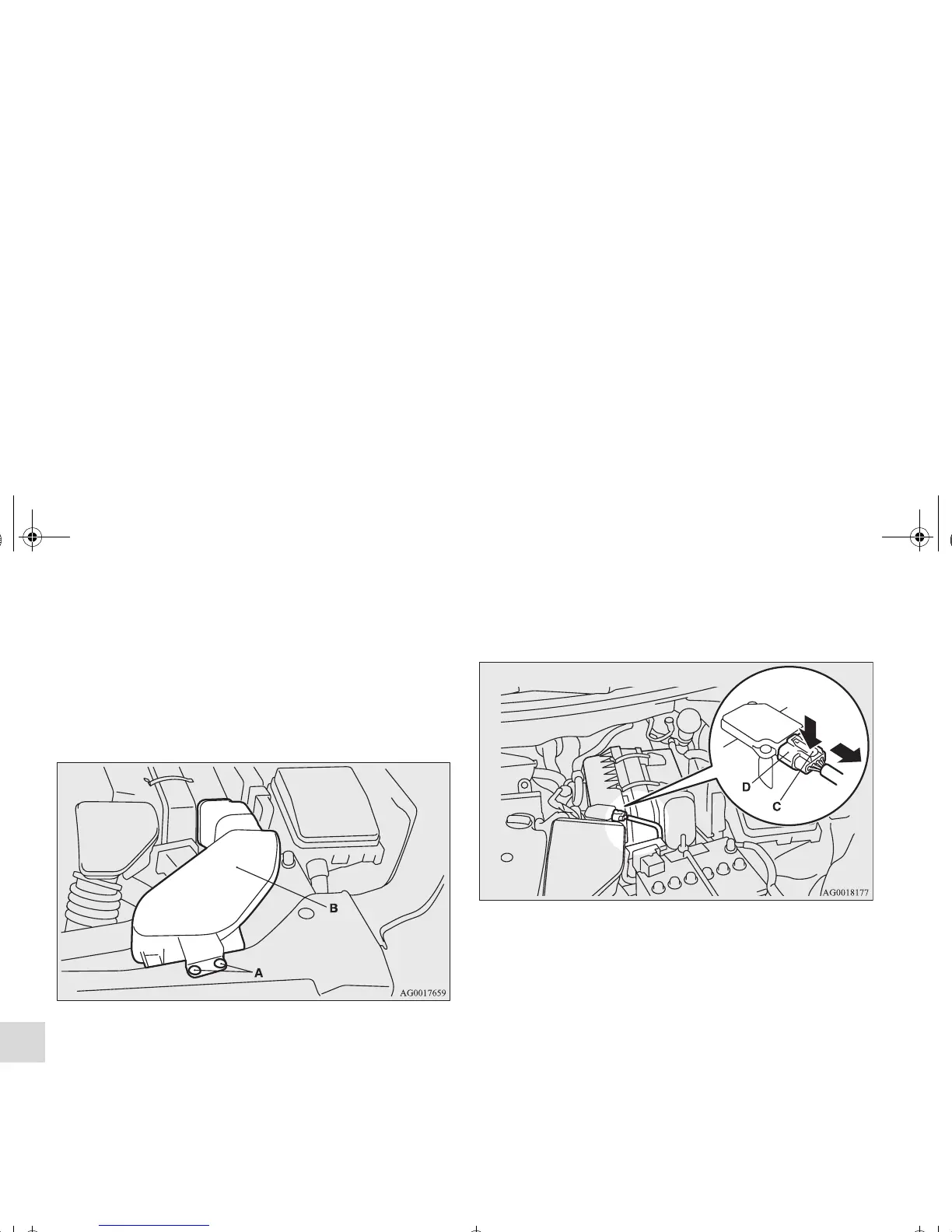

1. For 2.4 L models, remove the two clips (A), then remove
the duct (B).
2. For 2.4 L models, while holding down the tab (C), pull out
the connector (D).
