EN
5

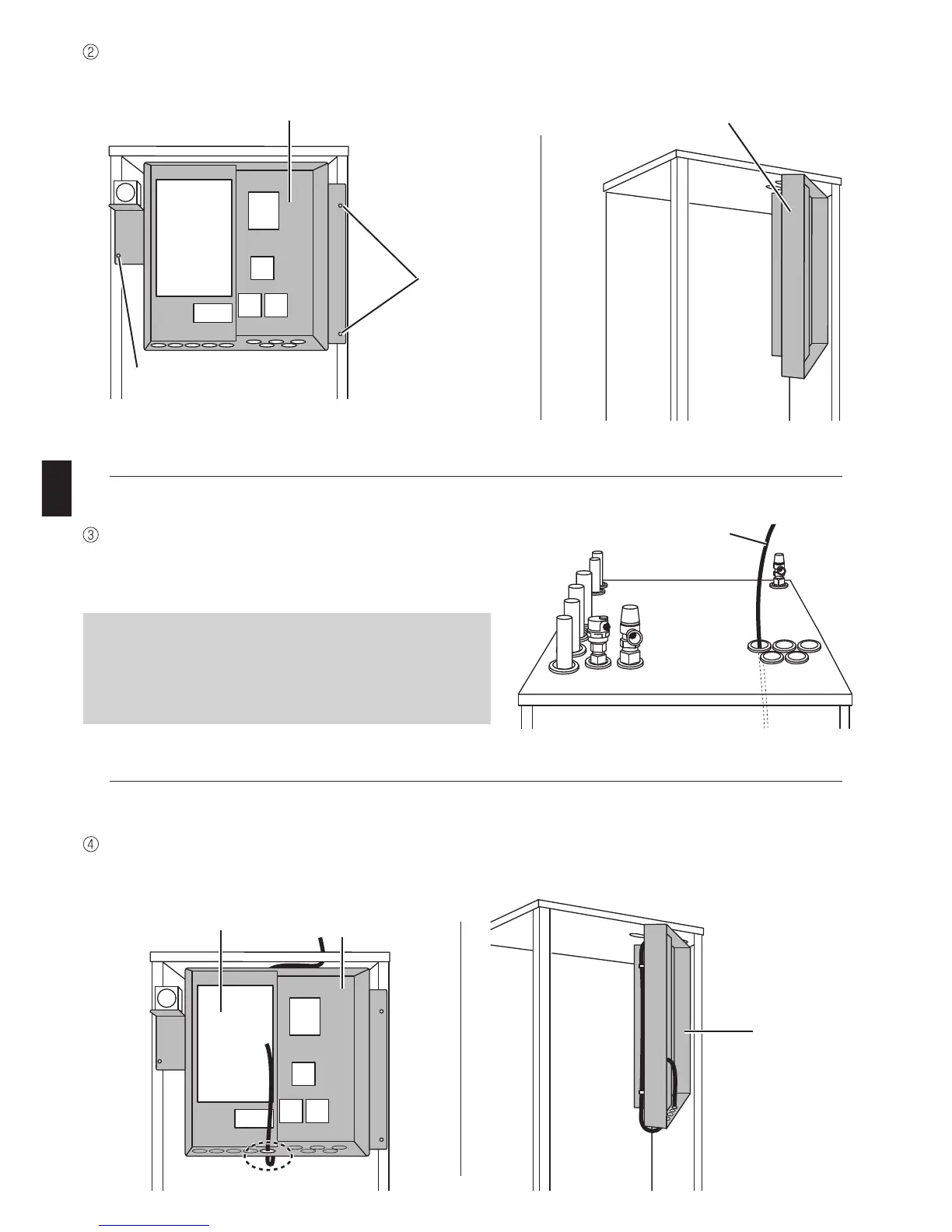

Run the receiver's cable into the cylinder unit
through the inlet as shown on the figure.
Remove the screw and pull the control and electrical box so that the control and electrical
box is swung toward you from left.
Control and electrical box
Control and electrical box
Screws
(2 positions)
Do not run the receiver's cable through an
inlet that a power cable goes through and
do not bundle the cable together with a
power cable.
Route the cable out the back of the control and electrical box, and run the cable into the box
through the shown inlet in the underside of the box.
Control and
electrical box
Control and
electrical box
Control board
Screw
(1 position)
Receivers cable
