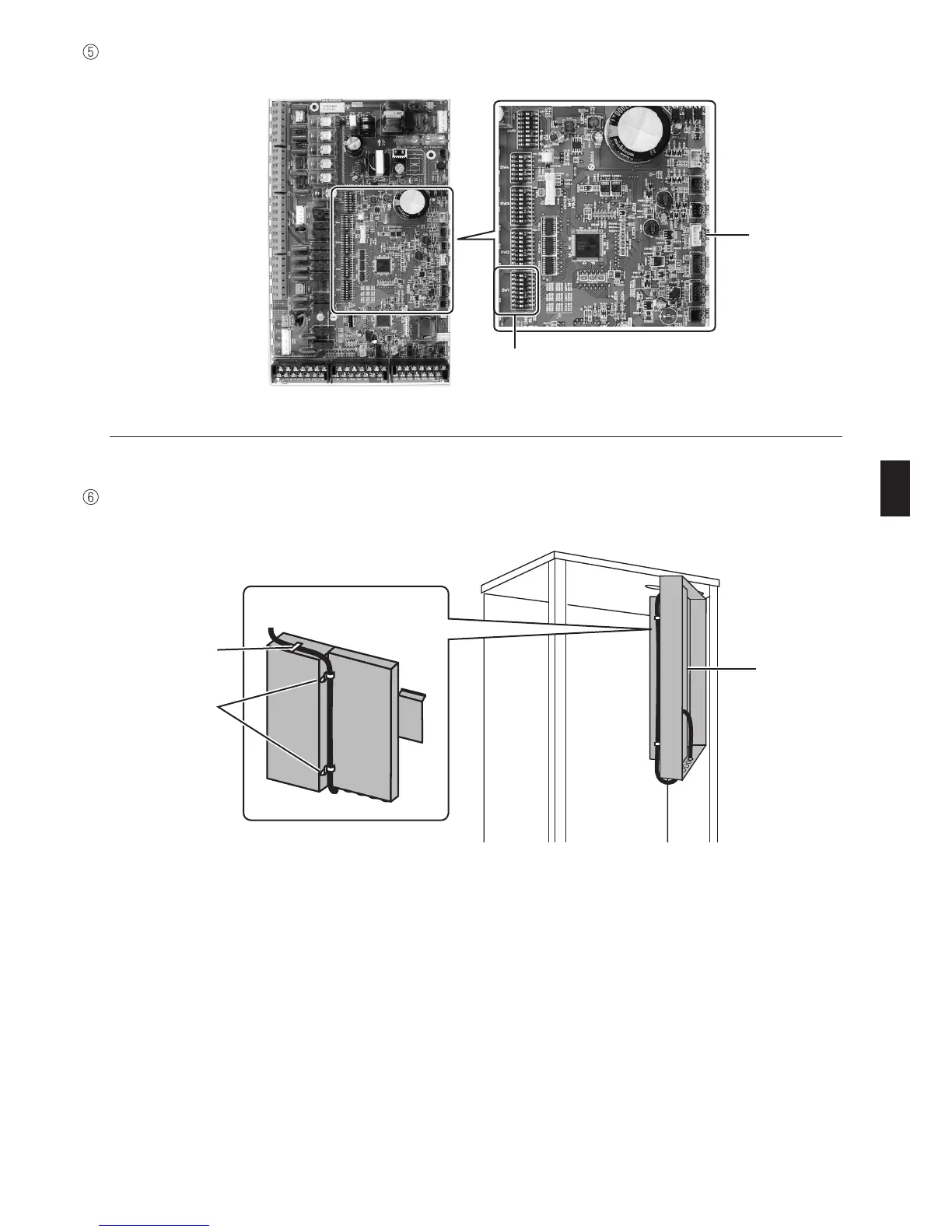

Connect the cable connector to the CNRF terminal on the control board. Switch ON SW1-8.
Remove excessive slack on the cable , then secure the cable with a cable fastener and 2 ca-
ble straps on the upper side and center on the back of control and electrical box.
CNRF
SW1
Control and
electrical box
Back view
Cable
straps
Cable
fastener
