－12－

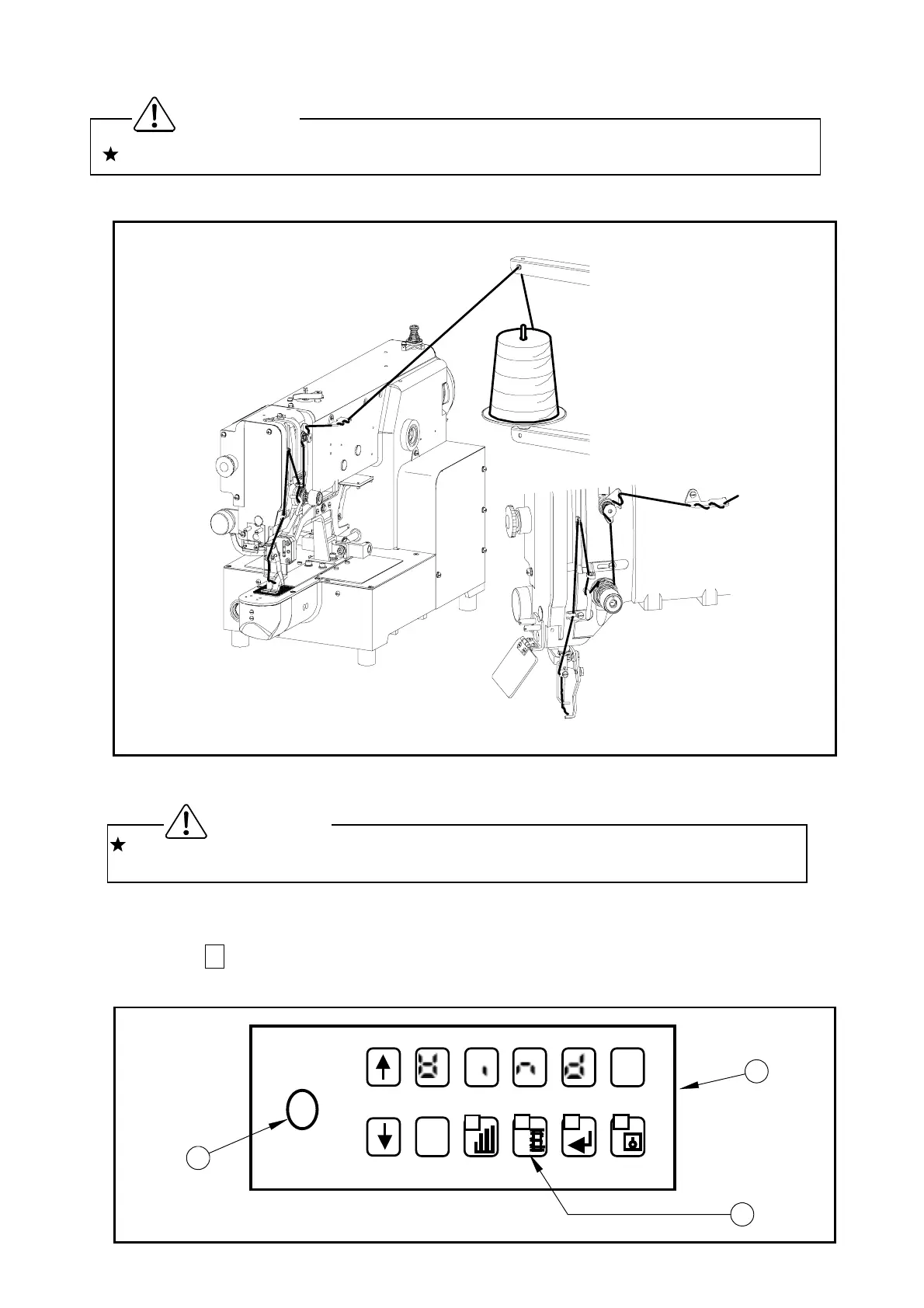

5-3 Threading the upper thread
Please thread the upper thread with referring to the below figures.
5-4 Winding the bobbin thread
(1) Turn the power switch ON.
(2) Press the foot switch (NO.8). Then the work holder (NO.9) goes down.
(3) Press Ｈ key(NO.2) in the Setting panel (NO.1) on the control box. Then the Work holder
moves original mechanical position.
1
3
2
LED4
LED3
H
HH
H
LED1 LED2 LED5
Ａ
ＡＡ
Ａ
B C D
F
FF
F
Please make sure to turn the power switch OFF before threading the upper thread.
Caution
Please make sure to pull the upper thread out of the needle before winding the bobbin
thread.
Caution
