8 - 21 8 - 21
MELSEC-Q
8 UTILITY PACKAGE (GX Configurator-MB)
8.6.1 X/Y Monitor/test
[Monitor/Test Purpose]
Monitor I/O signals and performs tests on output signals.
[Operating procedure]
Monitor/Test screen X/Y Monitor/test

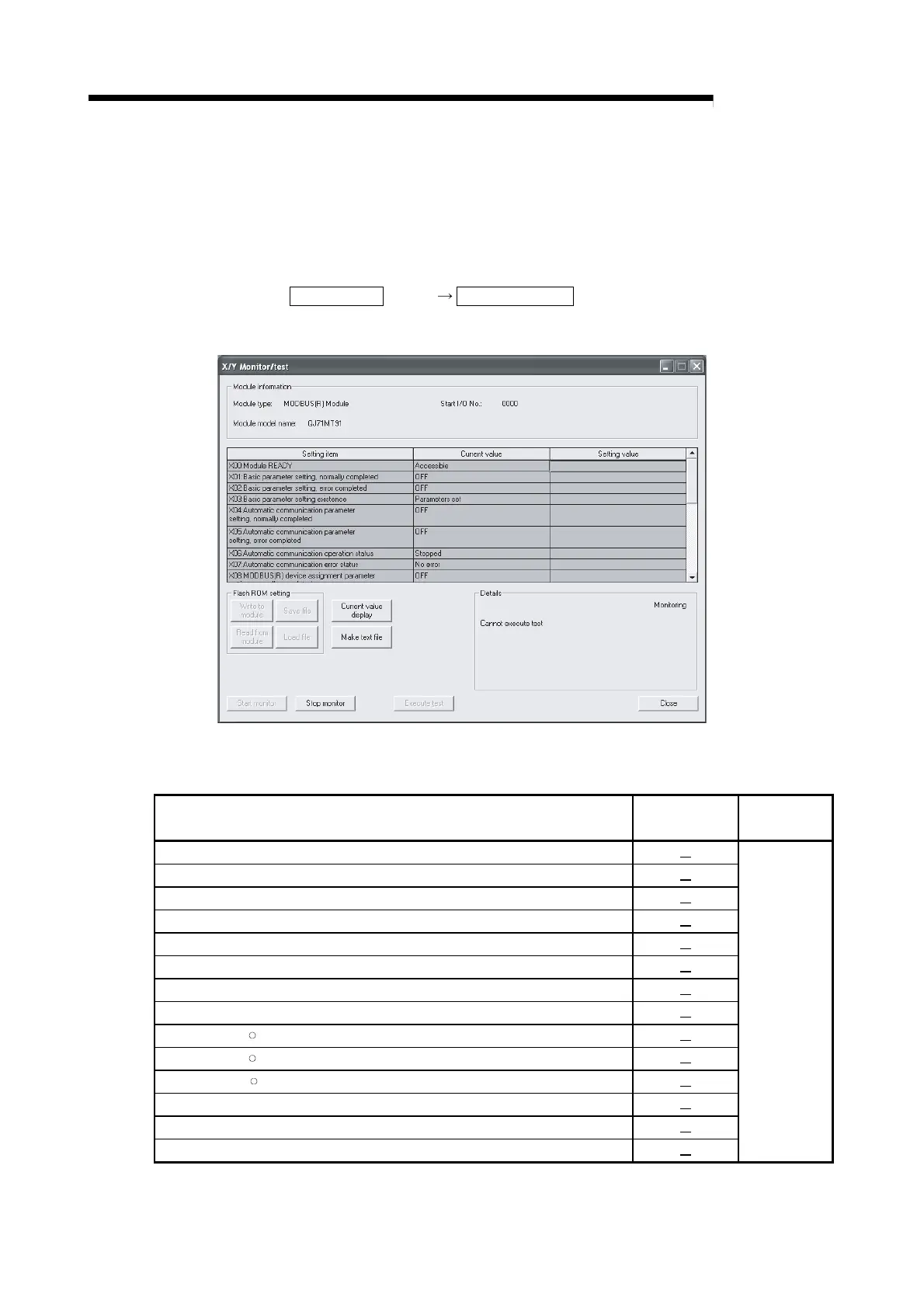

[Monitor/Test Screen]
[Monitor/Test Items]
(1) X: Input signals
Monitor/Test Item
Buffer memory
address
Reference
section
X00: Module READY
X01: Basic parameter setting, normally completed
X02: Basic parameter setting, error completed
X03: Basic parameter setting existence
X04: Automatic communication parameter setting, normally completed
X05: Automatic communication parameter setting, error completed
X06: Automatic communication operation status
X07: Automatic communication error status
X08: MODBUS
R
device assignment parameter setting, normally completed
X09: MODBUS
R
device assignment parameter setting, error completed
X0A: MODBUS
R
device assignment parameter setting existence
X1B: COM. ERR. LED status
X1C: PING test completed
X1F: Watch dog timer error
Section 3.2.1
To Next Page
