(b) PLC side I/F

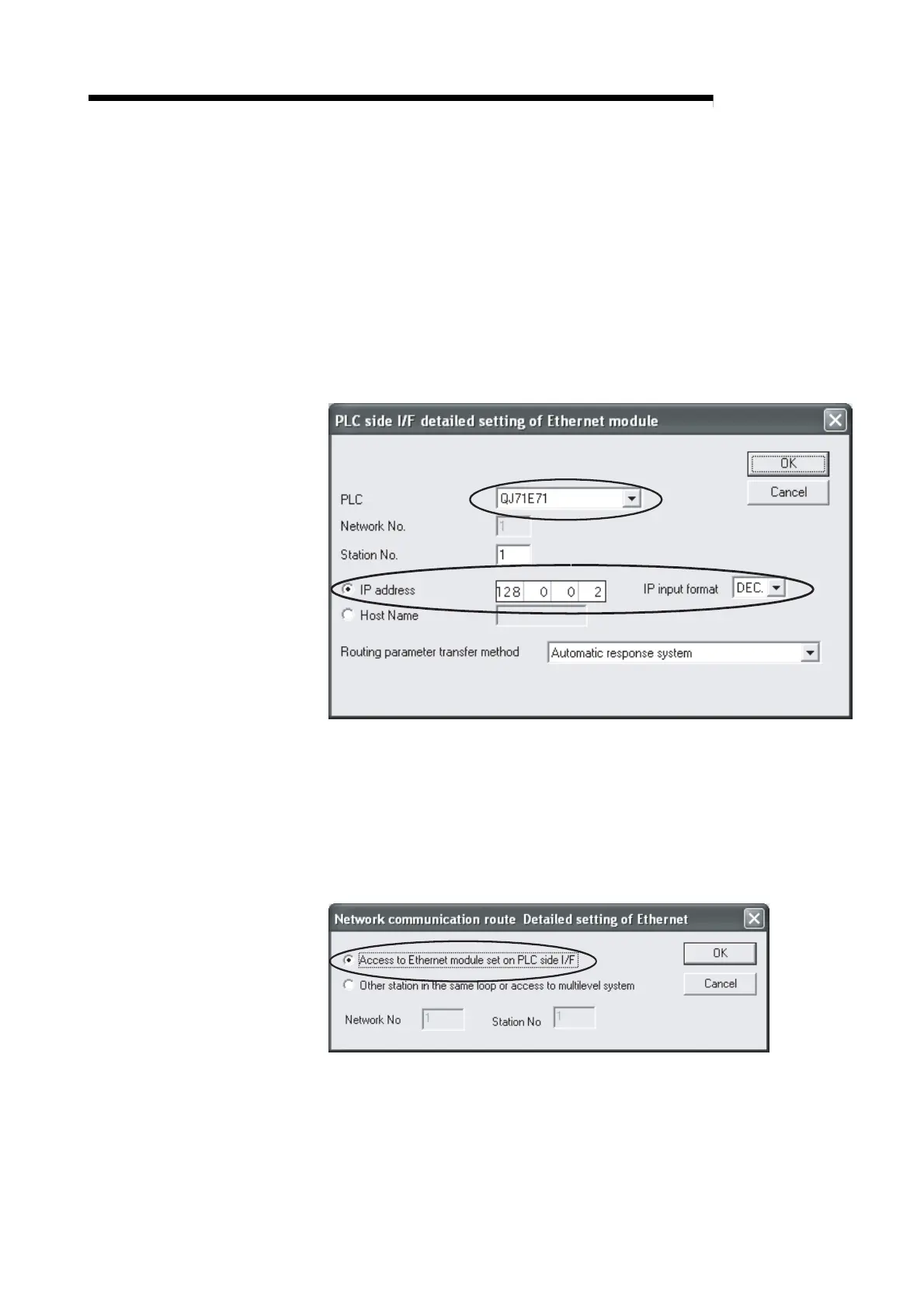

1) Select "Ethernet module" and double-click it to display the "PLC side
I/F detailed setting of Ethernet module" screen.
2) Set "PLC" and "IP address" on the "PLC side I/F detailed setting of
Ethernet module" screen.
• PLC • • • • • • • • • • Select "QJ71E71".
• IP address • • • • • Set the IP address of the QJ71MT91 to be
connected.
• IP input format • • • Select "DEC." or "HEX.".
3) Since "Station No." and "Routing parameter transfer method" are not
used, leave them as displayed on the screen.
(c) Other station
Select "Other station (Single network)".
(d) Network route
1) Select "Ethernet" and double-click it to display the "Network
communication route Detailed setting of Ethernet" screen.
2) Select "Access to Ethernet module set on PLC side I/F" on the
"Network communication route Detailed setting of Ethernet" screen.
To Next Page
