Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
ENGLISH

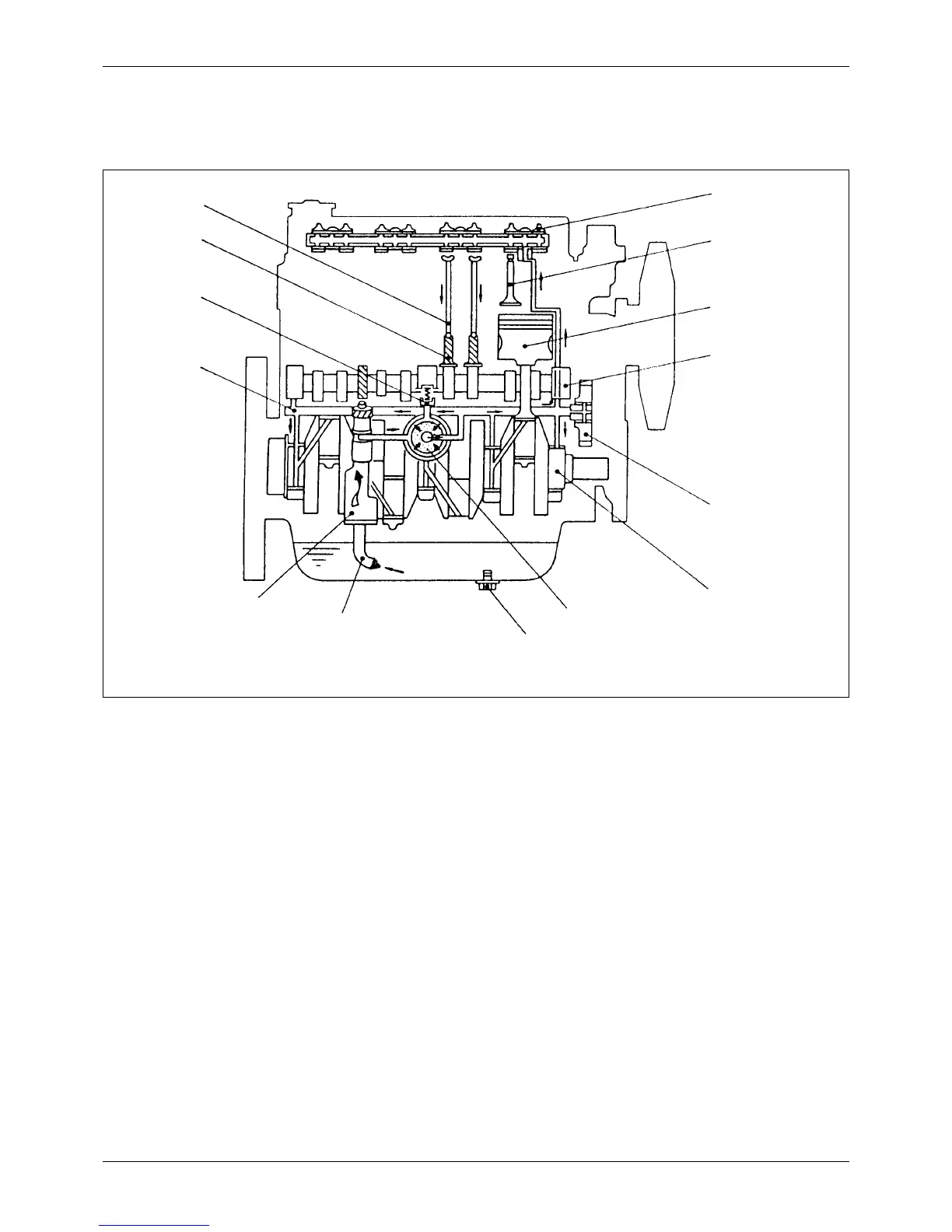

DESCRIPTION LUBRICATION SYSTEM
LUBRICATION SYSTEM
22 DESCRIPTION
Valve push rod
Tappet
Main gallery
Pressure relief
valve
Valve mechanism
Valve
Piston
Camshaft
Timing gear
Crankshaft
Oil pump
Oil strainer
Drain plug
Oil filter (with built-in
bypass valve)
