ALTERNATOR
ENGLISH
ELECTRICAL SYSTEM
28.3 Disassembly

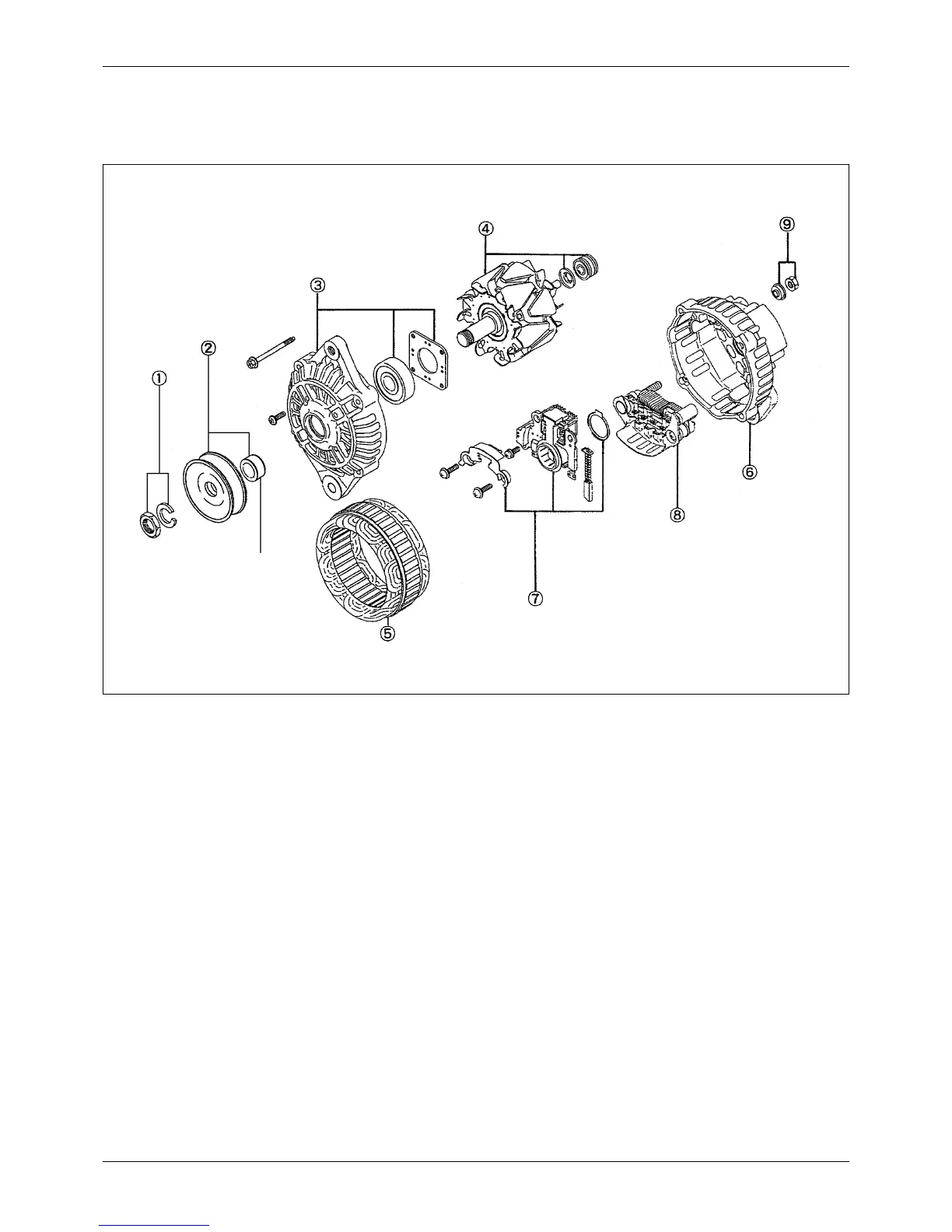

Disassembly sequence
1. Nut and washer
2. Pulley and spacer
3. Front bracket assembly
4. Rotor assembly
5. Stator
6. Rear bracket
7. Regulator assembly
8. Rectifier assembly
9. Nut set
Not provided in 24V-35A
(A3TN5776)
