Service Manual Mitsubishi SQ-Series diesel engines

Version 08/2004

OIL FILTER

ENGLISH

LUBRICATION SYSTEM

24 OIL FILTER

24.1 Inspection

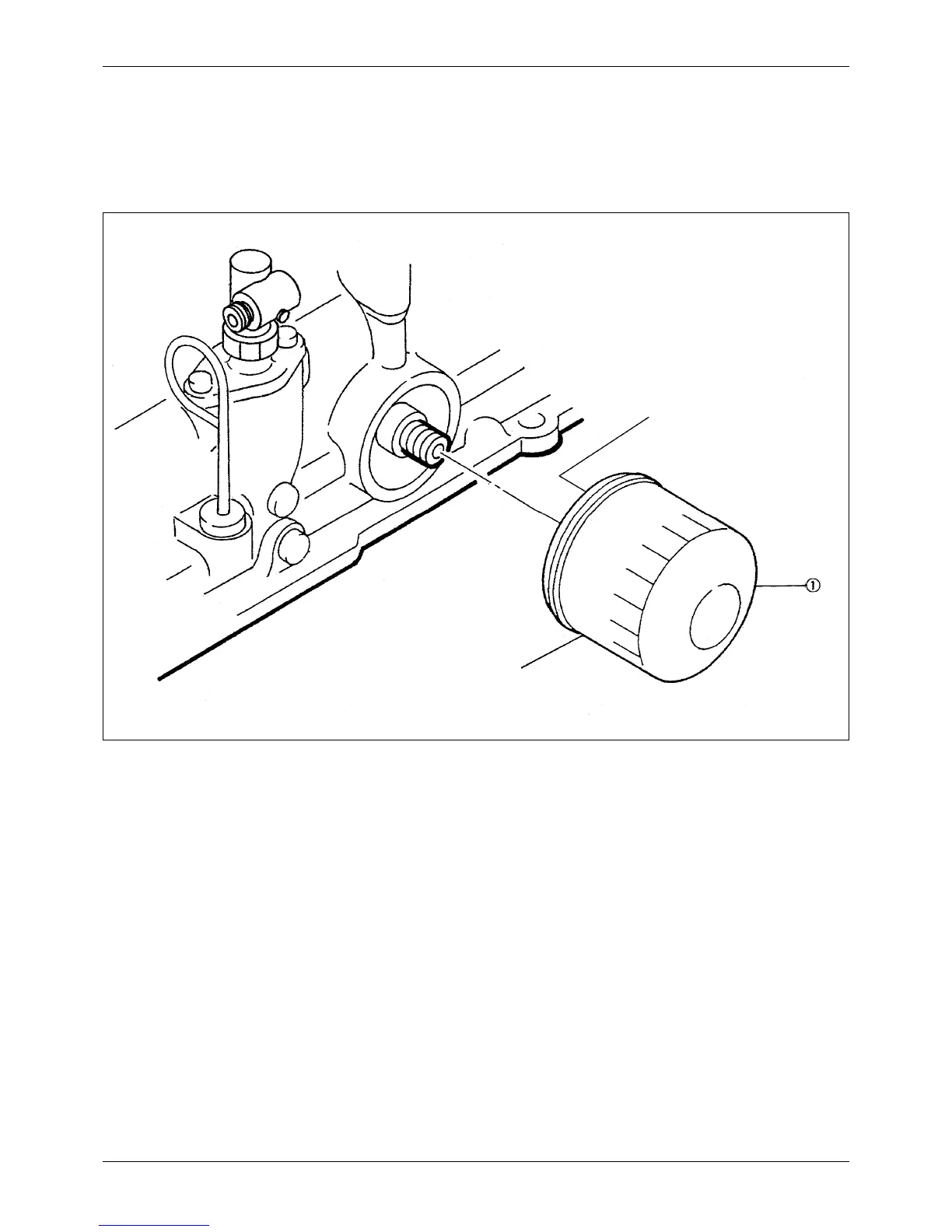

1. Oil filter

Apply engine oil to

O-ring at installation

Replace every 250 service hours
