Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
ENGLISH
PRESSURE RELIEF VALVE LUBRICATION SYSTEM
LUBRICATION SYSTEM
25 PRESSURE RELIEF
VALVE
25.1 Inspection
1. Check the valve and valve seat for condition. Also,
check the spring for damage.
2. Check the valve opening pressure (the oil
pressure when the engine is running at the rated
rpm). If the pressure is not correct, make an
adjustment by adding or removing shim. The
pressure tap (RP 1/8 thread (PS 1/8)) is located
near the oil filter.
Unit: kPa (kgf/cm
2
) [psi]

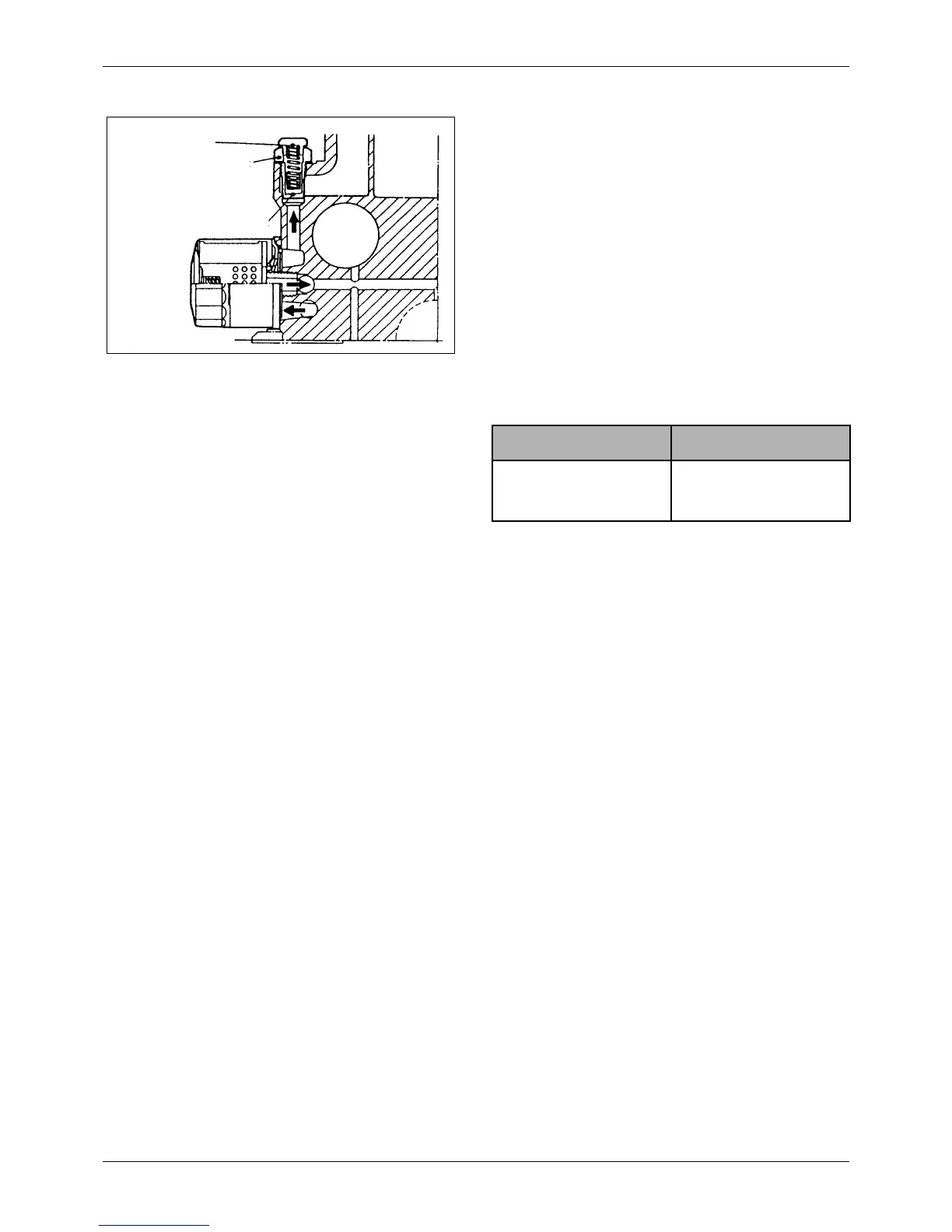

Figure 180 Pressure relief valve
Tightening torque:
49 ± 5 N·m
(5.0 ± 0.5 kgf·m)
[36 ± 4 lbf·ft]
Pressure relief valve
Shims
Item Assembly Standard
Valve opening pressure
343 ± 49
(3.5 ± 0.5)
[50 ± 7]
