39 / 174
Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
FLYWHEEL
ENGLISH
ENGINE MAIN PARTS
1. Removing flywheel
1) Have someone hold the crankshaft pulley with
a wrench to prevent the flywheel from turning
during removal.
2) Remove one of the bolts that hold the
flywheel.
3) Screw safety bar (M12 x 1.25 mm [0.47 x
0.049 in.]) in the bolt hole and remove the
remaining bolts.
4) Remove the flywheel from the crankshaft by
pulling it straight.
2. Removing flywheel housing
The flywheel housing is doweled. To remove the
housing, pull it as straight as possible.

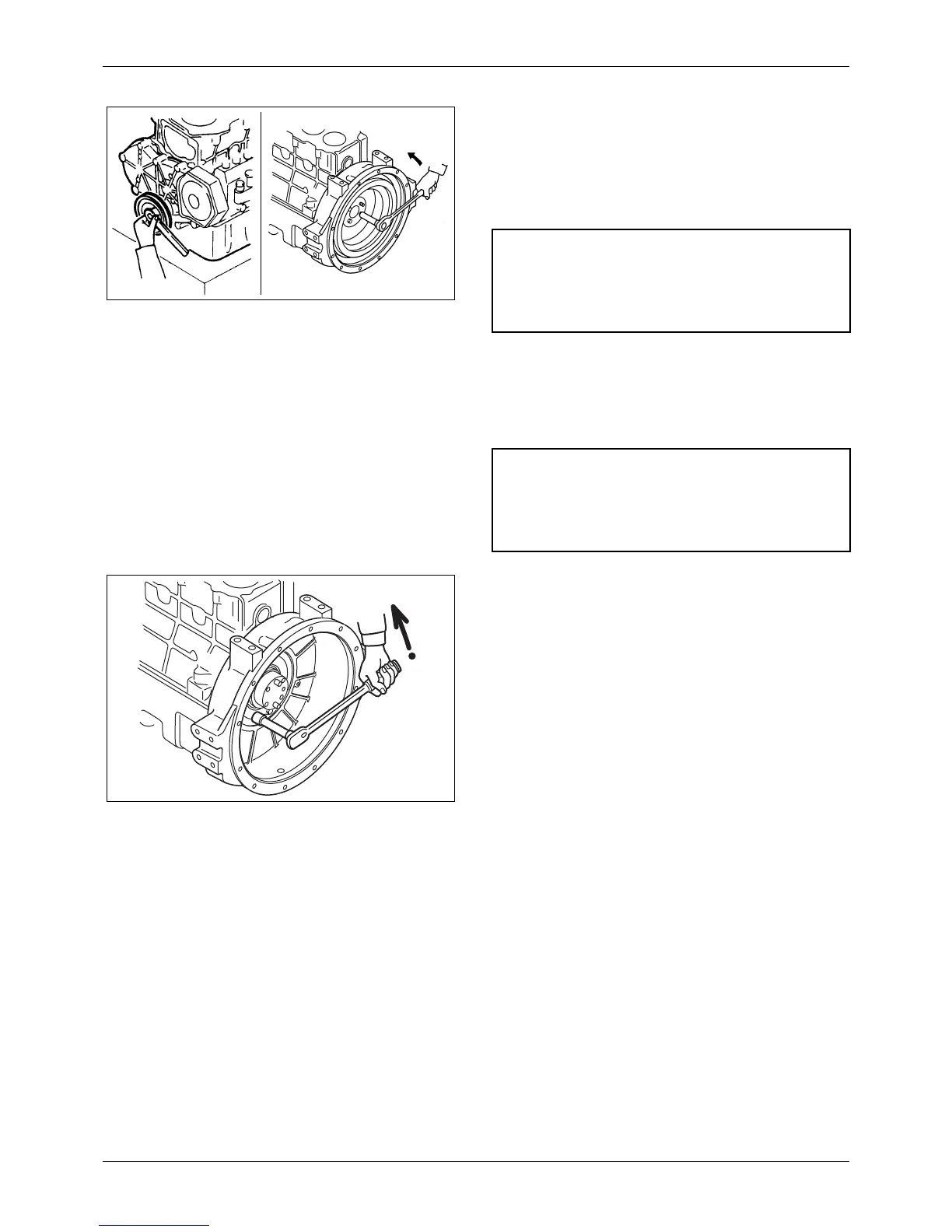

Figure 49 Removing flywheel
CAUTION
During removal, signal each other to avoid personal
injury.
CAUTION
When removing the flywheel, wear heavy gloves to
protect your hands.
Figure 50 Removing flywheel housing
