Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
ENGLISH
PISTONS, CONNECTING RODS,
CRANKSHAFT AND CRANKCASE ENGINE MAIN PARTS
10. Laying crankcase on its side
Lay the crankcase on its side.
11. Apply engine oil to bores
Clean the bores with a clean rag and apply engine
oil to the bores.
12. Installing connecting rod bearing
1) Install the connecting rod cap bolts in the big-
end of the connecting rod so the flats of their
heads fit on the connecting rod properly.
2) Install the tipper half of the connecting rod
bearing in the big-end of the connecting rod.
Make sure the tab on the back of the bearing
is in the notch of the connecting rod.

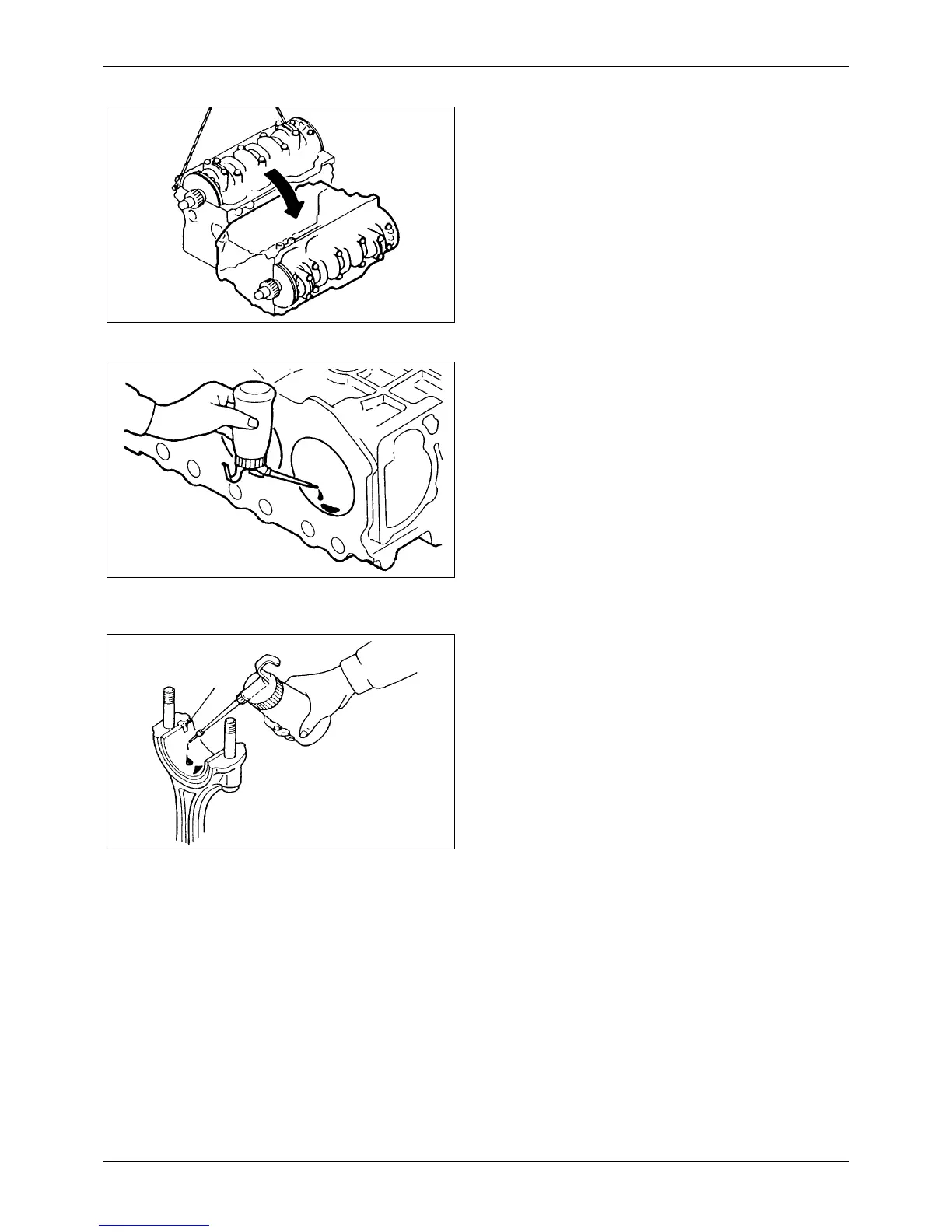

Figure 147 Laying crankcase on its side
Figure 148 Apply engine oil to bores
Apply engine oil
Figure 149 Installing connecting rod bearing
Tab and notch
Apply engine oil
