Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
DISASSEMBLY
ENGLISH
FUEL SYSTEM
2) Remove the front end cover from the engine.
3) Put marks on the fuel injection pump drive
gear and idler gear.
4) Unscrew the bolts that hold the fuel injection
pump flange to the front end plate and remove
the pump and flange from the end plate.

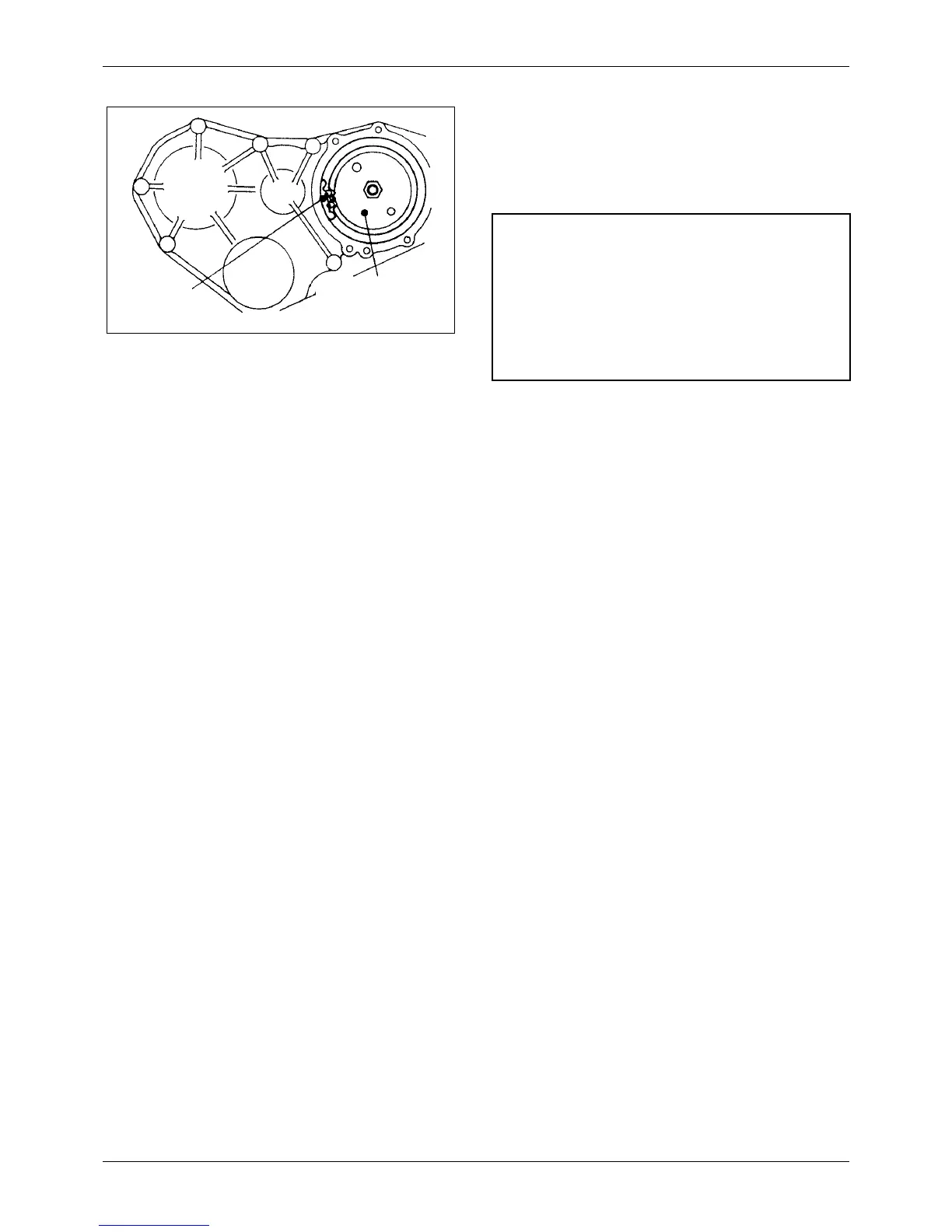

Figure 162 Removing fuel injection pump (2)
Idler gear
Fuel injection
pump drive gear
NOTE
a Do not attempt to turn the engine after
removing the injection pump from the
engine.
b To remove the fuel injection pump drive
gear, loosen its nut with the pump on the
engine.
