EN-58

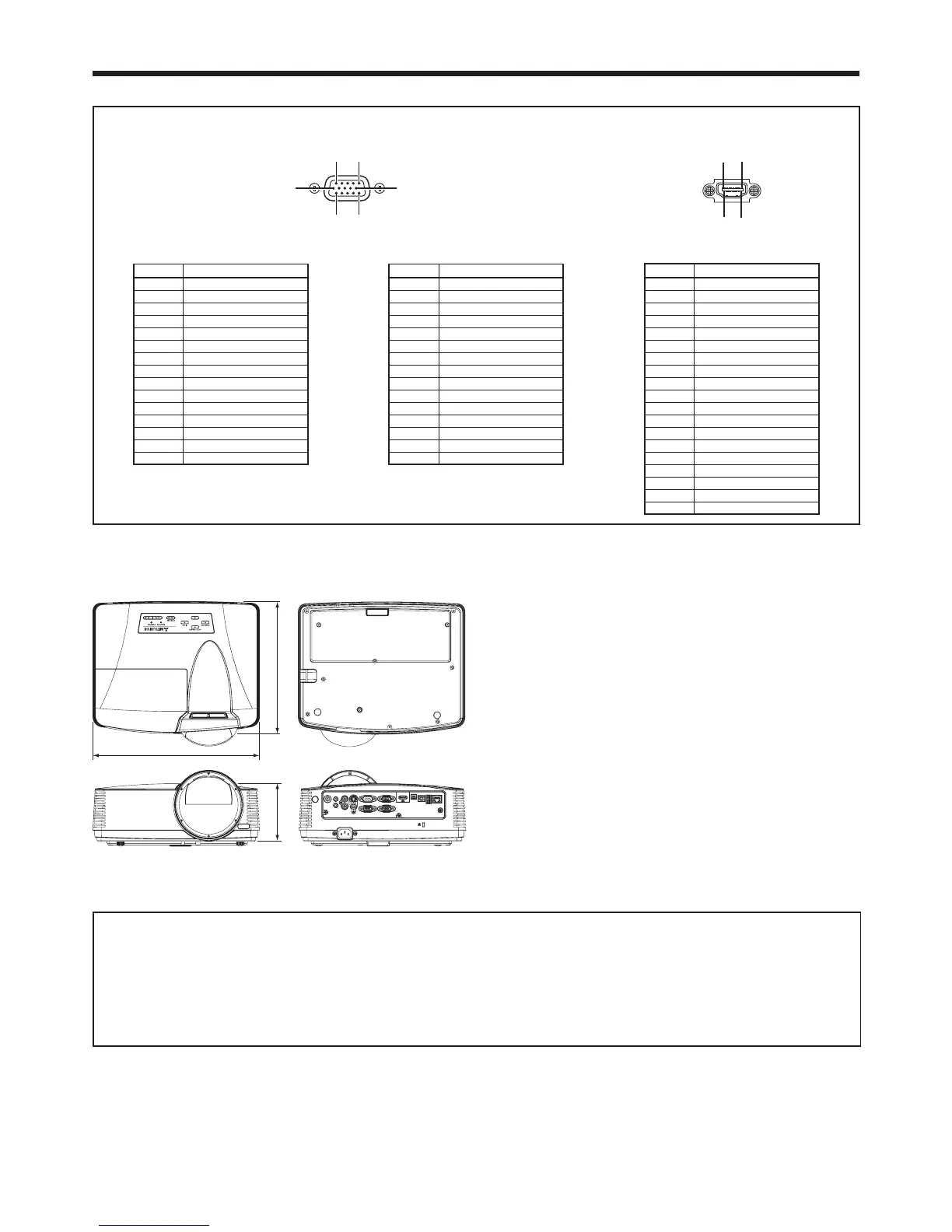

Connectors
COMPUTER IN, MONITOR OUT (Mini D-SUB 15-pin)
15
11
6
10
15
HDMI (HDMI 19-pin)
19
1
2
18
COMPUTER IN
Pin No. Spec.
1 R (RED)/C
R
2 G (GREEN)/Y
3 B (BLUE)/CB
4 GND
5 GND
6 GND
7 GND
8 GND
9 DDC 5V
10 GND
11 GND
12 DDC Data
13 HD/CS
14 VD
15 DDC Clock
MONITOR OUT
Pin No. Spec.
1 R (RED)/C
R
2 G (GREEN)/Y
3 B (BLUE)/C
B
4 -
5 GND
6 GND
7 GND
8 GND
9 -
10 GND
11 -
12 -
13 HD/CS
14 VD
15 -
Pin No. Spec.
1 TMDSData2+
2 TMDS Data 2 Shield
3 TMDS Data 2 -
4 TMDSData1+
5 TMDS Data1 Shield
6 TMDS Data 1 -
7 TMDSData0+
8 TMDS Data 0 Shield
9 TMDS Data 0 -
10 TMDSClock+
11 TMDS Clock Shield
12 TMDS Clock -
13 CEC
14 -
15 SCL
16 SDA
17 DDC Ground
18 +5VPower
19 Hot Plug Detect
Dimension drawings (unit: mm)
258
113
325
What’s included in the box
AC power cord* for US 02552-0312-00
for EU 02552-0310-00
for UK 02552-0311-00
for Australia 02552-0309-00
for Korea 02552-0310-00
1 computer cable J2552-0072-05
1 USB cable J2551-0065-01
1 remote control
1 Safety Manual/Quick Start up
1 CD-ROM
2 battery
1 lens cap
1 lamp replacement attachment
1 interactive pen kit (RC-380P1)
* One of power cords for the U.S., Europe, U.K., Australia, and Korea is provided appropriately.
Replacement part (option/not included in the box)
Spare lamp: VLT-XD560LP
