Mitsubishi X50 User Manual

´ EN – 11
ENGLISH

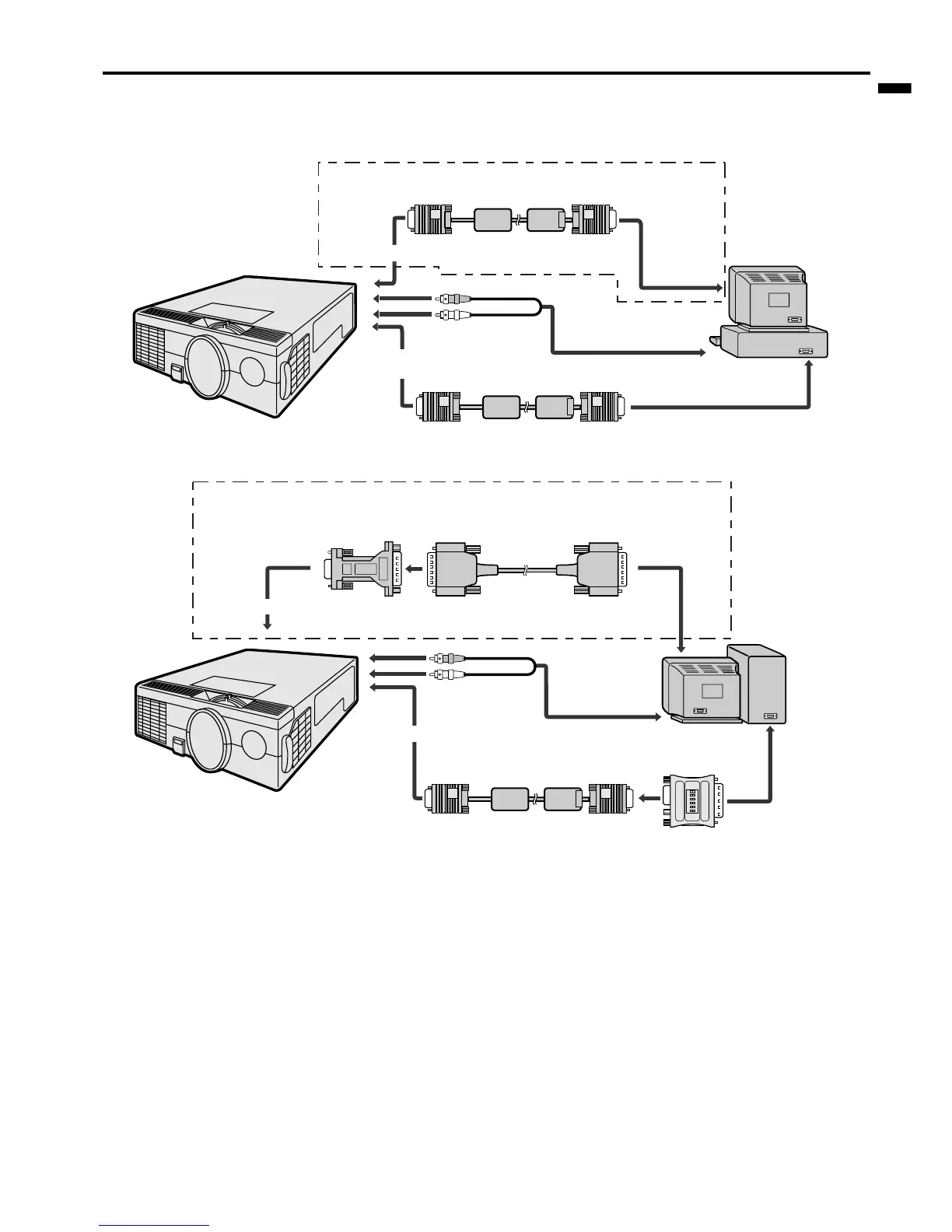

Connection
For IBM PC or IBM PC compatibles
to monitor
port
computer
PC audio cable
(optional)
RGB cable for PC
RGB cable for PC
(optional)
to AUDIO IN
to PC audio
output
to PC
monitor
to COMPUTER
IN
to COMPUTER OUT
When outputting to both a PC monitor and the projector.
For Macintosh
to video port
computer
MAC adapter for
RGB cable (Optional)
Monitor Conversion
adapter (optional)
RGB cable for PC
Monitor cable
(optional)
to AUDIO IN
to PC audio
output
to COMPUTER IN
to COMPUTER OUT
1 2 3 4 5 6
ON DIP
PC audio
cable (optional)
When outputting to both a PC monitor and the projector.
to PC
monitor
Projector + Personal computer
Important:
• Connectors or analog RGB output adapters may be necessary depending on the PC connected to this projector.
Please contact your dealer.
• The audio input for this projector is a stereo pin jack. (Speaker output is mono.) Please check the available
cable for the audio input terminal of the PC. Some personal computer may not have the audio output terminal.
• Select AUDIO MODE 1 to hear and to sound for the COMPUTER. (Refer to page 16).
• When connecting audio output of a personal computer which audio output is mono, connect to the audio input
L terminal.
For using Macintosh
• A monitor output adapter is necessary for a Macintosh if it has no video port. Please contact your dealer.
• A MAC adapter for RGB cable may be necessary depending on the personal computer connected to this projec-
tor. Please contact your dealer.
