Mitsubishi X50 - Overview

EN – 6

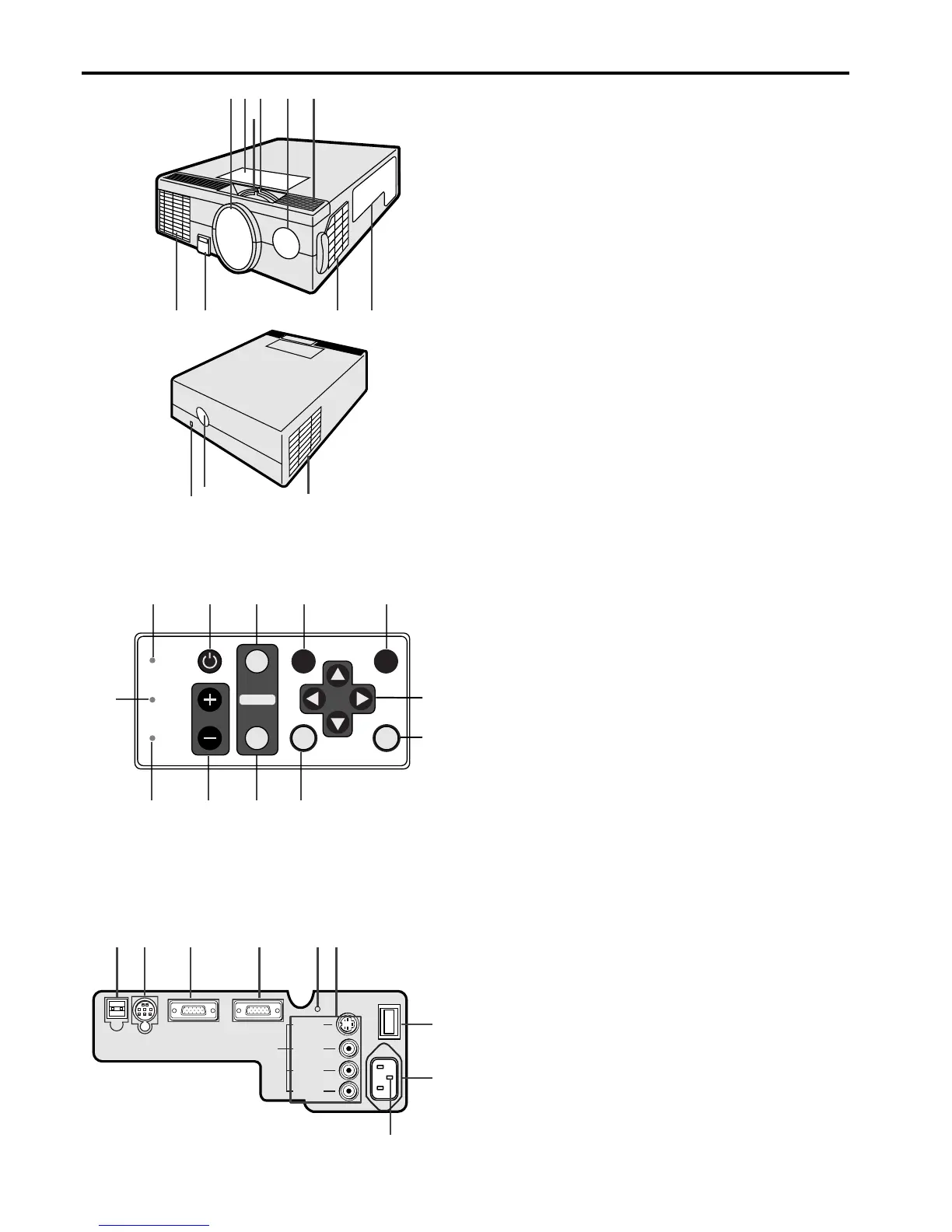

Overview
1
2345
89101112
6
7
POWER
LAMP
VOLUME
TEMP
VIDEO
ENTER
MUTE
MENU
SOURCE
COMPUTER
AUTO POSITION
56910
314
11
12
13
8
7
2
1
2
3
456789
OI
S-VIDEO
VIDEO
AUDIO L
(MONO)
AUDIO R
AC IN
MAIN
VIDEO IN
COMPUTER INCOMPUTER OUT
RS-232CUSB
Control panel
Terminal board
1 Air inlet grill (Front)
2 Front height adjuster button
3 Air inlet grill (Side)
4 Terminal board
5 Speaker
6 Remote control sensor (Front)
7 Zoom ring
8 Focus ring
9 Control panel
10 Lens
11 Kensington Security Lock Standard
connector
12 Remote control sensor (Rear)
13 Air outlet grill
1 LAMP indicator
2 TEMP (temperature) indicator
3 + , – (VOLUME) button
4 VIDEO button
5 MENU button
6 ENTER button
7 Direction buttons
8 MUTE button
9 AUTO POSITION button
10 COMPUTER button
11 Power button
12 Power indicator
1 Ground terminal
2 Power jack
3 Main power
– : ON
O : OFF
4 Video/audio input terminals
5 Reset button
6 COMPUTER IN terminal (D-SUB mini 15P)
7 COMPUTER OUT terminal (D-SUB mini 15P)
8 RS-232C (DIN 8P) terminal
9 USB terminal
