2 Setup
8
No. 99MBC109B

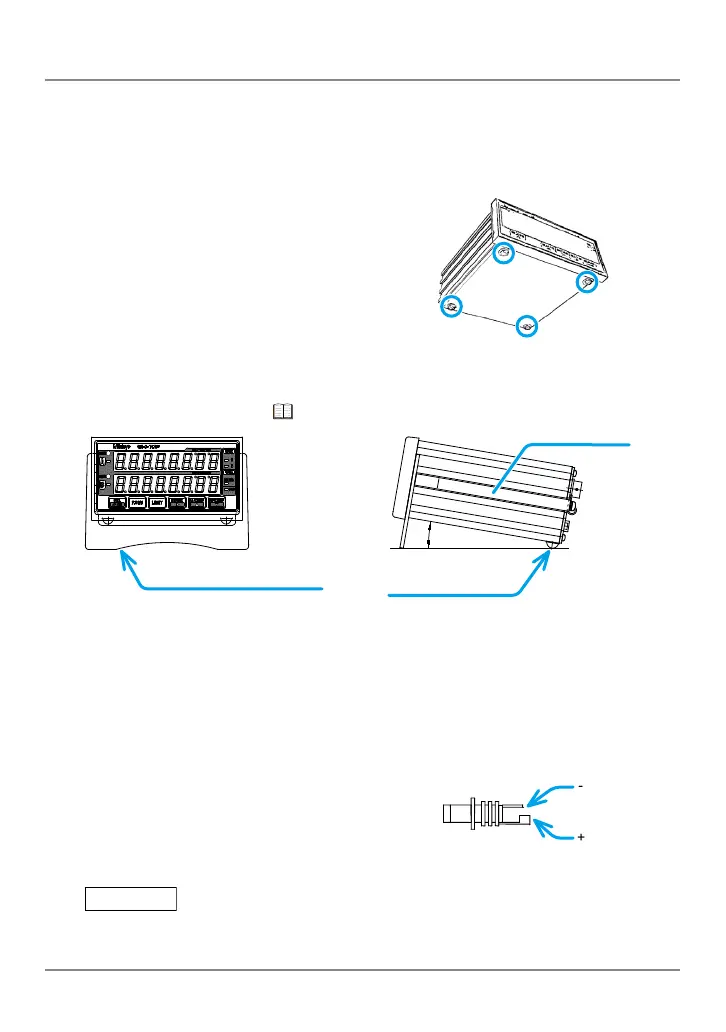

2.2.2 Placing on a Desk
Placing the Counter at on a desk
Attach the supplied rubber feet (4 pieces) to the points marked by circles in the
gure below to prevent slipping and to minimize vibration.
Tips
This product cannot be mounted in a panel with
the rubber feet attached.
Placing the Counter at an incline
Using the xing brackets, attach the supplied stand to the Counter. The
procedure for attaching the supplied xing brackets is the same as for mounting
on a panel. Use 6 washers.
"2.2.1 Mounting on a Panel" (page 7)
Fixing brackets
Stand (standard accessory)
Rubber foot
(standard accessory)
2.3
Connections
2.3.1 Power Source
Use the supplied AC adapter and the supplied AC cable. If you will not use the
supplied AC adapter, prepare a DC power source (voltage: 12 V to 24 V, output
current: 1 A or more) for each Counter. Solder the power cable to the terminals of
the supplied DC plug as shown in the gure below.
Tips
If you use a commercial power source, use a
power cable with a length of 30 m or shorter. Avoid
outdoor wiring.
Never use this power source with other electric equipment that runs at a high voltage
and/or large current.
- V
+ V
To Next Page
