4 Basic Operations
31
No. 99MBC109B
Tips
Each time you press [SEL], the blinking switches between Display A and Display B.
"4.1 Switching Between Display A and B (2-Axis Models Only)" (page 25)
2
Press [LIMIT].
»

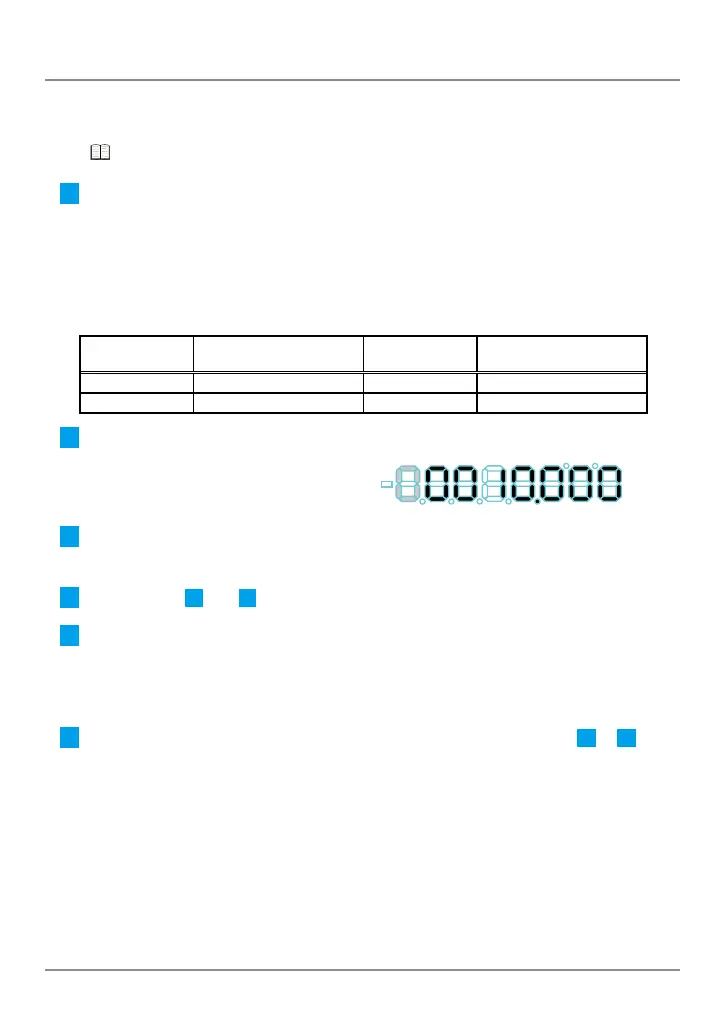

The Tolerance judgment indicator will light in amber. (Tolerance value S1 will be
selected.)
Tips
Tolerance values are set in the order S1, S2, S3, S4. The Tolerance judgment indicator
displays as follows. (The tolerance value to be set will be selected.)
Tolerance
value
Tolerance judgment
indicator
Tolerance
value
Tolerance judgment
indicator
S1 Amber indicator on S2 Amber indicator blinks
S3 Red indicator blinks S4 Red indicator on
3
Press [MODE].
» The input digit will shift to the right.
4
Press [A_ZERO]/[ZERO] or [B_ZERO].
»
The tolerance value will be modied.
5
Repeat steps
3
and
4
until you have set the desired tolerance value.
6
Press [LIMIT].
»
Tolerance value S1 will be applied.
»
The color of the Tolerance judgment indicator will change to the color of the
tolerance value that is to be set next.
7
Set the tolerance value in order for S2, S3, and S4 as explained in steps
3 to 6 .
»
The tolerance values S2, S3, and S4 will be applied, and the Counter will return to
the Counter display.
Tips
An error will occur unless S1 < S2 < S3 < S4 or S1 = S2 = S3 = S4.
