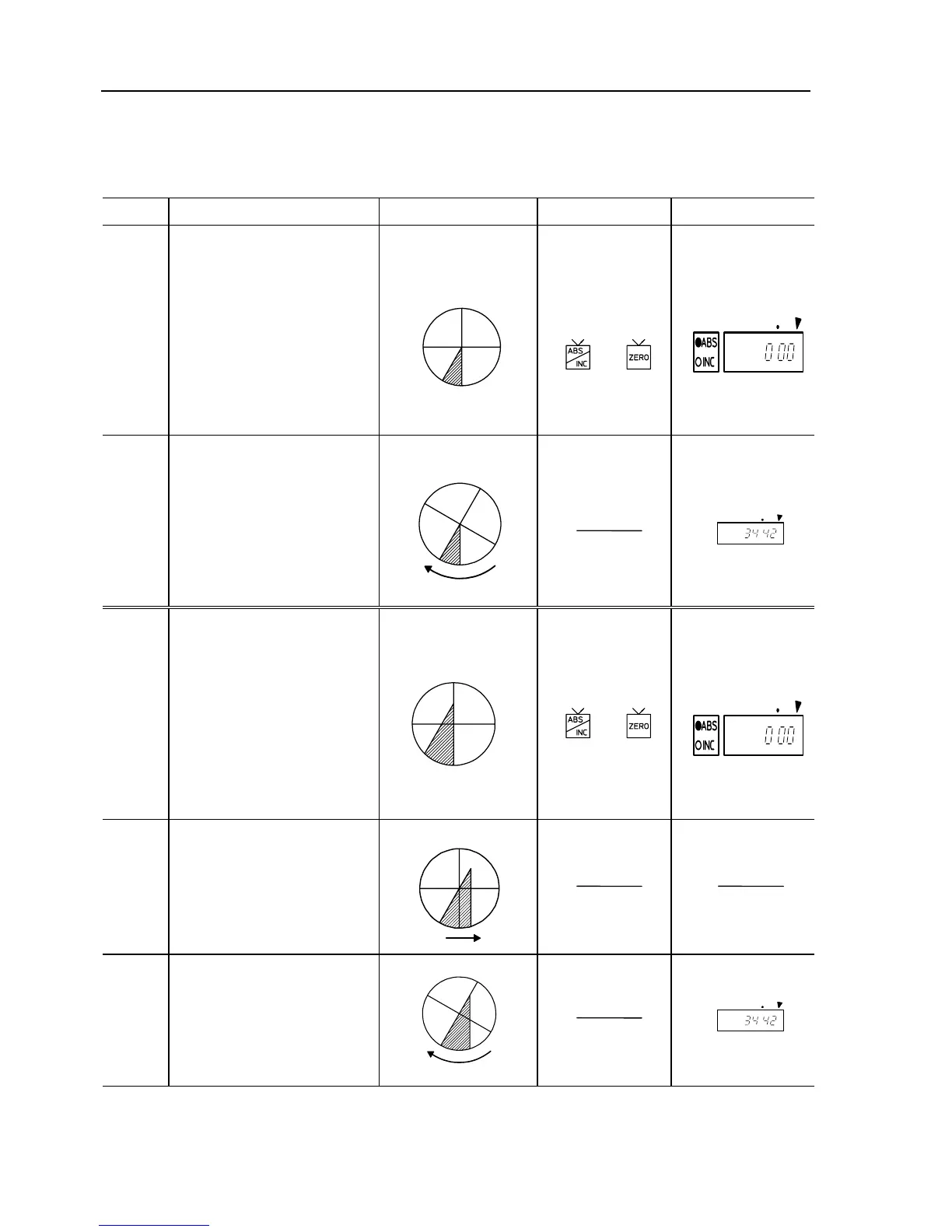

• Measuring in ABS mode
(Angle counter setting : 1')
Step Procedure Screen Counter Display
1
Align the vertrex of the angle
to be measured with the
intersection of the cross-hair
lines, then rotate the
protractor screen to align
one edge of the angle with a
cross-hair line. Set the angle
counter to ABS mode and
establish a datum on the
edge by setting the counter
to Zero.
2
Rotate the protractor screen
to align the other edge of the
angle with the same
cross-hair line used in (1).
The measured angle is
displayed on the angle
counter.
1
It is also possible to measure
angles by using stage cross
travel to align the edges with
the cross-hair lines. Align on
edge of the angle with a
cross-hair line. Set the angle
counter to ABS mode and
establish a datum on the
edge by setting the counter
to zero.
2 Feed the stage in the X-axis
direction as shown on the
left.
3
Rotate the protractor screen
to align the other edge of the
angle with the same
cross-hair line used in (1).
The measured angle is
displayed on the angle
counter.
3 sec.
3 sec.
3 - 18 No.99MBA043A
