2. Installation and Setup
2.2.2 Installing the cross-travel stage and connecting the Linear Scale cables
(for PJ-A3010F-200)

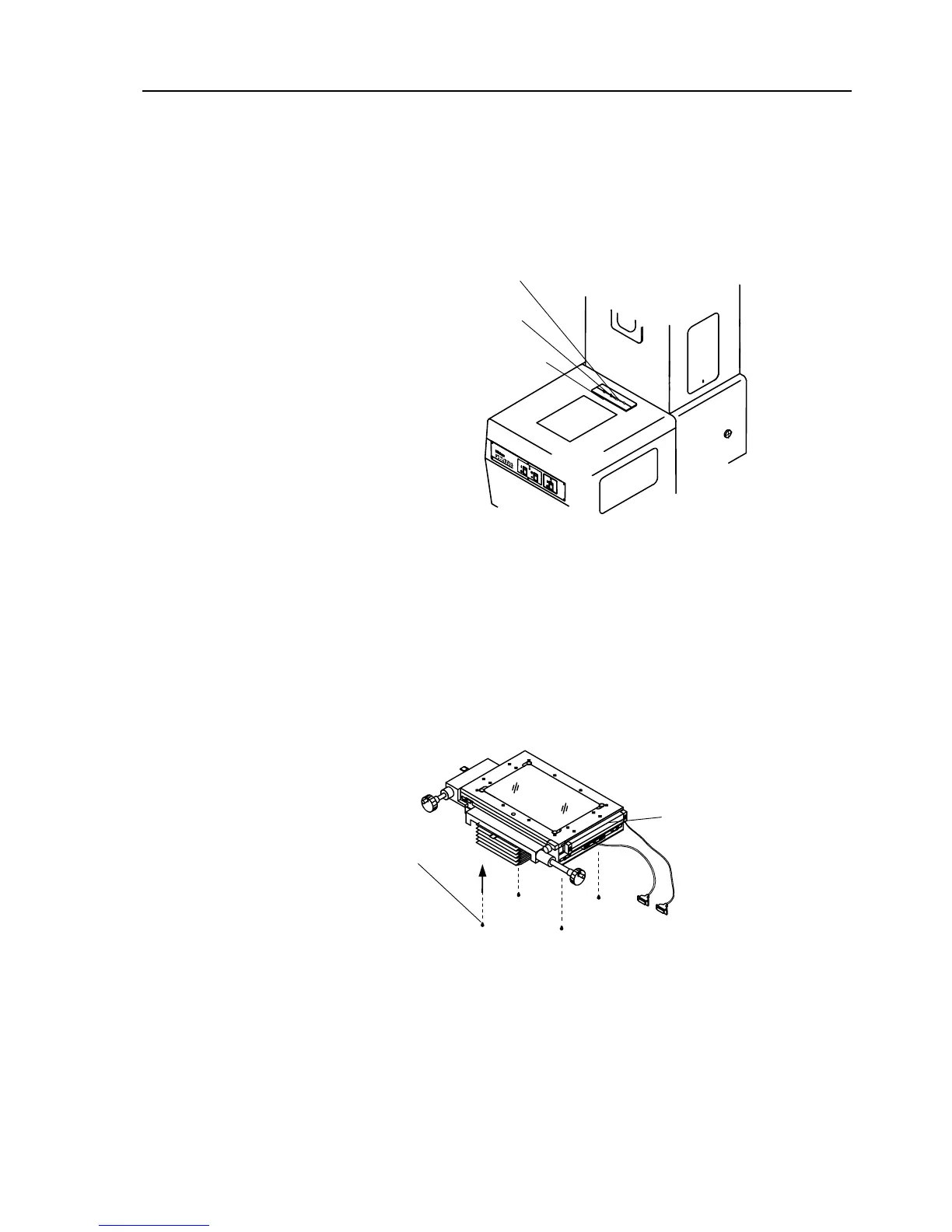

1. Remove the cable outlet cover.
Cable outlet cover
Y-axis
X-axis
2. Gently place the cross travel stage on the cross travel stage mount. Slide the
moving parts to the left and right to align the screw holes, then use the four
hex-socket head screws supplied to temporarily fix the cross travel stage in
place.
Hex-socket
head screw
Connector for
Linear encoder
Linear encoder
3. Rotate the focusing wheel to raise the cross-travel stage as far as it will go.
No.99MBA043A 2 - 7
