4. Connecting the Digimatic Head cables (for PJ-A3005D-50)

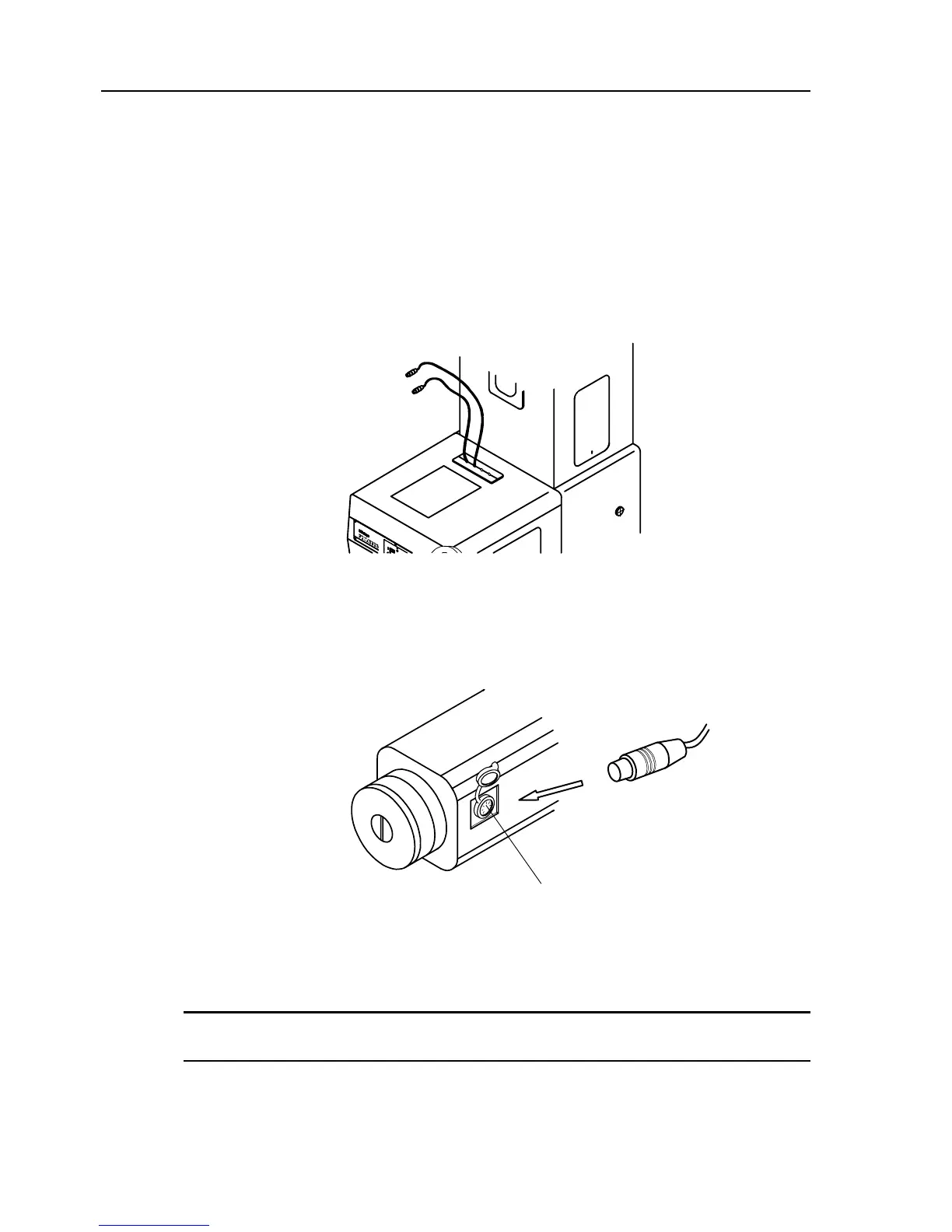

Remove the dust-prevention cap from the output connector on a side of the Digimatic
Head. Connect the cable for the counter to the output connector.
Output connector
Confirm sufficiently to connect so that the connection of X-axis and Y-axis may be not
wrong.
NOTE
